Search › Model › TGN61

TGN61

Toyota FORTUNER · 2005 · 4,218 parts · 239 categories

4,218 items

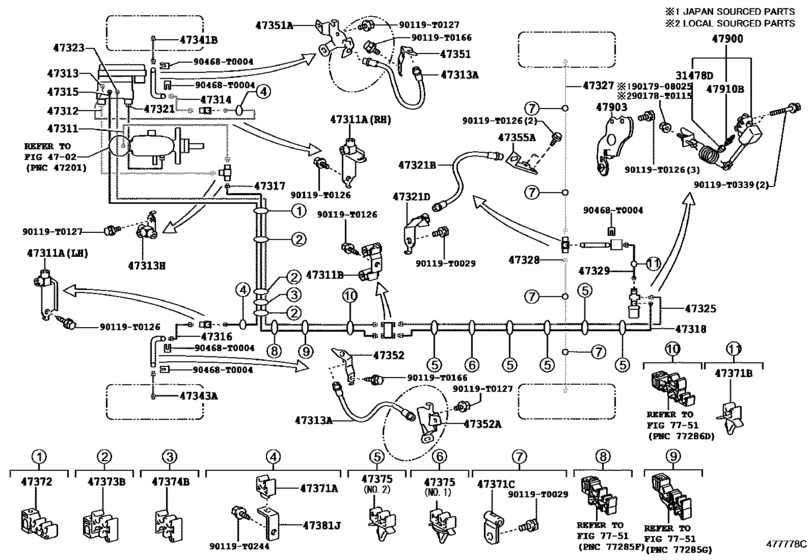

Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN) 52

#	OEM	Part name
31478	31478-0D040	Cap, Bleeder Plug(For Front Disc Brake)
47311	47311-0K010	Tube, Front Brake, No.1
47311	90412-10251	Way(For Front Brake Tube)
47311	90412-10252	Way(For Front Brake Tube)
47311	90412-10253	Way, No.1(For Front Brake Tube)
47312	47312-0K010	Tube, Front Brake, No.2
47313	47313-0K010	Tube, Front Brake, No.3
47313	90080-94029	Hose, Flexible, No.1(For Front)
47313	90413-10309	Way, No.3(For Front Brake Tube)
47314	47314-0K030	Tube, Front Brake, No.4
47315	47315-0K010	Tube, Front Brake, No.5
47316	47316-0K030	Tube, Front Brake, No.6
47317	47317-0K010	Tube, Front Brake, No.7
47318	47318-0K090	Tube, Front Brake, No.8
47321	47321-0K010	Tube, Rear Brake, No.1
47321	90947-T2012	Hose, Flexible(For Rear Brake Tube)
47321	90413-10310	Way, No.1(For Rear Brake Tube)
47323	47323-0K010	Tube, Rear Brake, No.3
47325	47325-0K140	Tube, Rear Brake, No.5
47327	47327-0K060	Tube, Rear Brake, No.7
47328	47328-0K060	Tube, Rear Brake, No.8
47329	47329-0K030	Tube, Rear Brake, No.9
47341	47341-0K010	Tube, Wheel Cylinder, Front Rh No.1
47341	47341-0K030	Tube, Wheel Cylinder, Front Rh No.1
47343	47343-0K010	Tube, Wheel Cylinder, Front Lh No.1
47343	47343-0K030	Tube, Wheel Cylinder, Front Lh No.1
47351	47351-0K010	Bracket, Flexible Hose(For Front Rh)
47351	47353-0K020	Bracket, Flexible Hose, Front Rh No.1
47352	47352-0K030	Bracket, Flexible Hose(For Front Lh)
47352	47354-0K020	Bracket, Flexible Hose, Front Lh No.1
47355	47355-0K020	Bracket, Flexible Hose, No.5
47371	90949-T1011	Clamp, Brake Tube, No.1
47371	90949-T1007	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.6
47371	90461-T0001	Clamp, Brake Tube, No.7
47372	90949-T1014	Clamp, Brake Tube, No.2
47373	90949-T1008	Clamp, Brake Tube, No.3
47374	90949-T1009	Clamp, Brake Tube, No.4
47375	90469-T0007	Clamp, Brake Tube, No.5
47375	90949-T1006	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5
47381	90949-T2001	Bracket, Brake Tube Clamp, No.2
47900	47900-0K050	Valve Assy, Load Sensing W/spring
47903	47903-0K020	Bracket Sub-Assy, Loadsensing Valve
47910	47547-27030	Plug, Bleeder(For Front Disc Brake)
90119	90119-T0029	Bolt (For Transmission Control Cable Bracket)
90119	90119-T0126	BOLT WWASHER
90119	90119-T0127	New Genuine Part
90119	90119-T0166	BOLT WWASHER
90119	90119-T0244	BOLT WWASHER
90119	90119-T0339	New Genuine Part
90178	90178-T0115	New Genuine Part
90468	90468-T0004	CLIP
9017908025	90179-08025	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
31478-0D040	Cap, Bleeder Plug(For Front Disc Brake)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47311-0K010	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47312-0K010	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47313-0K010	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47314-0K030	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47315-0K010	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47316-0K030	Tube, Front Brake, No.6	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47317-0K010	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47318-0K090	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47321-0K010	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47323-0K010	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47325-0K140	Tube, Rear Brake, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47327-0K060	Tube, Rear Brake, No.7	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47328-0K060	Tube, Rear Brake, No.8	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47329-0K030	Tube, Rear Brake, No.9	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47341-0K010	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47341-0K030	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47343-0K010	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47343-0K030	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47351-0K010	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47352-0K030	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47353-0K020	Bracket, Flexible Hose, Front Rh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47354-0K020	Bracket, Flexible Hose, Front Lh No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47355-0K020	Bracket, Flexible Hose, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47547-27030	Plug, Bleeder(For Front Disc Brake)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47900-0K050	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
47903-0K020	Bracket Sub-Assy, Loadsensing Valve	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90080-94029	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90119-T0029	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90119-T0126	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90119-T0127	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90119-T0166	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90119-T0244	BOLT WWASHER	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90119-T0339	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90178-T0115	New Genuine Part	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90179-08025	Nut, Cap(For Cylinder Head Cover)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90412-10251	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90412-10252	Way(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90412-10253	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90413-10309	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90413-10310	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90461-T0001	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90468-T0004	CLIP	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90469-T0007	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90947-T2012	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90949-T1006	Clamp, Brake Tube, No.8 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90949-T1007	Clamp, Brake Tube, No.9 - BRAKE TUBE, NO.6	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90949-T1008	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90949-T1009	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90949-T1011	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90949-T1014	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
90949-T2001	Bracket, Brake Tube Clamp, No.2	Brake Tube & Clamp ([07.2011 - ] W(ABS) (1107- )KUN51..5F..TH ; (1107- )KUN60,TGN6 1..RHD..SR ; (1107- )KUN51..RHD. .IDSUV,SUVW..GEN ; (1107- )KUN50,61,TGN51..GEN,IDN,IND,MA,PKN)
