Search › Model › TGN51

TGN51

Toyota FORTUNER · 2005 · 4,328 parts · 224 categories

4,328 items

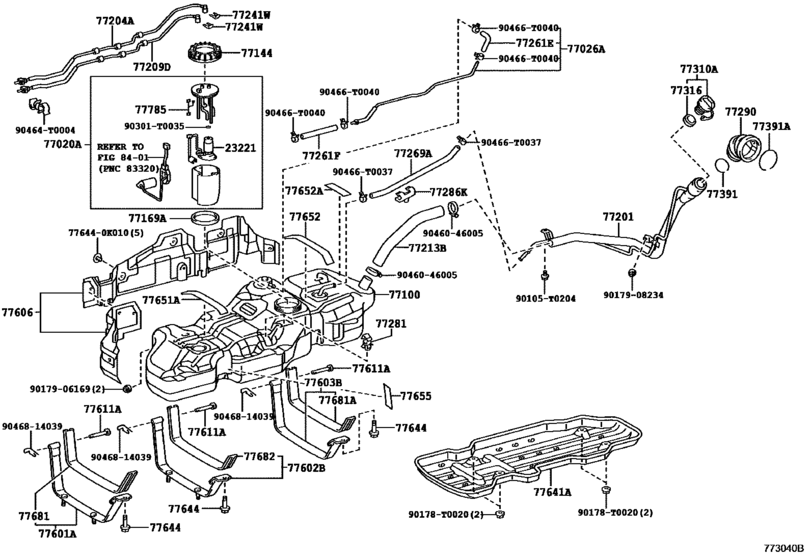

Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA) 49

#	OEM	Part name
23221	23220-0C051	Pump, Fuel
77020	77020-0K140	Tube Assy, Fuel Suction W/pump & Gage
77026	77026-0K020	Tube Sub-Assy, Fuel Evaporation, No.1
77100	77001-0K260	Tank Assy, Fuel
77144	77144-0K010	Retainer, Fuel Pump Gauge
77169	77169-0K010	Gasket, Fuel Suction Tube Set
77201	77201-0K132	Pipe Sub-Assy, Fuel Tank Inlet
77204	77204-0K030	Tube, Fuel Tank Return
77209	77209-0K030	Tube Sub-Assy, Fuel Tank Main
77213	77213-0K070	Hose, Fuel Tank To Filler Pipe
77241	77241-33011	Clip, Tube Joint
77261	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77261	95337-06020	Hose, Differential Pressure Control
77269	77269-0K030	Hose, Fuel Tank Breather
77281	77281-0K070	Bracket, Fuel Main Tube, No.1
77286	77286-0K120	Clamp, Fuel Tube, No.2
77290	77291-0K060	Shield Assy, Fuel Tank Filler Pipe
77310	77300-52030	Cap Assy, Fuel Tank
77316	77316-52040	Gasket, Fuel Tank Cap
77391	77371-35010	Ring, Fuel Tank Filler Pipe Shield
77391	77391-0K010	Ring, Fuel Inlet Box
77391	77391-0K020	Ring, Fuel Inlet Box
77601	77601-0K130	Band Sub-Assy, Fuel Tank, No.1
77602	77602-0K120	Band Sub-Assy, Fuel Tank, No.1 Lh
77603	77603-0K040	Band Sub-Assy, Fuel Tank, No.2 Rh
77606	77606-0K010	Protector Sub-Assy, Fuel Tank, No.1
77611	77653-0K041	Pin (For Fuel Tank Band)
77641	77641-0K040	Protector, Fuel Tank, No.1
77644	77644-35030	Bolt, Fuel Tank
77651	77651-0K030	Cushion, Fuel Tank, No.1
77652	77652-0K030	Cushion, Fuel Tank, No.1
77652	77652-0K040	Cushion, Fuel Tank, No.2
77655	77653-0K050	Cushion, Fuel Tank, No.3
77681	77681-0K080	Seat, Fuel Tank Band, Rh
77681	77681-0K100	Seat, Fuel Tank Band
77682	77681-0K090	Seat, Fuel Tank Band, Lh
77785	77785-0K030	Harness, Fuel Pump
77785	77785-0K031	Harness, Fuel Pump
90105	90105-T0204	New Genuine Part
90178	90178-T0020	New Genuine Part
90301	90301-T0035	Ring, O(For Fuel Pump)
90464	90464-T0004	New Genuine Part
90466	90466-T0037	CLIP HOSE
90466	90466-T0040	Clip(For Fuel Hose No.2)
776440	77644-0K010	Bracket, Fuel Tank
9017906169	90179-06169	Nut
9017908234	90179-08234	NUT
9046046005	90460-46005	Clamp (For Fuel Filler Pipe)
9046814039	90468-14039	CLIP

OEM	Part name	Category
23220-0C051	Pump, Fuel	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77001-0K260	Tank Assy, Fuel	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77020-0K140	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77026-0K020	Tube Sub-Assy, Fuel Evaporation, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77144-0K010	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77169-0K010	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77201-0K132	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77204-0K030	Tube, Fuel Tank Return	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77209-0K030	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77213-0K070	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77269-0K030	Hose, Fuel Tank Breather	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77281-0K070	Bracket, Fuel Main Tube, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77286-0K120	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77291-0K060	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77300-52030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77316-52040	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77371-35010	Ring, Fuel Tank Filler Pipe Shield	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77391-0K010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77391-0K020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77601-0K130	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77602-0K120	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77603-0K040	Band Sub-Assy, Fuel Tank, No.2 Rh	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77606-0K010	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77641-0K040	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77644-0K010	Bracket, Fuel Tank	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77644-35030	Bolt, Fuel Tank	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77651-0K030	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77652-0K030	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77652-0K040	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77653-0K041	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77653-0K050	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77681-0K080	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77681-0K090	Seat, Fuel Tank Band, Lh	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77681-0K100	Seat, Fuel Tank Band	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77785-0K030	Harness, Fuel Pump	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
77785-0K031	Harness, Fuel Pump	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90105-T0204	New Genuine Part	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90178-T0020	New Genuine Part	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90179-06169	Nut	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90179-08234	NUT	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90301-T0035	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90464-T0004	New Genuine Part	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90466-T0037	CLIP HOSE	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90466-T0040	Clip(For Fuel Hose No.2)	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
90468-14039	CLIP	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([07.2011 - ] FUEL TANK (1107- )GGN50,60 ; (1107- )TGN51,61..HTWC. .CO,EPT,GCC,KZS,LA,SA)
