Search › Model › TGN51

TGN51

Toyota FORTUNER · 2005 · 4,328 parts · 224 categories

4,328 items

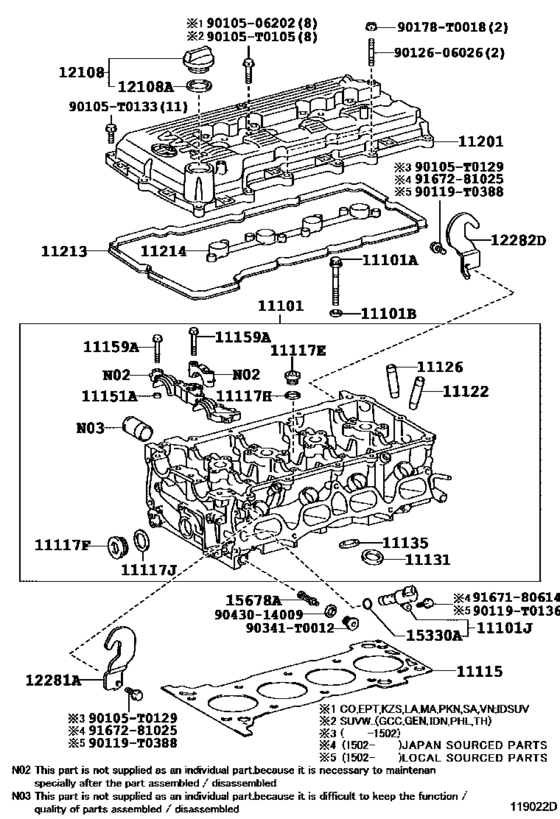

Cylinder Head ([07.2011 - ] (1107- )2TRFE) 50

#	OEM	Part name
11101	11101-0C040	Head Sub-Assy, Cylinder
11101	11101-0C042	Head Sub-Assy, Cylinder
11101	11101-0C041	Head Sub-Assy, Cylinder
11101	90910-02187	Bolt(For Cylinder Head Set)
11101	90560-T0015	Washer, Plate(For Cylinder Head Set)
11101	15330-0C010	Valve Assy, Camshaft Timing Oil Control
11101	15330-75020	Valve Assy, Camshaft Timing Oil Control
11101	15330-75030	Valve Assy, Camshaft Timing Oil Control
11115	11115-0C021	Gasket, Cylinder Head
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90341-T0009	Plug, W/head Straight Screw, No.2
11117	90430-T0010	Gasket(For Water Hole)
11117	90430-32004	Gasket(For Cylinder Head Screw Plug)
11122	11122-75020	Bush, Intake Valve Guide
11122	11123-75020	Bush, Intake Valve Guide
11131	11131-0C020	Seat, Intake Valve
11131	11131-0C021	Seat, Intake Valve
11131	11132-75080	Seat, Intake Valve
11131	11132-75081	Seat, Intake Valve
11135	11135-0C020	Seat, Exhaust Valve
11135	11136-75100	Seat, Exhaust Valve
11151	90253-T0004	Pin, Ring(For Camshaft Bearing Cap Setting)
11159	90119-07013	Bolt(For Camshaft Bearing Cap To Housing Rh, No.1)
11159	90119-T0268	Bolt(For Head To Camshaft Bearing Cap)
11201	11201-0C040	Cover Sub-Assy, Cylinder Head
11201	11201-0C041	Cover Sub-Assy, Cylinder Head
11213	11213-0C010	Gasket, Cylinder Head Cover
11213	11213-0C011	Gasket, Cylinder Head Cover
11214	11214-0C010	Gasket, Cylinder Head Cover, No.2
11214	11214-0C011	Gasket, Cylinder Head Cover, No.2
12108	12180-0H020	Cap Sub-Assy, Oil Filler
12108	12180-38010	Cap Sub-Assy, Oil Filler
12108	90080-43027	Gasket(For Oil Filler Cap)
12108	90430-35001	Gasket(For Oil Filler Cap)
12281	12281-0C010	Hanger, Engine, No.1
15330	90068-14041	Ring, O(For Cam Timing Oil Control Valve)
15330	90099-14137	Ring, O(For Cam Timing Oil Control Valve)
15678	15678-0C010	Filter, Oil Control Valve
90105	90105-T0105	New Genuine Part
90105	90105-T0129	New Genuine Part
90105	90105-T0133	New Genuine Part
90119	90119-T0136	New Genuine Part
90119	90119-T0388	Bolt, Washer
90178	90178-T0018	NUT FLANGE
90341	90341-T0012	Plug, W/head Taper Screw, No.2
9010506202	90105-06202	Bolt(For Cylinder Head Cover)
9012606026	90126-06026	Bolt, Stud(Manifold To Throttle Body)
9043014009	90430-14009	Gasket(For Cylinder Head Screw Plug)
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167281025	91672-81025	Bolt, Center Support Bearing Bracket

OEM	Part name	Category
11101-0C040	Head Sub-Assy, Cylinder	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11101-0C041	Head Sub-Assy, Cylinder	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11101-0C042	Head Sub-Assy, Cylinder	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11115-0C021	Gasket, Cylinder Head	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11122-75020	Bush, Intake Valve Guide	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11123-75020	Bush, Intake Valve Guide	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11131-0C020	Seat, Intake Valve	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11131-0C021	Seat, Intake Valve	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11132-75080	Seat, Intake Valve	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11132-75081	Seat, Intake Valve	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11135-0C020	Seat, Exhaust Valve	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11136-75100	Seat, Exhaust Valve	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11201-0C040	Cover Sub-Assy, Cylinder Head	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11201-0C041	Cover Sub-Assy, Cylinder Head	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11213-0C010	Gasket, Cylinder Head Cover	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11213-0C011	Gasket, Cylinder Head Cover	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11214-0C010	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
11214-0C011	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
12180-0H020	Cap Sub-Assy, Oil Filler	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
12180-38010	Cap Sub-Assy, Oil Filler	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
12281-0C010	Hanger, Engine, No.1	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
15330-0C010	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
15330-75020	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
15330-75030	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
15678-0C010	Filter, Oil Control Valve	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90068-14041	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90080-43027	Gasket(For Oil Filler Cap)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90099-14137	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90105-06202	Bolt(For Cylinder Head Cover)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90105-T0105	New Genuine Part	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90105-T0129	New Genuine Part	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90105-T0133	New Genuine Part	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90119-07013	Bolt(For Camshaft Bearing Cap To Housing Rh, No.1)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90119-T0136	New Genuine Part	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90119-T0268	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90119-T0388	Bolt, Washer	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90126-06026	Bolt, Stud(Manifold To Throttle Body)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90178-T0018	NUT FLANGE	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90253-T0004	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90341-T0009	Plug, W/head Straight Screw, No.2	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90341-T0012	Plug, W/head Taper Screw, No.2	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90430-14009	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90430-32004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90430-35001	Gasket(For Oil Filler Cap)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90430-T0010	Gasket(For Water Hole)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90560-T0015	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
90910-02187	Bolt(For Cylinder Head Set)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
91672-81025	Bolt, Center Support Bearing Bracket	Cylinder Head ([07.2011 - ] (1107- )2TRFE)
