Search › Model › TGN41
TGN41

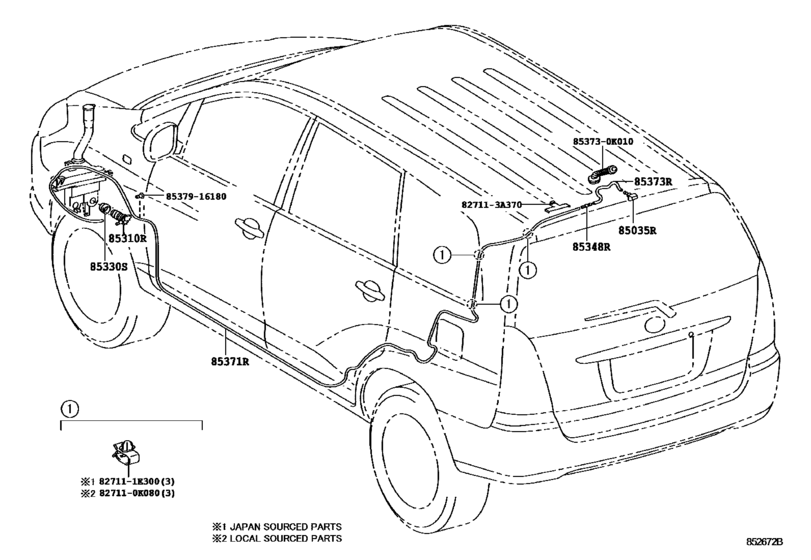

Rear Washer ([07.2011 - ] (1107- )) 11
| # | OEM | Part name |
|---|---|---|
| 85035 | 85391-0K020 | Nozzle Sub-Assy, Rear Washer |
| 85310 | 85330-60160 | Motor Assy, Rear Washer |
| 85330 | 85336-60300 | Bush, Windshield Washer Jar |
| 85348 | 85375-10260 | Joint, Windshield Washer Hose, No.1 |
| 85371 | 90068-59044 | Hose, Rear Washer (From Motor To Joint) |
| 85373 | 90068-59043 | Hose, Rear Washer (From Joint To Nozzle) |
| 827110 | 82711-0K080 | Wire, Fuse To Fuse(for Combustion Heater) |
| 827113 | 82711-3A370 | Wire, Fuse To Fuse(for Combustion Heater) |
| 853730 | 85373-0K010 | Grommet, Rear Washer Hose |
| 8537916180 | 85379-16180 | Grommet, Washer, A |
| 9223372036854775807 | 82711-1E300 | Clamp, Wiring Harness |
| OEM | Part name | Category |
|---|---|---|
| 82711-0K080 | Wire, Fuse To Fuse(for Combustion Heater) | Rear Washer ([07.2011 - ] (1107- )) |
| 82711-1E300 | Clamp, Wiring Harness | Rear Washer ([07.2011 - ] (1107- )) |
| 82711-3A370 | Wire, Fuse To Fuse(for Combustion Heater) | Rear Washer ([07.2011 - ] (1107- )) |
| 85330-60160 | Motor Assy, Rear Washer | Rear Washer ([07.2011 - ] (1107- )) |
| 85336-60300 | Bush, Windshield Washer Jar | Rear Washer ([07.2011 - ] (1107- )) |
| 85373-0K010 | Grommet, Rear Washer Hose | Rear Washer ([07.2011 - ] (1107- )) |
| 85375-10260 | Joint, Windshield Washer Hose, No.1 | Rear Washer ([07.2011 - ] (1107- )) |
| 85379-16180 | Grommet, Washer, A | Rear Washer ([07.2011 - ] (1107- )) |
| 85391-0K020 | Nozzle Sub-Assy, Rear Washer | Rear Washer ([07.2011 - ] (1107- )) |
| 90068-59043 | Hose, Rear Washer (From Joint To Nozzle) | Rear Washer ([07.2011 - ] (1107- )) |
| 90068-59044 | Hose, Rear Washer (From Motor To Joint) | Rear Washer ([07.2011 - ] (1107- )) |
