Search › Model › TGN41

TGN41

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 4,048 parts · 228 categories

4,048 items

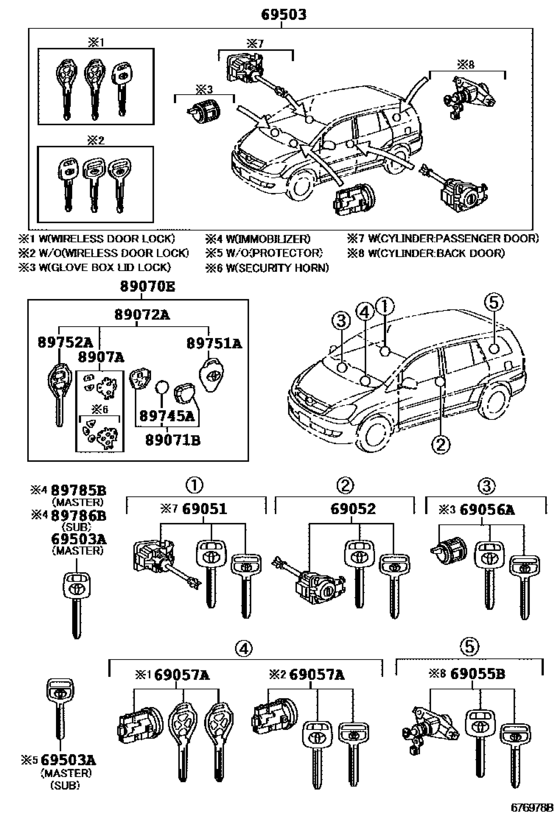

Lock Cylinder Set ([07.2011 - ] (1107- )LHD) 25

#	OEM	Part name
69051	69051-0K011	Cylinder & Key Set, Door Lock, Rh
69052	69052-0K010	Cylinder & Key Set, Door Lock, Lh
69056	69056-0K010	Cylinder & Key Set, Glove Compartment Lock
69057	69057-0K052	Cylinder & Key Set, Ignition Switch Lock
69057	69057-0K160	Cylinder & Key Set, Ignition Switch Lock
69503	69005-0K032	Cylinder Set, Lock
69503	69005-0K530	Cylinder Set, Lock
69503	69005-0K880	Cylinder Set, Lock
89070	89070-0K670	Transmitter Assy, Door Control
89070	89070-0K890	Transmitter Assy, Door Control
89070	89070-0K671	Transmitter Assy, Door Control
89070	89070-0K672	Transmitter Assy, Door Control
89070	89070-0K673	Transmitter Assy, Door Control
89071	89071-71051	Module Set, Transmitter Sub-Assy, Door Control
89071	89071-71052	Module Set, Transmitter Sub-Assy, Door Control
89072	89072-0K340	Housing Set, Door Control Transmitter
89072	89072-0K341	Housing Set, Door Control Transmitter
89072	89072-0K342	Housing Set, Door Control Transmitter
89072	89072-0K343	Housing Set, Door Control Transmitter
89751	89751-0K070	Cover, Transmitter Housing
89751	89751-0K072	Cover, Transmitter Housing
89751	89751-0K071	Cover, Transmitter Housing
89752	89752-0K070	Case, Transmitter Housing
89785	89785-08040	Transmitter, Transponder Key Master
89786	89786-08040	Transmitter, Transponder Key Sub

OEM	Part name	Category
69005-0K032	Cylinder Set, Lock	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
69005-0K530	Cylinder Set, Lock	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
69005-0K880	Cylinder Set, Lock	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
69051-0K011	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
69052-0K010	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
69056-0K010	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
69057-0K052	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
69057-0K160	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89070-0K670	Transmitter Assy, Door Control	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89070-0K671	Transmitter Assy, Door Control	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89070-0K672	Transmitter Assy, Door Control	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89070-0K673	Transmitter Assy, Door Control	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89070-0K890	Transmitter Assy, Door Control	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89071-71051	Module Set, Transmitter Sub-Assy, Door Control	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89071-71052	Module Set, Transmitter Sub-Assy, Door Control	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89072-0K340	Housing Set, Door Control Transmitter	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89072-0K341	Housing Set, Door Control Transmitter	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89072-0K342	Housing Set, Door Control Transmitter	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89072-0K343	Housing Set, Door Control Transmitter	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89751-0K070	Cover, Transmitter Housing	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89751-0K071	Cover, Transmitter Housing	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89751-0K072	Cover, Transmitter Housing	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89752-0K070	Case, Transmitter Housing	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89785-08040	Transmitter, Transponder Key Master	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
89786-08040	Transmitter, Transponder Key Sub	Lock Cylinder Set ([07.2011 - ] (1107- )LHD)
