Search › Model › TGN41

TGN41

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 4,048 parts · 228 categories

4,048 items

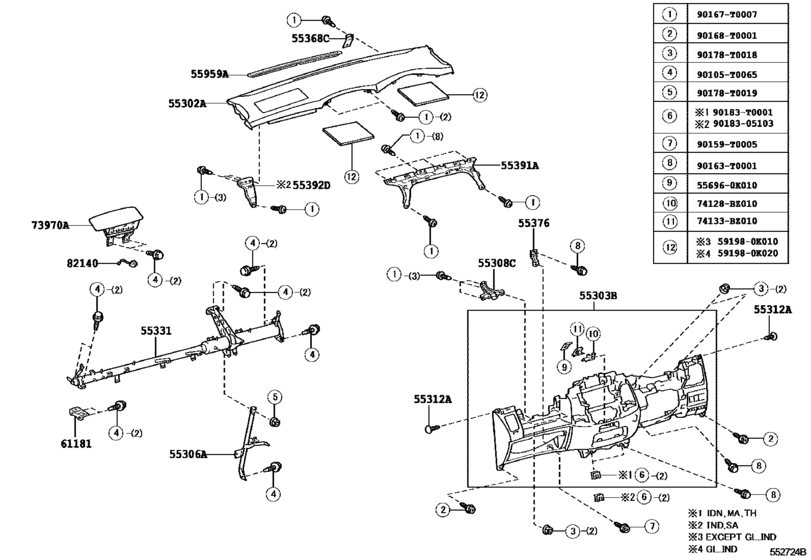

Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD) 57

#	OEM	Part name
55302	55302-0K230-E0	Panel Sub-Assy, Instrument, Upper
55303	55303-0K050-E0	Panel Sub-Assy, Instrument, Lower
55306	55306-0K050	Brace Sub-Assy, Instrument Panel, No.1
55308	55308-0K030	Bracket Sub-Assy, Instrument Panel, Center
55312	90467-T0002-E0	Clip, Instrument Panel
55321	55308-0K050	Bracket, Instrument Panel, No.1
55331	55330-0K100	Reinforcement, Instrument Panel
55368	55368-0K020	Bracket, Meter Mounting
55376	55376-0K010	Bracket, Instrument Panel Mounting, No.1
55391	55391-0K010	Panel, Instrument Panel Reinf, Inner No.1
55391	55391-0K030	Panel, Instrument Panel Reinf, Inner No.1
55392	55392-0K010	Panel, Instrument Panel Reinforcement, Inn No.2
55402	55402-71010	Pad Sub-Assy, Instrument Panel, Lower Rh
55403	55403-71010	Pad Sub-Assy, Instrument Panel, Lower Lh
55411	55411-0K080-E0	Panel, Instrument Cluster Finish, No.1
55413	55413-0K010-E1	Panel, Instrument Cluster Finish, Center Lower
55420	55420-0K300-E0	Panel Assy, Instrument Cluster Finish, Center
55420	55420-0K510-E0	Panel Assy, Instrument Cluster Finish, Center
55422	55422-0K040-E0	Panel, Instrument Cluster Finish, Lower
55445	55445-0K040-E1	Plate, Instrument Panel Finish
55446	55446-0K080-E0	Base, Switch Hole, No.1
55471	55471-0K010	Moulding, Instrument Cluster, No.1
55472	55472-0K010	Moulding, Instrument Cluster, No.2
55510	55550-0K020-E0	Door Assy, Glove Compartment
55539	55539-0K010-E0	Cover, Spare Switch Hole
55560	55506-33030-E1	Lock Assy, Glove Compartment Door
55650	55650-0K060-E0	Register Assy, Instrument Panel, No.1
55660	55660-0K040-E0	Register Assy, Instrument Panel, No.2
55661	55661-0K100-E0	Bezel, Instrument Panel Register
55662	55662-0K070-E0	Bezel, Instrument Panel Resister, No.2
55670	55670-0K030-E0	Register Assy, Instrument Panel, No.3
55680	55680-0K030-E0	Register Assy, Instrument Panel, No.4
61181	61182-0K010	Bracket, Instrument Panel Side
73970	73970-0K031-E1	Air Bag Assy, Instrument Panel Passenger
74128	74128-BZ010	Bezel, Front Ash Receptacle
74133	74133-BZ010	Seal, Front Ash Receptacle
82140	82140-0K010	Wire Assy, Instrument Panel
90105	90105-T0065	New Genuine Part
90159	90159-T0005	New Genuine Part
90161	90161-T0002	SCREW
90163	90163-T0001	SCREW HEXAGON TAPPI
90167	90167-T0007	Screw,pan Tapping
90167	90167-T0022	New Genuine Part
90168	90168-T0001	New Genuine Part
90178	90178-T0018	NUT FLANGE
90178	90178-T0019	Nut (For Connecting Rod Swivel)
90183	90183-T0001	New Genuine Part
90467	90467-T0015	Clip(For Spare Wheel Cover)
90467	90467-T0037	New Genuine Part
90541	90541-T0007	90541T0007
90541	90541-T0009	New Genuine Part
556960	55696-0K010	New Genuine Part
591980	59198-0K010	Seal, Noise Shutter
591980	59198-0K020	Seal, Noise Shutter
9018305103	90183-05103	NUT
9054103015	90541-03015	Cushion, Instrument Panel Box
9054105020	90541-05020	Cushion(For Glove Compartment)

OEM	Part name	Category
55302-0K230-E0	Panel Sub-Assy, Instrument, Upper	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55303-0K050-E0	Panel Sub-Assy, Instrument, Lower	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55306-0K050	Brace Sub-Assy, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55308-0K030	Bracket Sub-Assy, Instrument Panel, Center	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55308-0K050	Bracket, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55330-0K100	Reinforcement, Instrument Panel	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55368-0K020	Bracket, Meter Mounting	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55376-0K010	Bracket, Instrument Panel Mounting, No.1	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55391-0K010	Panel, Instrument Panel Reinf, Inner No.1	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55391-0K030	Panel, Instrument Panel Reinf, Inner No.1	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55392-0K010	Panel, Instrument Panel Reinforcement, Inn No.2	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55402-71010	Pad Sub-Assy, Instrument Panel, Lower Rh	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55403-71010	Pad Sub-Assy, Instrument Panel, Lower Lh	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55411-0K080-E0	Panel, Instrument Cluster Finish, No.1	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55413-0K010-E1	Panel, Instrument Cluster Finish, Center Lower	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55420-0K300-E0	Panel Assy, Instrument Cluster Finish, Center	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55420-0K510-E0	Panel Assy, Instrument Cluster Finish, Center	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55422-0K040-E0	Panel, Instrument Cluster Finish, Lower	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55445-0K040-E1	Plate, Instrument Panel Finish	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55446-0K080-E0	Base, Switch Hole, No.1	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55471-0K010	Moulding, Instrument Cluster, No.1	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55472-0K010	Moulding, Instrument Cluster, No.2	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55506-33030-E1	Lock Assy, Glove Compartment Door	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55539-0K010-E0	Cover, Spare Switch Hole	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55550-0K020-E0	Door Assy, Glove Compartment	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55650-0K060-E0	Register Assy, Instrument Panel, No.1	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55660-0K040-E0	Register Assy, Instrument Panel, No.2	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55661-0K100-E0	Bezel, Instrument Panel Register	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55662-0K070-E0	Bezel, Instrument Panel Resister, No.2	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55670-0K030-E0	Register Assy, Instrument Panel, No.3	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55680-0K030-E0	Register Assy, Instrument Panel, No.4	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
55696-0K010	New Genuine Part	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
59198-0K010	Seal, Noise Shutter	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
59198-0K020	Seal, Noise Shutter	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
61182-0K010	Bracket, Instrument Panel Side	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
73970-0K031-E1	Air Bag Assy, Instrument Panel Passenger	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
74128-BZ010	Bezel, Front Ash Receptacle	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
74133-BZ010	Seal, Front Ash Receptacle	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
82140-0K010	Wire Assy, Instrument Panel	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90105-T0065	New Genuine Part	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90159-T0005	New Genuine Part	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90161-T0002	SCREW	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90163-T0001	SCREW HEXAGON TAPPI	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90167-T0007	Screw,pan Tapping	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90167-T0022	New Genuine Part	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90168-T0001	New Genuine Part	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90178-T0018	NUT FLANGE	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90178-T0019	Nut (For Connecting Rod Swivel)	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90183-05103	NUT	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90183-T0001	New Genuine Part	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90467-T0002-E0	Clip, Instrument Panel	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90467-T0015	Clip(For Spare Wheel Cover)	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90467-T0037	New Genuine Part	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90541-03015	Cushion, Instrument Panel Box	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90541-05020	Cushion(For Glove Compartment)	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90541-T0007	90541T0007	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
90541-T0009	New Genuine Part	Instrument Panel & Glove Compartment ([07.2011 - ] (1107- )RHD)
