Search › Model › TGN41
TGN41

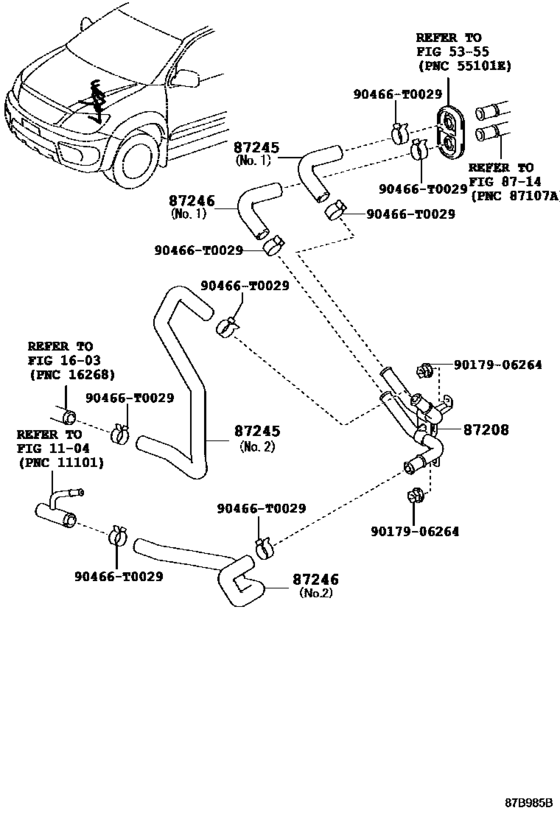

Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )SA) 6
| # | OEM | Part name |
|---|---|---|
| 87208 | 87208-0K220 | Pipe Sub-Assy, Heater Water |
| 87245 | 87245-0K550 | Hose, Heater Water, Inlet |
| 87245 | 87245-0KA00 | Hose, Heater Water, Inlet |
| 87246 | 87245-0K090 | Hose, Heater Water, Outlet |
| 90466 | 90466-T0029 | CLIP HOSE |
| 9017906264 | 90179-06264 | NUT, WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 87208-0K220 | Pipe Sub-Assy, Heater Water | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )SA) |
| 87245-0K090 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )SA) |
| 87245-0K550 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )SA) |
| 87245-0KA00 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )SA) |
| 90179-06264 | NUT, WWASHER | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )SA) |
| 90466-T0029 | CLIP HOSE | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )SA) |
