TGN41

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 4,048 parts · 228 categories

← Back to categories

4,048 items

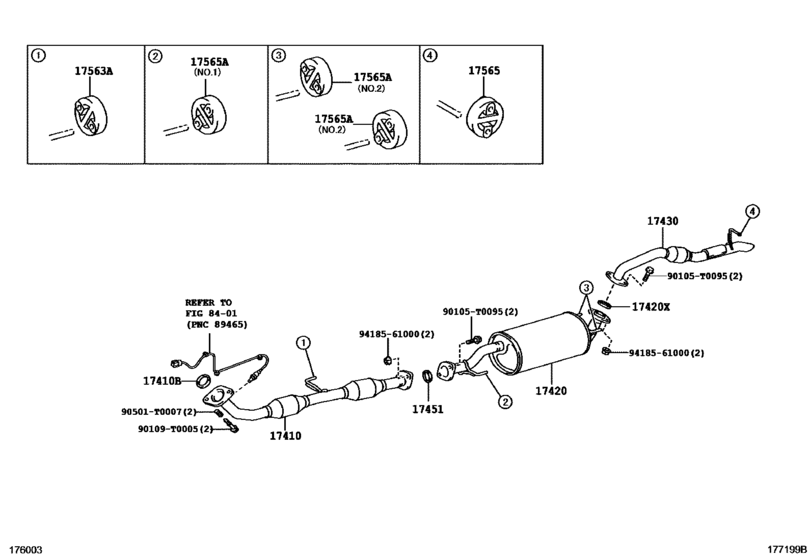

Exhaust Pipe ([07.2011 - ] (1107- )2TRFE) 11

#	OEM	Part name
17410	17401-0C410	Pipe Assy, Exhaust, Front
17410	17451-0C010	Gasket, Exhaust Pipe
17420	17403-0C060	Pipe Assy, Exhaust, Center
17420	90917-T6002	Gasket, Exhaust Pipe, Center
17430	17405-0L151	Pipe Assy, Exhaust, Tail
17563	17565-0L050	Support, Exhaust Pipe, No.3
17565	17565-0L020	Support, Exhaust Pipe, No.3
90105	90105-T0095	BOLTFLANGE
90109	90109-T0005	BOLT
90501	90501-T0007	SPRING
9418561000	94185-61000	NUTLOCK

OEM	Part name	Category
17401-0C410	Pipe Assy, Exhaust, Front	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
17403-0C060	Pipe Assy, Exhaust, Center	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
17405-0L151	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
17451-0C010	Gasket, Exhaust Pipe	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
17565-0L020	Support, Exhaust Pipe, No.3	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
17565-0L050	Support, Exhaust Pipe, No.3	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
90105-T0095	BOLTFLANGE	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
90109-T0005	BOLT	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
90501-T0007	SPRING	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
90917-T6002	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)
94185-61000	NUTLOCK	Exhaust Pipe ([07.2011 - ] (1107- )2TRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 228
Collected: 2026-08-04
