Search › Model › TGN41
TGN41

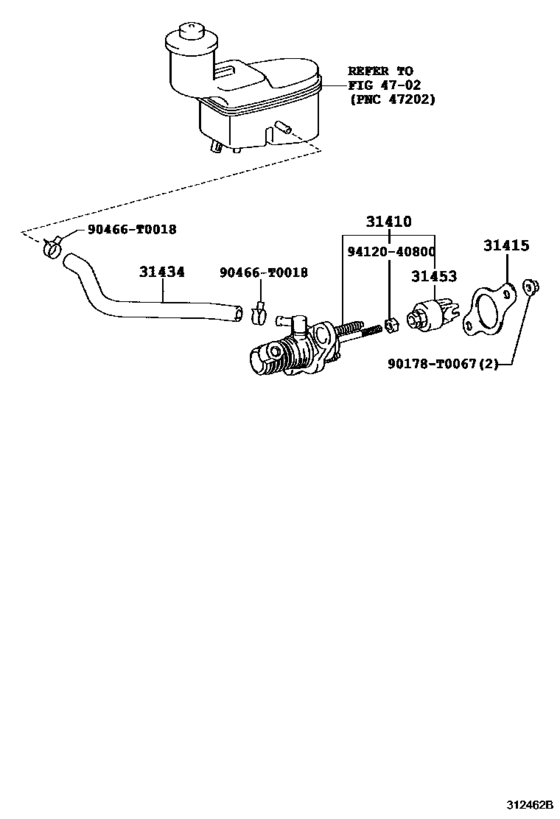

Clutch Master Cylinder ([07.2011 - ] (1107- )5F) 8
| # | OEM | Part name |
|---|---|---|
| 31410 | 31420-0K013 | Cylinder Assy, Clutch Master |
| 31410 | 31420-0K014 | CYLINDER ASSY MASTE |
| 31415 | 31415-0K010 | Gasket, Clutch Master Cylinder |
| 31434 | 31434-0K030 | Tube, Clutch Reservoir |
| 31453 | 31404-0K010 | Clevis, Clutch Master Cylinder Push Rod |
| 90178 | 90178-T0067 | New Genuine Part |
| 90466 | 90466-T0018 | Clip(For Union To Connector Tube Hose) |
| 9412040800 | 94120-40800 | Nut(For Clutch Pedal Stopper) |
| OEM | Part name | Category |
|---|---|---|
| 31404-0K010 | Clevis, Clutch Master Cylinder Push Rod | Clutch Master Cylinder ([07.2011 - ] (1107- )5F) |
| 31415-0K010 | Gasket, Clutch Master Cylinder | Clutch Master Cylinder ([07.2011 - ] (1107- )5F) |
| 31420-0K013 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([07.2011 - ] (1107- )5F) |
| 31420-0K014 | CYLINDER ASSY MASTE | Clutch Master Cylinder ([07.2011 - ] (1107- )5F) |
| 31434-0K030 | Tube, Clutch Reservoir | Clutch Master Cylinder ([07.2011 - ] (1107- )5F) |
| 90178-T0067 | New Genuine Part | Clutch Master Cylinder ([07.2011 - ] (1107- )5F) |
| 90466-T0018 | Clip(For Union To Connector Tube Hose) | Clutch Master Cylinder ([07.2011 - ] (1107- )5F) |
| 94120-40800 | Nut(For Clutch Pedal Stopper) | Clutch Master Cylinder ([07.2011 - ] (1107- )5F) |
