TGN40

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 3,110 parts · 194 categories

← Back to categories

3,110 items

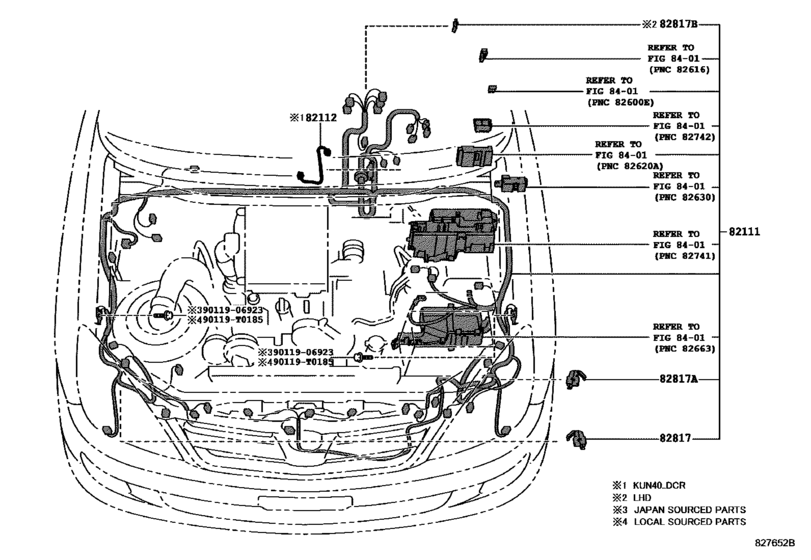

Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- )) 10

#	OEM	Part name
82111	82111-0KJ62	Wire, Engine Room Main
82111	82115-0KQ30	Wire, Engine Room Main
82111	82115-0KQ31	Wire, Engine Room Main
82111	82111-0KJ63	Wire, Engine Room Main
82111	82111-0KJ64	Wire, Engine Room Main
82817	82817-0K110	Protector, Wiring Harness, No.1
82817	82817-0K120	Protector, Wiring Harness, No.2
82817	82817-0K130	Protector, Wiring Harness, No.3
90119	90119-T0185	New Genuine Part
9011906923	90119-06923	BOLT WWASHER

OEM	Part name	Category
82111-0KJ62	Wire, Engine Room Main	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
82111-0KJ63	Wire, Engine Room Main	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
82111-0KJ64	Wire, Engine Room Main	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
82115-0KQ30	Wire, Engine Room Main	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
82115-0KQ31	Wire, Engine Room Main	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
82817-0K110	Protector, Wiring Harness, No.1	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
82817-0K120	Protector, Wiring Harness, No.2	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
82817-0K130	Protector, Wiring Harness, No.3	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
90119-06923	BOLT WWASHER	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
90119-T0185	New Genuine Part	Wiring & Clamp ([07.2011 - ] ENGINE ROOM (1107- ))
