Search › Model › TGN40

TGN40

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2004 · 3,110 parts · 194 categories

3,110 items

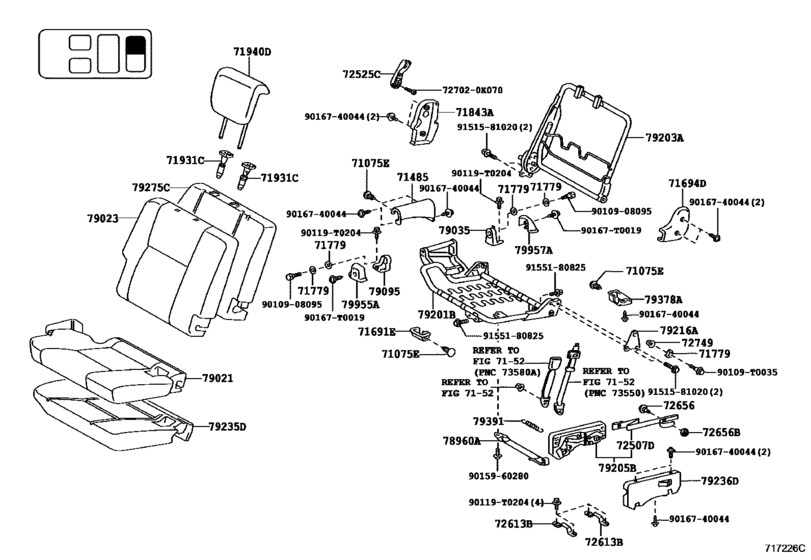

Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- )) 57

#	OEM	Part name
71075	90467-05147-E2	Clip(For Rear Seat)
71485	71485-0K020-E0	Cover, Rear Seat Hinge
71691	71691-0K010-E0	Cover, Rear Seat Cushion Hinge, No.1
71694	71694-0K010-E0	Cover, Rear Seat Cushion Hinge, Outer Lh
71779	71779-0K020	Cover, Rear Seat Side Hinge Male, Lh
71843	71843-0K010-E0	Cover, Rear Seat Reclining, No.2 Rh
71931	71930-02050-E1	Support, Front Seat Headrest
71931	71931-02030-E1	Support, Front Seat Headrest
71940	71940-0KA20-E4	Headrest Assy, Rear No.2 Seat, Rh
71940	71940-0KA21-E0	Headrest Assy, Rear No.2 Seat, Rh
71940	71940-0K540-E0	Headrest Assy, Rear No.2 Seat, Rh
72507	72507-0K010	Handle Sub-Assy, No.2 Seat Reclining Release
72525	72525-0K010-E0	Handle, Reclining Adjuster Release, No.1 Rh
72613	72613-0K020	Striker, Rear Seat Lock
72656	72661-0K030	Button, Rear Seat Back Stop Release
72656	72661-0K030-A0	Guide, Rear Seat Back Stop Rod
72656	72661-0K030-B0	Button, Rear Seat Back Stop Release
72656	72661-0K030-B1	Guide, Rear Seat Back Stop Rod
72656	72661-0K030-E0	Button, Rear Seat Back Stop Release
72656	72661-0K030-E1	Button, Rear Seat Back Stop Release
72656	72661-0K040	Button, Rear Seat Back Stop Release
72656	72661-0K040-A0	Guide, Rear Seat Back Stop Rod
72656	72661-0K040-B0	Button, Rear Seat Back Stop Release
72656	72661-0K040-B1	Guide, Rear Seat Back Stop Rod
72656	72661-0K040-E0	Button, Rear Seat Back Stop Release
72656	72661-0K040-E1	Button, Rear Seat Back Stop Release
72749	72749-0K010	Spacer, Rear Seat Reclining
78960	78960-0K010-E0	Band Assy, No.2 Fold Seat Stopper, No.2
79021	79021-0K390-E2	Cover Sub-Assy, No.2 Seat Cushion, Rh
79021	79021-0K390-E3	Cover Sub-Assy, No.2 Seat Cushion, Rh
79021	79021-0K250-E0	Cover Sub-Assy, No.2 Seat Cushion, Rh
79023	79023-0K340-E2	Cover Sub-Assy, No.2 Seat Back, Rh
79023	79023-0K340-E4	Cover Sub-Assy, No.2 Seat Back, Rh
79023	79023-0K220-E0	Cover Sub-Assy, No.2 Seat Back, Rh
79023	79023-0K220-E2	Cover Sub-Assy, No.2 Seat Back, Rh
79035	79035-0K010	Leg Sub Assy, No.3 Seat Outer Rear, Rh
79095	79095-0K030	Leg Sub Assy, No.3 Seat Outer Front, Rh
79201	79201-0K010	Frame Sub-Assy, No.2 Seat Cushion, Rh
79203	79203-0K010	Frame Sub-Assy, No.2 Seat Back, Rh
79205	79030-0K010	Leg Sub-Assy, No.2 Seat, Rh
79216	79216-0K010	Plate, No.2 Seat Cushion
79235	79235-0K010	Pad, No.2 Seat Cushion, Rh
79236	79236-0K040-E0	Cover, Rear Seat Leg, Rh (For Rh Seat)
79275	79275-0K010	Pad, No.2 Seat Back, Rh
79378	79378-0K010-E0	Cover, No.3 Seat Cushion Hinge, Rh
79391	79391-0K010	Spring, Rear Seat Cushion
79955	79955-0K010-E0	Cover, Rear Seat Front Bracket, Rh
79957	79957-0K010-E0	Cover, Rear Seat Rear Bracket, Rh
90109	90109-T0035	New Genuine Part
90119	90119-T0204	BOLT WWASHER
90167	90167-T0019	SCREW PAN TAPPING
727020	72702-0K070	Bracket Sub-assy, Rear Seat Back Striker
9010908095	90109-08095	BOLT
9015960280	90159-60280	New Genuine Part
9016740044	90167-40044	BOLT
9151581020	91515-81020	New Genuine Part
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)

OEM	Part name	Category
71485-0K020-E0	Cover, Rear Seat Hinge	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
71691-0K010-E0	Cover, Rear Seat Cushion Hinge, No.1	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
71694-0K010-E0	Cover, Rear Seat Cushion Hinge, Outer Lh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
71779-0K020	Cover, Rear Seat Side Hinge Male, Lh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
71843-0K010-E0	Cover, Rear Seat Reclining, No.2 Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
71930-02050-E1	Support, Front Seat Headrest	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
71931-02030-E1	Support, Front Seat Headrest	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
71940-0K540-E0	Headrest Assy, Rear No.2 Seat, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
71940-0KA20-E4	Headrest Assy, Rear No.2 Seat, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
71940-0KA21-E0	Headrest Assy, Rear No.2 Seat, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72507-0K010	Handle Sub-Assy, No.2 Seat Reclining Release	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72525-0K010-E0	Handle, Reclining Adjuster Release, No.1 Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72613-0K020	Striker, Rear Seat Lock	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K030	Button, Rear Seat Back Stop Release	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K030-A0	Guide, Rear Seat Back Stop Rod	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K030-B0	Button, Rear Seat Back Stop Release	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K030-B1	Guide, Rear Seat Back Stop Rod	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K030-E0	Button, Rear Seat Back Stop Release	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K030-E1	Button, Rear Seat Back Stop Release	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K040	Button, Rear Seat Back Stop Release	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K040-A0	Guide, Rear Seat Back Stop Rod	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K040-B0	Button, Rear Seat Back Stop Release	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K040-B1	Guide, Rear Seat Back Stop Rod	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K040-E0	Button, Rear Seat Back Stop Release	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72661-0K040-E1	Button, Rear Seat Back Stop Release	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72702-0K070	Bracket Sub-assy, Rear Seat Back Striker	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
72749-0K010	Spacer, Rear Seat Reclining	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
78960-0K010-E0	Band Assy, No.2 Fold Seat Stopper, No.2	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79021-0K250-E0	Cover Sub-Assy, No.2 Seat Cushion, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79021-0K390-E2	Cover Sub-Assy, No.2 Seat Cushion, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79021-0K390-E3	Cover Sub-Assy, No.2 Seat Cushion, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79023-0K220-E0	Cover Sub-Assy, No.2 Seat Back, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79023-0K220-E2	Cover Sub-Assy, No.2 Seat Back, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79023-0K340-E2	Cover Sub-Assy, No.2 Seat Back, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79023-0K340-E4	Cover Sub-Assy, No.2 Seat Back, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79030-0K010	Leg Sub-Assy, No.2 Seat, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79035-0K010	Leg Sub Assy, No.3 Seat Outer Rear, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79095-0K030	Leg Sub Assy, No.3 Seat Outer Front, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79201-0K010	Frame Sub-Assy, No.2 Seat Cushion, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79203-0K010	Frame Sub-Assy, No.2 Seat Back, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79216-0K010	Plate, No.2 Seat Cushion	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79235-0K010	Pad, No.2 Seat Cushion, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79236-0K040-E0	Cover, Rear Seat Leg, Rh (For Rh Seat)	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79275-0K010	Pad, No.2 Seat Back, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79378-0K010-E0	Cover, No.3 Seat Cushion Hinge, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79391-0K010	Spring, Rear Seat Cushion	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79955-0K010-E0	Cover, Rear Seat Front Bracket, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
79957-0K010-E0	Cover, Rear Seat Rear Bracket, Rh	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
90109-08095	BOLT	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
90109-T0035	New Genuine Part	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
90119-T0204	BOLT WWASHER	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
90159-60280	New Genuine Part	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
90167-40044	BOLT	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
90167-T0019	SCREW PAN TAPPING	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
90467-05147-E2	Clip(For Rear Seat)	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
91515-81020	New Genuine Part	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
91551-80825	Bolt(For Cylinder Head Set Sub)	Seat & Seat Track ([07.2011 - ] REAR NO.2 SEAT(RH) (1107- ))
