Search › Model › TGN40
TGN40

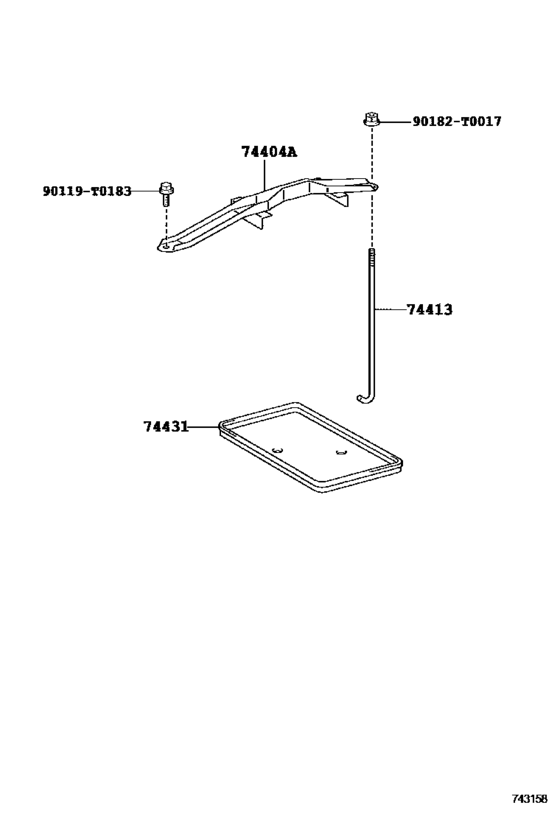

Battery Carrier ([07.2011 - ] (1107- )) 7
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-0K080 | Clamp Sub-Assy, Battery |
| 74404 | 74404-0K090 | Clamp Sub-Assy, Battery |
| 74413 | 74451-0K050 | Bolt, Battery Clamp |
| 74431 | 74431-0K060 | Tray, Battery |
| 74431 | 74431-0K070 | Tray, Battery |
| 90119 | 90119-T0183 | BOLT WWASHER |
| 90182 | 90182-T0017 | NUT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 74404-0K080 | Clamp Sub-Assy, Battery | Battery Carrier ([07.2011 - ] (1107- )) |
| 74404-0K090 | Clamp Sub-Assy, Battery | Battery Carrier ([07.2011 - ] (1107- )) |
| 74431-0K060 | Tray, Battery | Battery Carrier ([07.2011 - ] (1107- )) |
| 74431-0K070 | Tray, Battery | Battery Carrier ([07.2011 - ] (1107- )) |
| 74451-0K050 | Bolt, Battery Clamp | Battery Carrier ([07.2011 - ] (1107- )) |
| 90119-T0183 | BOLT WWASHER | Battery Carrier ([07.2011 - ] (1107- )) |
| 90182-T0017 | NUT WWASHER | Battery Carrier ([07.2011 - ] (1107- )) |
