Search › Model › TGN168

TGN168

Toyota FORTUNER · 2016 · 3,853 parts · 223 categories

3,853 items

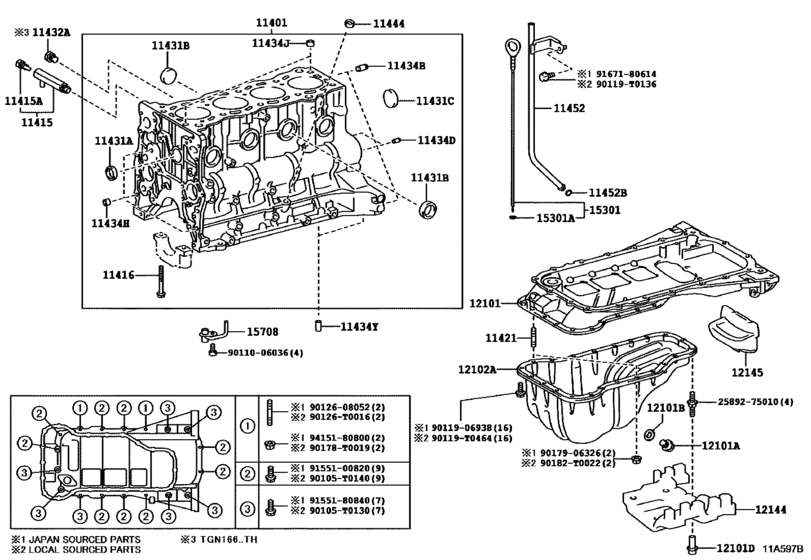

Cylinder Block ([07.2015 - ] (1507- )2TRFE) 52

#	OEM	Part name
11401	11401-09412	Block Sub-Assy, Cylinder
11415	90910-T9002	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	90910-T9001	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-02179	Bolt(For Crankshaft Bearing Cap Set)
11416	90910-T2002	Bolt(For Crankshaft Bearing Cap Set)
11421	90126-06028	Bolt, Stud(For Oil Pan)
11431	90331-T0004	Plug, Tight, No.3
11431	96411-63000	Plug, Tight
11431	90331-T0005	Plug, Tight, No.5 - TIGHT, NO.2(FOR CYLINDER BLOCK)
11431	96411-63500	Plug, Tight
11431	90331-T0007	Plug, Tight, No.3(For Cylinder Block)
11431	96411-64000	Plug, Tight, No.2
11432	90345-53009	Plug, W/head Taper Screw, No.1
11434	90250-T0018	Pin, Straight(For Clutch Housing Set)
11434	90250-T0017	Pin, Straight(For Engine Rear Oil Seal)
11434	90253-T0005	Pin, Ring (For Timing Belt Cover Set)
11434	90253-T0007	Pin, Ring (For Cylinder Head Set)
11434	90253-T0006	Pin, Straight(For Oil Pan)
11444	11444-75020	Plug, Hole
11452	11409-0C030	Guide, Oil Level Gage
11452	11409-0C050	Guide, Oil Level Gage
11452	90301-T0025	Ring, O(For Oil Level Gage Guide)
12101	12101-0C030	Pan Sub-Assy, Oil
12101	90341-12032	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12101	12129-75010	Plug No.1(For Oil Pan)
12102	12102-0C010	Pan Sub-Assy, Oil, No.2
12102	12102-0C020	Pan Sub-Assy, Oil, No.2
12144	12144-0C020	Silencer, Oil Pan Cover
12145	12145-0C020	Silencer, Oil Pan Cover, No.2
15301	15301-0C020	Gage Sub-Assy, Oil Level
15301	15301-0C030	Gage Sub-Assy, Oil Level
15301	90301-T0018	Ring, O(For Oil Level Gage)
15708	15708-0C010	Nozzle Sub-Assy, Oil, No.1
15708	15708-75020	Nozzle Sub-Assy, Oil, No.1
90105	90105-T0130	Bolt(For Head To Camshaft Bearing Cap)
90105	90105-T0140	New Genuine Part
90119	90119-T0136	New Genuine Part
90119	90119-T0464	BOLT WWASHER
90126	90126-T0016	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
90178	90178-T0019	Nut (For Connecting Rod Swivel)
90182	90182-T0022	New Genuine Part
2589275010	25892-75010	New Genuine Part
9011006036	90110-06036	BOLT HEXAGON SOCKET
9011906938	90119-06938	BOLT WWASHER
9012608052	90126-08052	Bolt, Stud(For Oil Pan)
9017906326	90179-06326	NUT W-WASHER
9017906326	90182-A0010	New Genuine Part
9155100820	91551-00820	Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180840	91551-80840	Bolt(For Head To Camshaft Bearing Cap)
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
11401-09412	Block Sub-Assy, Cylinder	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
11409-0C030	Guide, Oil Level Gage	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
11409-0C050	Guide, Oil Level Gage	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
11444-75020	Plug, Hole	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
12101-0C030	Pan Sub-Assy, Oil	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
12102-0C010	Pan Sub-Assy, Oil, No.2	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
12102-0C020	Pan Sub-Assy, Oil, No.2	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
12129-75010	Plug No.1(For Oil Pan)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
12144-0C020	Silencer, Oil Pan Cover	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
12145-0C020	Silencer, Oil Pan Cover, No.2	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
15301-0C020	Gage Sub-Assy, Oil Level	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
15301-0C030	Gage Sub-Assy, Oil Level	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
15708-0C010	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
15708-75020	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
25892-75010	New Genuine Part	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90105-T0130	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90105-T0140	New Genuine Part	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90110-06036	BOLT HEXAGON SOCKET	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90119-06938	BOLT WWASHER	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90119-T0136	New Genuine Part	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90119-T0464	BOLT WWASHER	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90126-06028	Bolt, Stud(For Oil Pan)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90126-08052	Bolt, Stud(For Oil Pan)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90126-T0016	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90178-T0019	Nut (For Connecting Rod Swivel)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90179-06326	NUT W-WASHER	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90182-A0010	New Genuine Part	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90182-T0022	New Genuine Part	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90250-T0017	Pin, Straight(For Engine Rear Oil Seal)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90250-T0018	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90253-T0005	Pin, Ring (For Timing Belt Cover Set)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90253-T0006	Pin, Straight(For Oil Pan)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90253-T0007	Pin, Ring (For Cylinder Head Set)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90301-T0018	Ring, O(For Oil Level Gage)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90301-T0025	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90331-T0004	Plug, Tight, No.3	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90331-T0005	Plug, Tight, No.5 - TIGHT, NO.2(FOR CYLINDER BLOCK)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90331-T0007	Plug, Tight, No.3(For Cylinder Block)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90341-12032	Plug(For Oil Pan Drain)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90345-53009	Plug, W/head Taper Screw, No.1	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90910-02179	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90910-T2002	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90910-T9001	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
90910-T9002	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
91551-00820	Bolt, Hexagon (For Rear Spring Seat Bolt)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
91551-80840	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
94151-80800	Nut (For Transmission Control Cable)	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
96411-63000	Plug, Tight	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
96411-63500	Plug, Tight	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
96411-64000	Plug, Tight, No.2	Cylinder Block ([07.2015 - ] (1507- )2TRFE)
