Search › Model › TGN166

TGN166

Toyota FORTUNER · 2015 · 4,092 parts · 236 categories

4,092 items

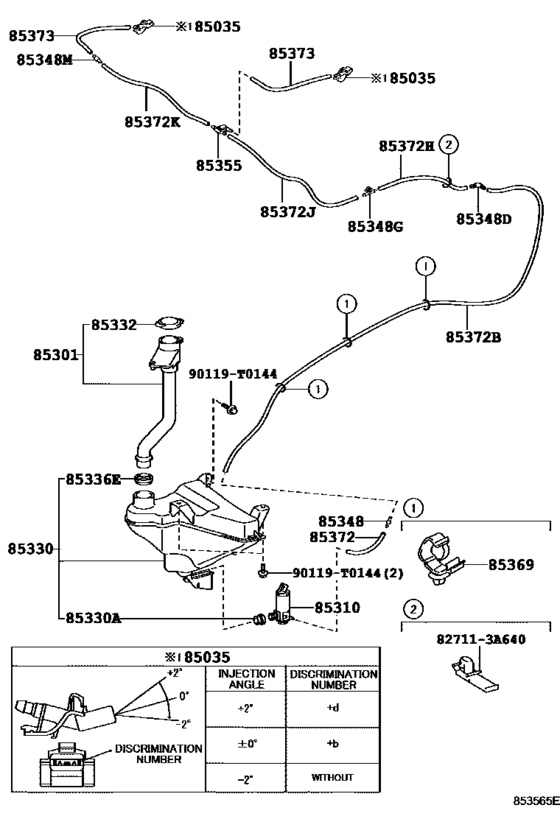

Windshield Washer ([10.2016 - ] (1610- )IND) 23

#	OEM	Part name
85035	85381-0K070	Nozzle Sub-Assy, Washer
85035	85381-0K080	Nozzle Sub-Assy, Washer
85035	85381-0K090	Nozzle Sub-Assy, Washer
85301	85301-0K100	Inlet Sub-Assy, Washer
85310	85330-0K050	Motor And Pump Assy, Windshield Washer
85330	85315-0K240	Jar Assy, Windshield Washer
85330	85336-30160	Bush, Windshield Washer Jar
85332	85316-0K100	Cap, Windshield Washer Jar
85336	90099-32089	Bush, Headlamp Cleaner Washer Jar
85336	90068-32002	Bush, Windshield Washer Jar
85348	85375-02330	Joint, Windshield Washer Hose, No.1 - WINDSHIELD WASHER HOSE, NO.2
85348	85377-0D040	Joint, Windshield Washer Elbow, No.1
85348	85375-17050	Joint, Windshield Washer Hose, No.1
85355	85321-28020	Valve Sub-Assy, Washer
85369	82711-0K070	Clamp
85372	90069-46081	Hose, Windshield Washer (From Joint To Joint), No.1
85372	90069-46080	Hose, Windshield Washer (From Joint To Joint), No.2
85372	90069-46079	Hose, Windshield Washer (From Joint To Joint), No.3
85372	90069-46078	Hose, Windshield Washer (From Joint To Joint), No.4
85372	90069-46077	Hose, Windshield Washer (From Joint To Joint), No.5
85373	90068-33251	Hose, Windshield Washer (From Joint To Nozzle)
90119	90119-T0144	Bolt, W/washer(For Engine Under Cover)
827113	82711-3A640	Clamp No.1 (For Windseield Washer)

OEM	Part name	Category
82711-0K070	Clamp	Windshield Washer ([10.2016 - ] (1610- )IND)
82711-3A640	Clamp No.1 (For Windseield Washer)	Windshield Washer ([10.2016 - ] (1610- )IND)
85301-0K100	Inlet Sub-Assy, Washer	Windshield Washer ([10.2016 - ] (1610- )IND)
85315-0K240	Jar Assy, Windshield Washer	Windshield Washer ([10.2016 - ] (1610- )IND)
85316-0K100	Cap, Windshield Washer Jar	Windshield Washer ([10.2016 - ] (1610- )IND)
85321-28020	Valve Sub-Assy, Washer	Windshield Washer ([10.2016 - ] (1610- )IND)
85330-0K050	Motor And Pump Assy, Windshield Washer	Windshield Washer ([10.2016 - ] (1610- )IND)
85336-30160	Bush, Windshield Washer Jar	Windshield Washer ([10.2016 - ] (1610- )IND)
85375-02330	Joint, Windshield Washer Hose, No.1 - WINDSHIELD WASHER HOSE, NO.2	Windshield Washer ([10.2016 - ] (1610- )IND)
85375-17050	Joint, Windshield Washer Hose, No.1	Windshield Washer ([10.2016 - ] (1610- )IND)
85377-0D040	Joint, Windshield Washer Elbow, No.1	Windshield Washer ([10.2016 - ] (1610- )IND)
85381-0K070	Nozzle Sub-Assy, Washer	Windshield Washer ([10.2016 - ] (1610- )IND)
85381-0K080	Nozzle Sub-Assy, Washer	Windshield Washer ([10.2016 - ] (1610- )IND)
85381-0K090	Nozzle Sub-Assy, Washer	Windshield Washer ([10.2016 - ] (1610- )IND)
90068-32002	Bush, Windshield Washer Jar	Windshield Washer ([10.2016 - ] (1610- )IND)
90068-33251	Hose, Windshield Washer (From Joint To Nozzle)	Windshield Washer ([10.2016 - ] (1610- )IND)
90069-46077	Hose, Windshield Washer (From Joint To Joint), No.5	Windshield Washer ([10.2016 - ] (1610- )IND)
90069-46078	Hose, Windshield Washer (From Joint To Joint), No.4	Windshield Washer ([10.2016 - ] (1610- )IND)
90069-46079	Hose, Windshield Washer (From Joint To Joint), No.3	Windshield Washer ([10.2016 - ] (1610- )IND)
90069-46080	Hose, Windshield Washer (From Joint To Joint), No.2	Windshield Washer ([10.2016 - ] (1610- )IND)
90069-46081	Hose, Windshield Washer (From Joint To Joint), No.1	Windshield Washer ([10.2016 - ] (1610- )IND)
90099-32089	Bush, Headlamp Cleaner Washer Jar	Windshield Washer ([10.2016 - ] (1610- )IND)
90119-T0144	Bolt, W/washer(For Engine Under Cover)	Windshield Washer ([10.2016 - ] (1610- )IND)

Source: Public OEM parts-catalog data
Variants: 2 / 19
Category: 236
Collected: 2026-08-03
