TGN166

Toyota FORTUNER · 2015 · 4,092 parts · 236 categories
TGN166 ×

← Back to categories

4,092 items

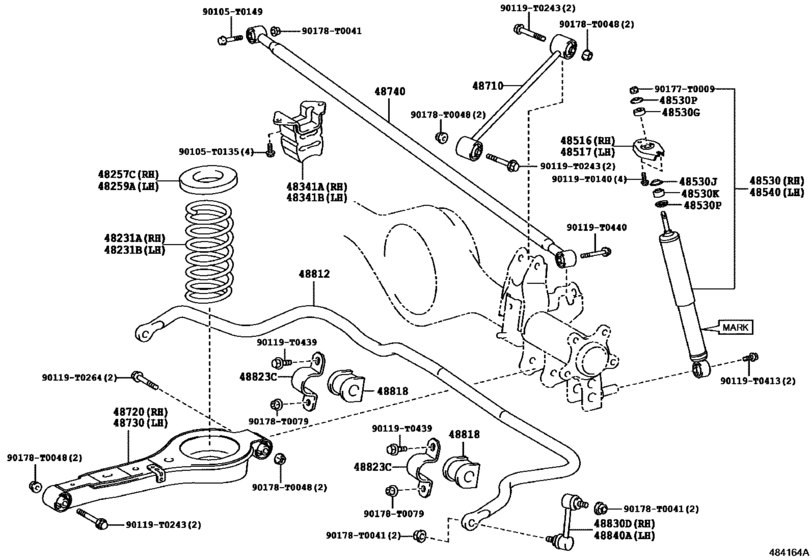

Rear Spring & Shock Absorber ([07.2015 - ] (1507- )) 36
#OEMPart name
48231 48231-0K340 Spring, Coil, Rear Rh
48231 48231-0K380 Spring, Coil, Rear Rh
48257 48257-0K010 Insulator, Rear Coil Spring, Upper Rh
48341 48341-0K110 Bumper, Rear Spring, No.1 Rh
48341 48341-0K140 Bumper, Rear Spring, No.1 Rh
48516 48516-0K010 Bracket, Rear Shock Absorber, Upper Rh
48530 48530-8Z002 Absorber Assy, Shock, Rear
48530 90948-T1007 Cushion, Rear Shock Absorber, No.1
48530 90948-T2005 Retainer, Cushion, No.1(For Rear Shock Absorber)
48530 90948-T1010 Cushion, Rear Shock Absorber, No.2
48530 90948-T2008 Retainer, Cushion, No.2(For Rear Shock Absorber)
48530 90948-T1009 Cushion, Rear Shock Absorber, No.1
48530 90948-T1012 Cushion, Rear Shock Absorber, No.2
48710 48710-0K110 Arm Assy, Upper Control
48710 48710-0K170 Arm Assy, Upper Control
48710 48710-0K180 Arm Assy, Upper Control
48720 48720-0K050 Arm Assy, Lower Control, Rh
48720 48720-0K020 Arm Assy, Lower Control, Rh
48740 48740-0K070 Rod Assy, Rear Lateral Control
48740 48740-0K100 Rod Assy, Rear Lateral Control
48812 48812-0K010 Bar, Stabilizer, Rear
48812 48812-0K050 Bar, Stabilizer, Rear
48818 48818-0K010 Bush, Stabilizer, Rear
48818 48818-0K040 Bush, Stabilizer, Rear
48823 48823-KK010 Cover, Rear Stabilizer Bracket
48830 48830-0K010 Link Assy, Rear Stabilizer, Rh
48830 48830-0K011 LINK ASSY RR STABIL
48830 48830-0K040 Link Assy, Rear Stabilizer, Rh
90105 90105-T0135 New Genuine Part
90105 90105-T0149 New Genuine Part
90119 90119-T0140 New Genuine Part
90119 90119-T0243 New Genuine Part
90177 90177-T0009 New Genuine Part
90178 90178-T0041 NUT FLANGE
90178 90178-T0048 Nut(For Front Support To Front Shock Absorber Rh)
90178 90178-T0079 New Genuine Part
