TGN166

Toyota FORTUNER · 2015 · 4,092 parts · 236 categories
TGN166 ×

← Back to categories

4,092 items

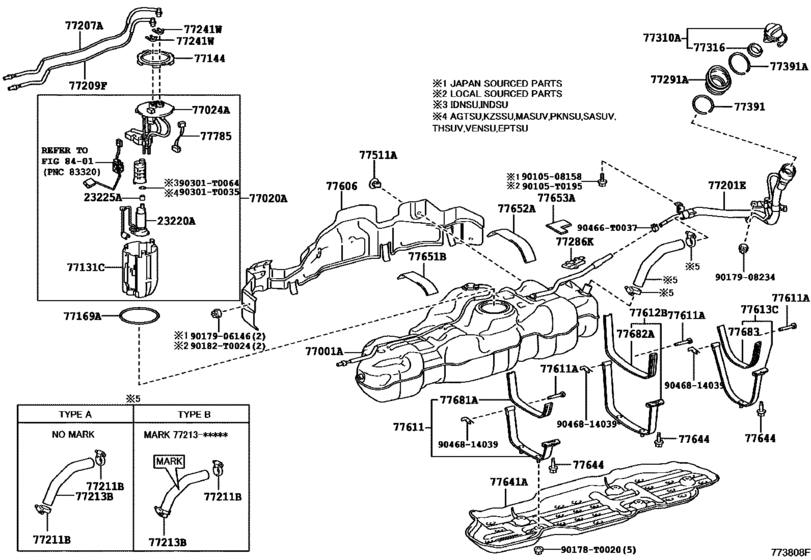

Fuel Tank & Tube ([07.2015 - ] FUEL TANK (1507- )GGN155,165,TGN156,166) 60
#OEMPart name
23220 23220-0C201 Pump Assy, Fuel W/filter
23220 23220-0C211 Pump Assy, Fuel W/filter
23225 23225-0V030 Spacer, Fuel Pump
77001 77001-0K510 Tank Sub-Assy, Fuel
77001 77001-0K500 Tank Sub-Assy, Fuel
77020 77020-0K470 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-0K420 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-0K220 Plate Sub-Assy, Fuel Suction
77024 77024-0K210 Plate Sub-Assy, Fuel Suction
77131 77131-0K100 Sub-Tank, Fuel, No.1
77131 77131-0K120 Sub-Tank, Fuel, No.1
77144 77144-0K040 Retainer, Fuel Pump Gauge
77169 77169-0K030 Gasket, Fuel Suction Tube Set
77201 77201-KK160 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-KK290 Pipe Sub-Assy, Fuel Tank Filler
77207 77204-0K090 Tube Sub-Assy, Fuel Return
77209 77209-0K150 Tube Sub-Assy, Fuel Tank Main
77211 90460-46005 Clamp (For Fuel Filler Pipe)
77213 77213-KK020 Hose, Fuel Tank To Filler Pipe
77213 77213-KK051 Hose, Fuel Tank To Filler Pipe
77241 77241-0K010 Clip, Tube Joint
77286 77286-0K180 Clamp, Fuel Tube, No.2
77291 77291-0K110 Shield, Fuel Tank Filler Pipe
77291 77291-0K130 Shield, Fuel Tank Filler Pipe
77310 77300-0K010 Cap Assy, Fuel Tank
77316 77316-0K020 Gasket, Fuel Tank Cap
77391 77391-0K010 Ring, Fuel Inlet Box
77391 77391-0K110 Ring, Fuel Inlet Box
77511 77644-0K010 Bracket, Fuel Tank
77511 77512-0K010 Bracket, Fuel Tank
77606 77606-0K080 Protector Sub-Assy, Fuel Tank, No.1
77606 77606-0K070 Protector Sub-Assy, Fuel Tank, No.1
77611 77601-KK060 Band, Fuel Tank
77611 77653-0K041 Pin (For Fuel Tank Band)
77612 77602-KK040 Band, Fuel Tank, No.2
77613 77603-KK020 Band, Fuel Tank, No.3
77641 77641-KK020 Protector, Fuel Tank, No.1
77641 77641-KK040 Protector, Fuel Tank, No.1
77644 77644-35030 Bolt, Fuel Tank
77651 77651-0K060 Cushion, Fuel Tank
77651 77651-0K050 Cushion, Fuel Tank
77652 77652-0K070 Cushion, Fuel Tank, No.2
77652 77652-0K060 Cushion, Fuel Tank, No.2
77653 77653-0K120 Cushion, Fuel Tank, No.3
77653 77653-0K110 Cushion, Fuel Tank, No.3
77681 77681-KK030 Seat, Fuel Tank Band
77682 77682-KK020 Seat, Fuel Tank Band, No.2
77683 77683-KK020 Seat, Fuel Tank Band, No.3
77785 77785-0K070 Harness, Fuel Pump
77785 77785-0K090 Harness, Fuel Pump
90105 90105-T0195 New Genuine Part
90178 90178-T0020 New Genuine Part
90182 90182-T0024 New Genuine Part
90301 90301-T0035 Ring, O(For Fuel Pump)
90301 90301-T0064 Ring, O(For Fuel Pump)
90466 90466-T0037 CLIP HOSE
9010508158 90105-08158 Plug(For Fuel Sub-Tank)
9017906146 90179-06146 Nut
9017908234 90179-08234 NUT
9046814039 90468-14039 CLIP
