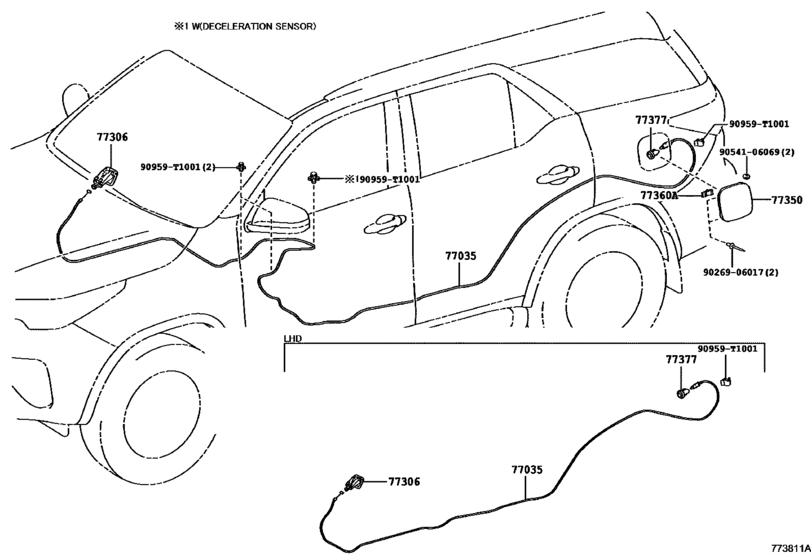

| 77035-0K410 |
Cable Sub-Assy, Fuel Lid Lock Control |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
| 77035-0K530 |
Cable Sub-Assy, Fuel Lid Lock Control |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
| 77306-0K080 |
Lever Sub-Assy, Fuel Lid Lock Open |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
| 77306-0K100 |
Lever Sub-Assy, Fuel Lid Lock Open |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
| 77350-KK080 |
Lid Assy, Fuel Filler Opening |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
| 77360-0K010 |
Spring Assy, Fuel Filler Opening Lid - FUEL FILLER OPENING LID HINGE |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
| 77377-0D080 |
Retainer, Fuel Filler Opening Lid Lock |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
| 90269-06017 |
RIVET |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
| 90541-06069 |
CUSHION |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
| 90959-T1001 |
CLAMP |
Fuel Tank & Tube ([07.2015 - ] FUEL LID OPENER (1507- )) |
