TGN166

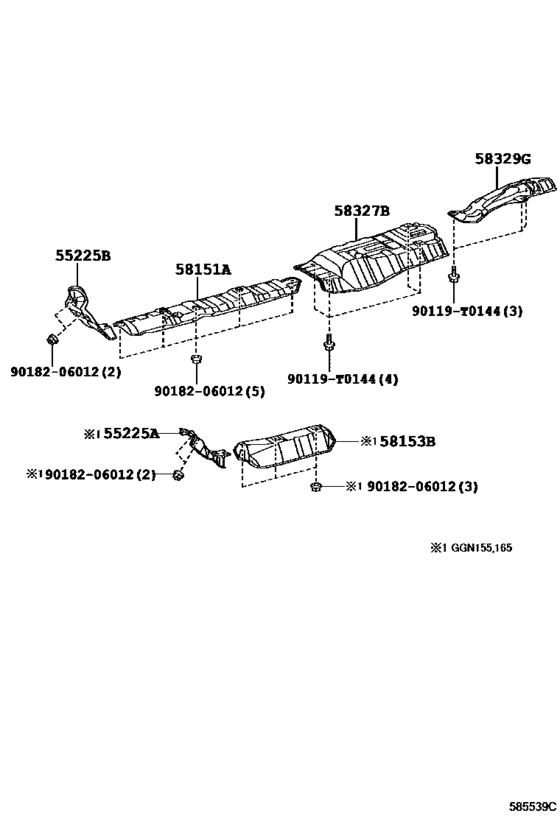

Floor Insulator ([07.2015 - ] (1507- )) 9
| # | OEM | Part name |
|---|---|---|
| 55225 | 55225-KK011 | Insulator, Dash Panel Heat |
| 55225 | 55225-KK010 | Insulator, Dash Panel Heat |
| 58151 | 58151-KK011 | Insulator, Floor Heat, No.1 |
| 58151 | 58151-KK010 | Insulator, Floor Heat, No.1 |
| 58327 | 58327-0K030 | Insulator, Main Muffler Heat |
| 58329 | 58329-0K030 | Insulator, Main Muffler Heat, Rear Upper |
| 58329 | 58329-0K020 | Insulator, Main Muffler Heat, Rear Upper |
| 90119 | 90119-T0144 | Bolt, W/washer(For Engine Under Cover) |
| 9018206012 | 90182-06012 | NUT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 55225-KK010 | Insulator, Dash Panel Heat | Floor Insulator ([07.2015 - ] (1507- )) |
| 55225-KK011 | Insulator, Dash Panel Heat | Floor Insulator ([07.2015 - ] (1507- )) |
| 58151-KK010 | Insulator, Floor Heat, No.1 | Floor Insulator ([07.2015 - ] (1507- )) |
| 58151-KK011 | Insulator, Floor Heat, No.1 | Floor Insulator ([07.2015 - ] (1507- )) |
| 58327-0K030 | Insulator, Main Muffler Heat | Floor Insulator ([07.2015 - ] (1507- )) |
| 58329-0K020 | Insulator, Main Muffler Heat, Rear Upper | Floor Insulator ([07.2015 - ] (1507- )) |
| 58329-0K030 | Insulator, Main Muffler Heat, Rear Upper | Floor Insulator ([07.2015 - ] (1507- )) |
| 90119-T0144 | Bolt, W/washer(For Engine Under Cover) | Floor Insulator ([07.2015 - ] (1507- )) |
| 90182-06012 | NUT WWASHER | Floor Insulator ([07.2015 - ] (1507- )) |
