TGN166

Toyota FORTUNER · 2015 · 4,092 parts · 236 categories

← Back to categories

4,092 items

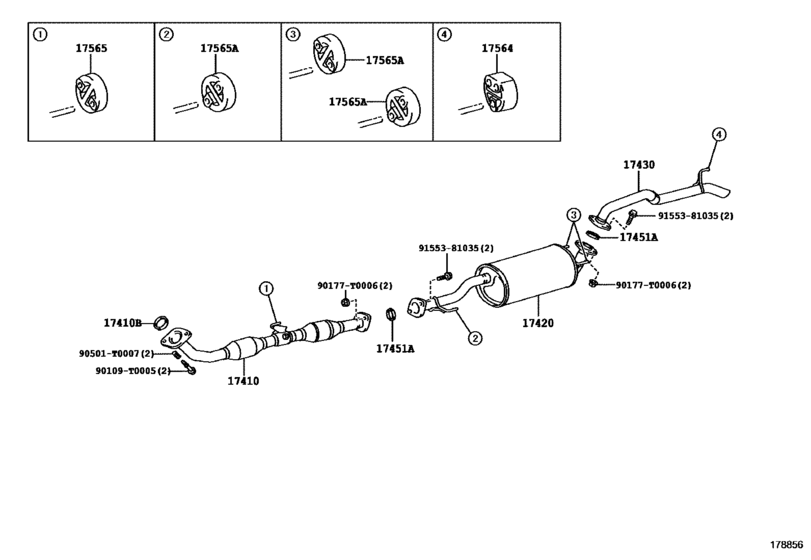

Exhaust Pipe ([07.2015 - ] (1507- )2TRFE) 14

#	OEM	Part name
17410	17401-0C660	Pipe Assy, Exhaust, Front
17410	17451-0L050	Gasket, Exhaust Pipe
17410	17401-0C550	Pipe Assy, Exhaust, Front
17410	17451-0L060	Gasket, Exhaust Pipe
17420	17403-0C130	Pipe Assy, Exhaust, Center
17430	17405-0C160	Pipe Assy, Exhaust, Tail
17451	90917-T6002	Gasket, Exhaust Pipe, Center
17564	17565-0L100	Support,exhaust Pipe, No.4
17565	17565-0L090	Support, Exhaust Pipe, No.5
90109	90109-T0005	BOLT
90177	90177-T0006	Nut, Exhaust Pipe Set Stud Bolt
90177	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
90501	90501-T0007	SPRING
9155381035	91553-81035	BOLT, FLANGE

OEM	Part name	Category
17401-0C550	Pipe Assy, Exhaust, Front	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
17401-0C660	Pipe Assy, Exhaust, Front	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
17403-0C130	Pipe Assy, Exhaust, Center	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
17405-0C160	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
17451-0L050	Gasket, Exhaust Pipe	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
17451-0L060	Gasket, Exhaust Pipe	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
17565-0L090	Support, Exhaust Pipe, No.5	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
17565-0L100	Support,exhaust Pipe, No.4	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
90109-T0005	BOLT	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
90177-T0006	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
90501-T0007	SPRING	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
90917-T6002	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
91553-81035	BOLT, FLANGE	Exhaust Pipe ([07.2015 - ] (1507- )2TRFE)
