TGN156

Toyota FORTUNER · 2015 · 3,937 parts · 247 categories
TGN156 ×

← Back to categories

3,937 items

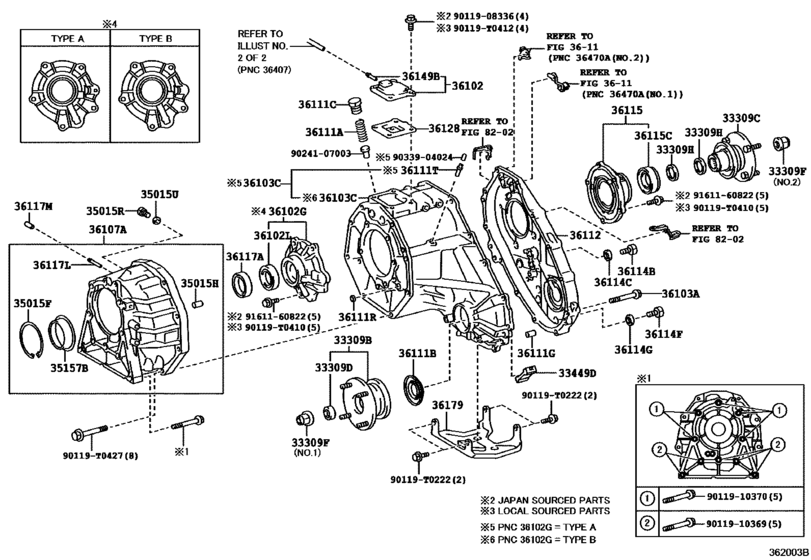

Transfer Case & Extension Housing ([07.2015 - ] TRANSFER CASE (1507- )GGN155,GUN15#,TGN156..6FC) 61
#OEMPart name
33309 33309-0K011 Flange Sub-Assy, Output Shaft Companion
33309 33309-35112 Flange Sub-Assy, Output Shaft Companion
33309 33309-35113 Flange Sub Assembly Out
33309 33309-0K030 Flange Sub-Assy, Output Shaft Companion
33309 33309-71010 Flange Sub-Assy, Output Shaft Companion
33309 90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)
33309 90312-T0004 Seal, Oil(For Transfer Output Shaft Companion Flange)
33309 90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)
33309 90179-24011 Nut (For Manual Transmission Output Shaft Rear Set)
33309 36275-71010 Washer, Transfer Output Shaft
33449 33449-32020 Magnet, Transmission
35015 90521-72001 Ring, Hole Snap(For Transfer Adapter)
35015 90250-11003 Pin, Ring(For Transfer Case)
35015 90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)
35015 90301-15004 Ring, O(For Oil Cooler Tube Union)
35157 35157-60010 Receiver, Transfer Case Rear Adapter Oil
36102 36102-0K020 Cover Sub-Assy, Transfer Case
36102 36102-35040 Cover Sub-Assy, Transfer Case
36102 36102-0K010 Retainer Sub-Assy, Transfer Rh Bearing
36102 36102-35060 Retainer Sub-Assy, Transfer Rh Bearing
36102 90311-43008 Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)
36102 90311-T0071 Seal, Type T Oil (For Transfer Cover)
36103 90119-08A28 Bolt (For Transfer Case)
36103 90119-T0411 Bolt (For Transfer Case)
36103 36103-35060 Case, Transfer, Front
36103 36111-0K030 Case, Transfer, Front
36107 35015-71030 Adapter, Transfer, Rear
36111 90501-20091 Spring, Compression (For Transfer Case)
36111 90501-T0034 Spring, Compression (For Transfer Case)
36111 90311-41017 Seal, Oil (For Transfer Case)
36111 90311-T0082 Seal, Oil (For Transfer Case)
36111 90341-14012 Plug (For Transfer Case)
36111 90341-T0013 Plug (For Transfer Case)
36111 90250-10214 Pin, Straight(For End Plate)
36111 90250-T0026 Pin, Straight (For Transfer Case)
36111 90331-15003 Plug, Tight (For Transfer Case) - TIGHT NO.2(FOR TRANSFER CASE)
36111 90441-05001 Tube (For Transfer Case)
36112 36112-0K030 Case, Transfer, Rear
36112 36112-71010 Case, Transfer, Rear
36114 90341-18006 Plug (No magnet)
36114 90430-18008 Gasket
36114 90430-T0021 Gasket(For Manual Transmission Filler Plug)
36115 36105-0K020 Housing, Transfer Extension
36115 36105-71010 Housing, Transfer Extension
36115 90311-45034 Seal, Type T Oil (For Transfer Extension Housing)
36115 90311-T0072 Seal, Type T Oil (For Transfer Extension Housing)
36117 90311-43013 Seal, Oil(For Transfer Adapter)
36117 90339-04024 Cap, Transfer, Rear Case
36128 36128-0K020 Deflector, Breather Oil
36128 36128-35060 Deflector Sub-Assy, Breather Oil
36149 90406-T0007 Tube (For Transfer Case)
36179 36179-0K011 Protector, Transfer Case Lower
90119 90119-T0222 New Genuine Part
90119 90119-T0410 New Genuine Part
90119 90119-T0412 Bolt (For Transmission Control Cable Bracket)
90119 90119-T0427 New Genuine Part
9011908336 90119-08336 BOLT
9011910369 90119-10369 New Genuine Part
9011910370 90119-10370 New Genuine Part
9024107003 90241-07003 Pin, Slotted Spring (For Transfer Case)
9161160822 91611-60822 Bolt
