| 16100-09460 |
Pump Assy, Engine Water |

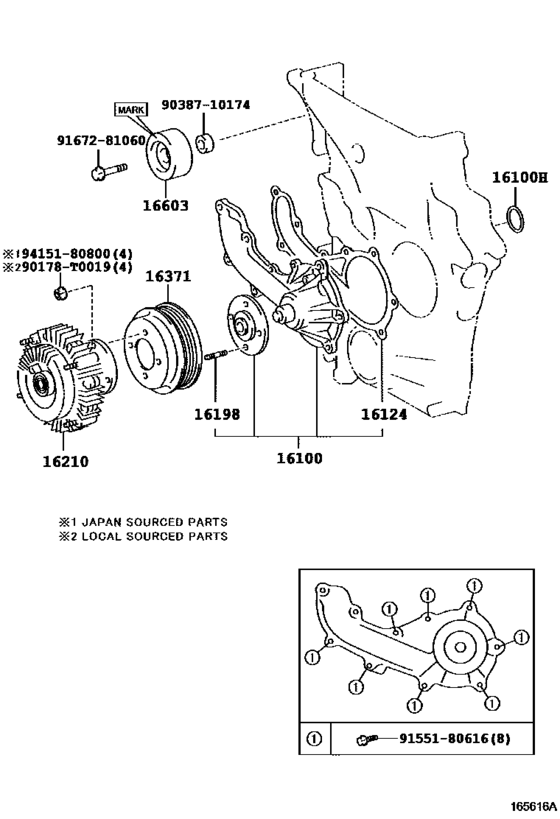

Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 16124-0C010 |
Gasket, Water Pump Cover |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 16210-0C010 |
Coupling Assy, Fluid |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 16210-75120 |
Coupling Assy, Fluid |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 16371-0C010 |
Pulley, Fan |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 16603-0C013 |
Pulley Sub-Assy, Idler, No.1 |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 90178-T0019 |
Nut (For Connecting Rod Swivel) |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 90301-T0022 |
Ring, O(For Water Pump) |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 90301-T0065 |
Ring, O(For Water Pump) |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 90387-10174 |
COLLAR |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 91551-80616 |
BOLT FLANGE |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 91672-81060 |
BOLT FLANGE |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 92122-60818 |
Bolt, Stud(For Water Pump Pulley Seat) |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
| 94151-80800 |
Nut (For Transmission Control Cable) |
Water Pump ([07.2011 - ] (1107- )1TRFE,2TRFE) |
