Search › Model › TGN15

TGN15

Toyota HILUX-4RUNNER-TRUCK · 2005 · 3,699 parts · 238 categories

← Back to categories

3,699 items

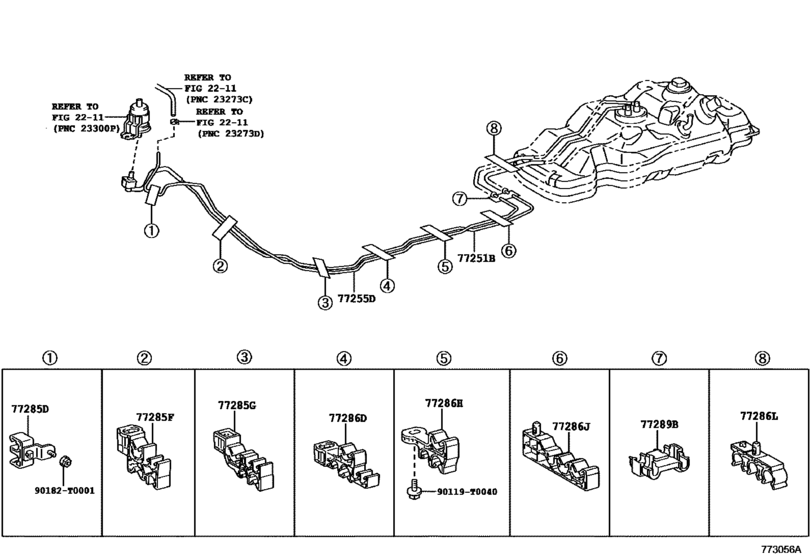

Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH) 12

#	OEM	Part name
77251	77251-0K010	Tube, Fuel Main
77255	77255-0K010	Tube, Fuel Return
77285	77285-0K020	Clamp, Fuel Tube, No.1
77285	77285-0K040	Clamp, Fuel Tube, No.1
77285	77285-0K050	Clamp, Fuel Tube, No.1
77286	77286-0K090	Clamp, Fuel Tube, No.2
77286	77286-0K100	Clamp, Fuel Tube, No.3
77286	77286-0K130	Clamp, Fuel Tube, No.4
77286	77286-0K060	Clamp, Fuel Tube, No.5
77289	77289-0K010	Clamp, Fuel Tube, No.3
90119	90119-T0040	New Genuine Part
90182	90182-T0001	New Genuine Part

OEM	Part name	Category
77251-0K010	Tube, Fuel Main	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
77255-0K010	Tube, Fuel Return	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
77285-0K020	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
77285-0K040	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
77285-0K050	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
77286-0K060	Clamp, Fuel Tube, No.5	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
77286-0K090	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
77286-0K100	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
77286-0K130	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
77289-0K010	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
90119-T0040	New Genuine Part	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)
90182-T0001	New Genuine Part	Fuel Tank & Tube ([07.2011 - ] FUEL TUBE(LEADED GASOLINE) (1107- )TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,SA, TH)

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 238
Collected: 2026-08-04
