TGN141

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2015 · 3,304 parts · 206 categories

3,304 items

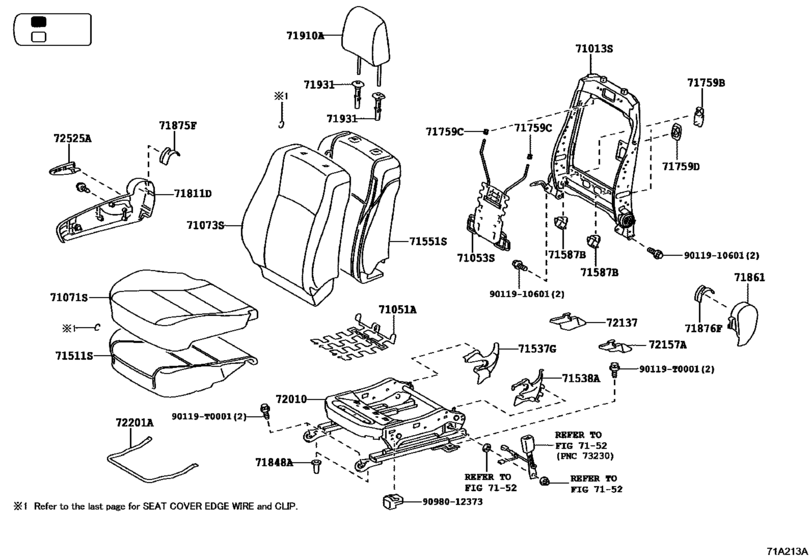

Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N) 29

#	OEM	Part name
71013	71013-0K280	Frame Sub-Assy, Front Seat Back, Rh
71051	71051-02340	Spring Sub-Assy, Front Seat Cushion, Rh
71053	71053-0K060	Spring Sub-Assy, Front Seat Back, Rh
71071	71071-0KJ90-C1	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-0KE80-C2	Cover, Front Seat Back, Rh(For Separate Type)
71511	71511-0K100	Pad, Front Seat Cushion, Rh(For Separate Type)
71537	71537-02270-C0	Protector, Front Seat Cushion Edge, Rh(For Rh Seat)
71538	71538-02200-C0	Protector, Front Seat Cushion Edge, Lh(For Rh Seat)
71551	71551-0K090	Pad, Front Seat Back, Rh(For Separate Type)
71587	71587-0K060	Protector, Front Seat Back Edge
71759	71759-0K180	Hook, Front Seat Back
71759	71759-0K190	Hook, Front Seat Back, No.1
71759	71759-0K040-C0	Hook, Front Seat Back, No.2
71811	71811-0K220-C0	Shield, Front Seat Cushion, Rh
71848	71848-47010	Cap, Seat Adjuster Cover, Rh
71861	71861-0K260-C0	Shield, Front Seat Cushion, Inner Rh
71875	71875-0K210-C0	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71876	71876-0K210-C0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)
71910	71910-0K770-C0	Headrest Assy, Front Seat
71931	71930-0K020-C0	Support, Front Seat Headrest
71931	71931-0K020-C0	Support, Front Seat Headrest
72010	72010-0K040	Adjuster Assy, Front Seat, Rh
72137	72137-0K080-C0	Cover, Seat Track, Outer Rh
72157	72157-0K060-C0	Cover, Seat Track Bracket, Inner Rh
72201	72211-02150	Handle Sub-Assy, Seat Track Rh
72525	72525-0K360-C0	Handle, Reclining Adjuster Release, Rh
90119	90119-T0001	BOLTWWSH
9011910601	90119-10601	BOLT W-WASHER
9098012373	90980-12373	Connector, Wiring Harness

OEM	Part name	Category
71013-0K280	Frame Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71051-02340	Spring Sub-Assy, Front Seat Cushion, Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71053-0K060	Spring Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71071-0KJ90-C1	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71073-0KE80-C2	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71511-0K100	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71537-02270-C0	Protector, Front Seat Cushion Edge, Rh(For Rh Seat)	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71538-02200-C0	Protector, Front Seat Cushion Edge, Lh(For Rh Seat)	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71551-0K090	Pad, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71587-0K060	Protector, Front Seat Back Edge	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71759-0K040-C0	Hook, Front Seat Back, No.2	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71759-0K180	Hook, Front Seat Back	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71759-0K190	Hook, Front Seat Back, No.1	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71811-0K220-C0	Shield, Front Seat Cushion, Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71848-47010	Cap, Seat Adjuster Cover, Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71861-0K260-C0	Shield, Front Seat Cushion, Inner Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71875-0K210-C0	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71876-0K210-C0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71910-0K770-C0	Headrest Assy, Front Seat	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71930-0K020-C0	Support, Front Seat Headrest	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
71931-0K020-C0	Support, Front Seat Headrest	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
72010-0K040	Adjuster Assy, Front Seat, Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
72137-0K080-C0	Cover, Seat Track, Outer Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
72157-0K060-C0	Cover, Seat Track Bracket, Inner Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
72211-02150	Handle Sub-Assy, Seat Track Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
72525-0K360-C0	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
90119-10601	BOLT W-WASHER	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
90119-T0001	BOLTWWSH	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
90980-12373	Connector, Wiring Harness	Seat & Seat Track ([04.2016 - 09.2017] DRIVE (1604-1709)24G,27G,28G..IND ; (1604- )GUN142. .G,N)
