Search › Model › TGN141

TGN141

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2015 · 3,304 parts · 206 categories

3,304 items

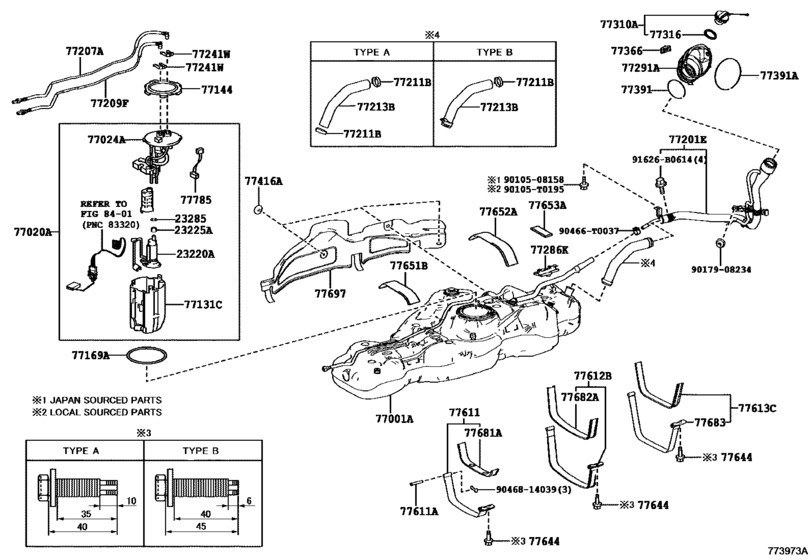

Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141) 42

#	OEM	Part name
23220	23220-0C181	Pump Assy, Fuel W/filter
23225	23225-0V030	Spacer, Fuel Pump
23285	90301-T0064	Ring, O(For Fuel Pump)
77001	77001-0K360	Tank Sub-Assy, Fuel
77020	77020-0K050	Tube Assy, Fuel Suction W/pump & Gage
77024	77024-0K130	Plate Sub-Assy, Fuel Suction
77131	77131-0K160	Sub-Tank, Fuel, No.1
77144	77144-0K040	Retainer, Fuel Pump Gauge
77169	77169-0K030	Gasket, Fuel Suction Tube Set
77201	77201-KK130	Pipe Sub-Assy, Fuel Tank Filler
77207	77204-0K090	Tube Sub-Assy, Fuel Return
77209	77209-0K150	Tube Sub-Assy, Fuel Tank Main
77211	90460-46005	Clamp (For Fuel Filler Pipe)
77213	77213-KK020	Hose, Fuel Tank To Filler Pipe
77241	77241-0K010	Clip, Tube Joint
77286	77286-0K180	Clamp, Fuel Tube, No.2
77291	77291-0K100	Shield, Fuel Tank Filler Pipe
77310	77300-0K010	Cap Assy, Fuel Tank
77316	77316-0K020	Gasket, Fuel Tank Cap
77366	77360-30080	Spring Assy, Fuel Filler Opening Lid
77391	77391-0K010	Ring, Fuel Inlet Box
77391	77391-0K170	Ring, Fuel Inlet Box
77416	77512-0K010	Bracket, Fuel Tank
77611	77601-KK020	Band, Fuel Tank
77611	77653-0K041	Pin (For Fuel Tank Band)
77612	77602-KK010	Band, Fuel Tank, No.2
77644	77644-35030	Bolt, Fuel Tank
77644	90119-10983	Bolt, Fuel Tank
77644	90119-A0249	Bolt, Fuel Tank
77651	77651-0K050	Cushion, Fuel Tank
77652	77654-0K060	Cushion, Fuel Tank, No.2
77653	77653-0K060	Cushion, Fuel Tank, No.3
77681	77681-KK010	Seat, Fuel Tank Band
77682	77682-KK010	Seat, Fuel Tank Band, No.2
77697	77697-0K060	Insulator, Fuel Tank Heat, No.1
77785	77785-0K050	Harness, Fuel Pump
90105	90105-T0195	New Genuine Part
90466	90466-T0037	CLIP HOSE
91626	91626-B0614	BOLT, W/WASHER
9010508158	90105-08158	Plug(For Fuel Sub-Tank)
9017908234	90179-08234	NUT
9046814039	90468-14039	CLIP

OEM	Part name	Category
23220-0C181	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
23225-0V030	Spacer, Fuel Pump	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77001-0K360	Tank Sub-Assy, Fuel	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77020-0K050	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77024-0K130	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77131-0K160	Sub-Tank, Fuel, No.1	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77144-0K040	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77169-0K030	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77201-KK130	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77204-0K090	Tube Sub-Assy, Fuel Return	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77209-0K150	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77213-KK020	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77241-0K010	Clip, Tube Joint	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77286-0K180	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77291-0K100	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77300-0K010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77316-0K020	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77360-30080	Spring Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77391-0K010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77391-0K170	Ring, Fuel Inlet Box	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77512-0K010	Bracket, Fuel Tank	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77601-KK020	Band, Fuel Tank	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77602-KK010	Band, Fuel Tank, No.2	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77644-35030	Bolt, Fuel Tank	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77651-0K050	Cushion, Fuel Tank	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77653-0K041	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77653-0K060	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77654-0K060	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77681-KK010	Seat, Fuel Tank Band	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77682-KK010	Seat, Fuel Tank Band, No.2	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77697-0K060	Insulator, Fuel Tank Heat, No.1	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
77785-0K050	Harness, Fuel Pump	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
90105-08158	Plug(For Fuel Sub-Tank)	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
90105-T0195	New Genuine Part	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
90119-10983	Bolt, Fuel Tank	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
90119-A0249	Bolt, Fuel Tank	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
90179-08234	NUT	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
90301-T0064	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
90466-T0037	CLIP HOSE	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
90468-14039	CLIP	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)
91626-B0614	BOLT, W/WASHER	Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )TGN141)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 206
Collected: 2026-08-04
