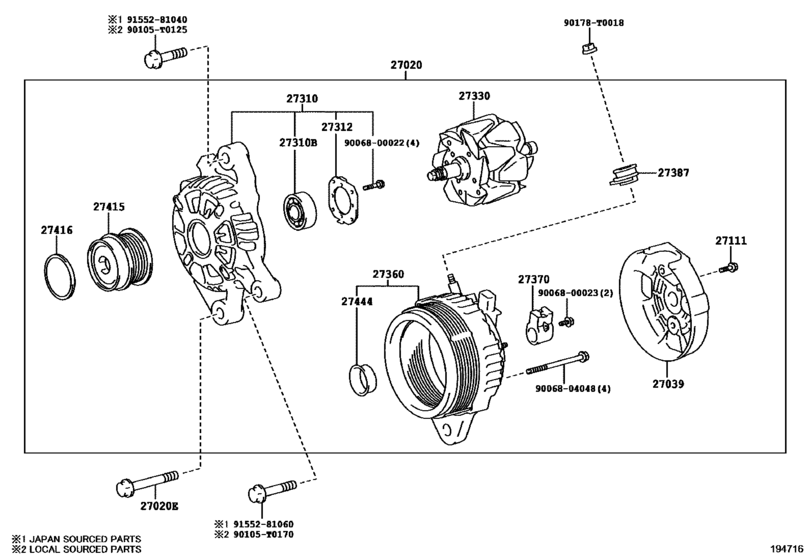

| 27039-0V220 |
Cover, Alternator Rear End |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27060-0C080 |
Alternator Assy |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27310-0C080 |
Frame Assy, Drive End, Alternator |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27312-0C020 |
Plate, Retainer |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27330-0L140 |
Rotor Assy, Alternator |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27360-0C080 |
Coil Assy, Alternator |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27370-0C020 |
Holder Assy, Alternator Brush |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27387-0C020 |
Insulator, Terminal - ALTERNATOR TERMINAL |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27415-0W063 |
Pulley, Alternator W/clutch |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27416-0W050 |
Cap, Alternator Pulley |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 27444-0Y180 |
Packing, Alternator Bearing Cover |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 90068-00022 |
Screw(For Alternator Drive End Frame) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 90068-00023 |
Screw(For Alternator Brush Holder) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 90068-04046 |
Bolt(For Alternator Rear End Cover) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 90068-04048 |
Bolt(For Alternator Coil) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 90068-10042 |
Bearing(For Alternator Drive End Frame) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 90105-T0125 |
Bolt(For Alternator) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 90105-T0170 |
New Genuine Part |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 90105-T0211 |
Bolt(For Alternator) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 90178-T0018 |
NUT FLANGE |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 91552-81040 |
Bolt(For Alternator) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 91552-81060 |
Bolt, No.3(For Alternator) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
| 91552-81080 |
Bolt(For Alternator) |
Alternator ([11.2015 - ] 12V 100A (1511- )1TRFE..PHLP ; (1511- )1TRFE,2TRFE. .GCC,IND,LA,TH,VN ; (1608- )1TRF E..IDNP..PHL) |
