Search › Model › TGN11

TGN11

Toyota HILUX-4RUNNER-TRUCK · 2005 · 3,261 parts · 188 categories

3,261 items

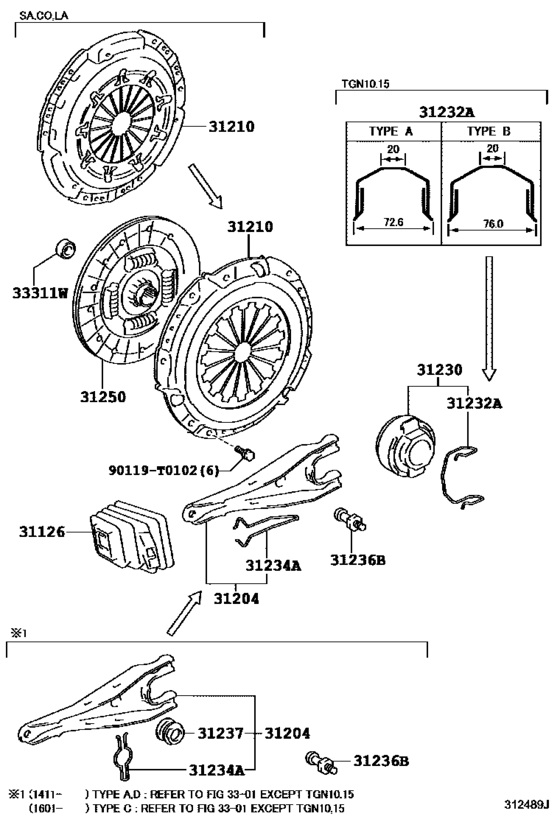

Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F) 20

#	OEM	Part name
31126	31126-0K070	Boot, Clutch Release Fork
31126	31126-36080	Boot, Clutch Release Fork
31204	31204-0K020	Fork Sub-Assy, Clutch Release
31204	31204-35031	Fork Sub-Assy, Clutch Release
31204	31204-71020	Fork Sub-Assy, Clutch Release
31210	31210-0K131	Cover Assy, Clutch
31230	31230-71020	Bearing Assy, Clutch Release
31232	31232-71020	Clip, Release Bearing Hub
31234	31234-35011	Spring, Release Fork Support
31234	31234-71020	Spring, Release Fork Support
31236	31236-35030	Ball, Release Fork
31236	31236-71030	Support, Release Fork
31236	31236-71040	Support, Release Fork
31237	31237-0K020	Boot, Clutch Release Fork Support
31250	31250-0K151	Disc Assy, Clutch
31250	31250-0K152	Disc Assy, Clutch
33311	90363-12002	Bearing (For Input Shaft)
33311	90363-12024	Bearing, Radial Ball
33311	90363-T0006	Bearing (For Input Shaft)
90119	90119-T0102	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
31126-0K070	Boot, Clutch Release Fork	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31126-36080	Boot, Clutch Release Fork	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31204-0K020	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31204-35031	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31204-71020	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31210-0K131	Cover Assy, Clutch	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31230-71020	Bearing Assy, Clutch Release	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31232-71020	Clip, Release Bearing Hub	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31234-35011	Spring, Release Fork Support	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31234-71020	Spring, Release Fork Support	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31236-35030	Ball, Release Fork	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31236-71030	Support, Release Fork	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31236-71040	Support, Release Fork	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31237-0K020	Boot, Clutch Release Fork Support	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31250-0K151	Disc Assy, Clutch	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
31250-0K152	Disc Assy, Clutch	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
90119-T0102	Bolt (For Transmission Control Cable Bracket)	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
90363-12002	Bearing (For Input Shaft)	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
90363-12024	Bearing, Radial Ball	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)
90363-T0006	Bearing (For Input Shaft)	Clutch & Release Fork ([07.2011 - ] (1107- )TGN1#,26,36..5F)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 188
Collected: 2026-08-04
