Search › Model › TGN11
TGN11

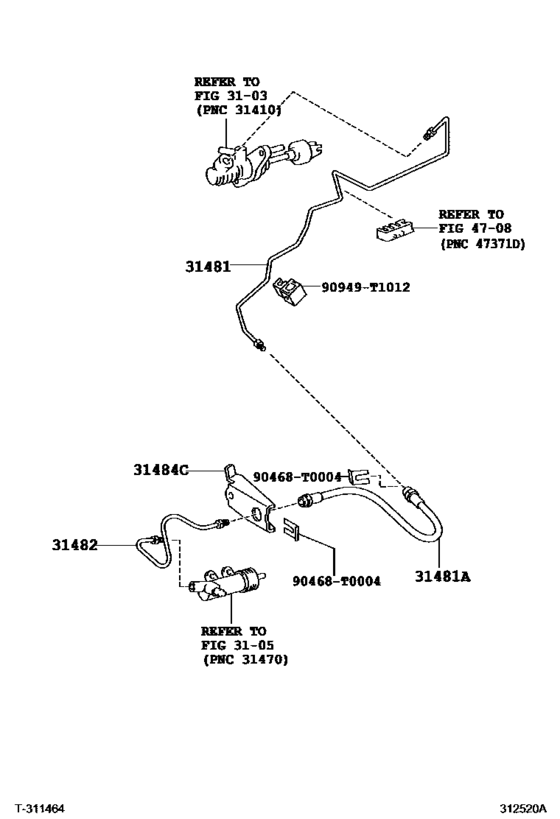

Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )TGN1#,26,36..LHD..5F) 6
| # | OEM | Part name |
|---|---|---|
| 31481 | 31481-0K020 | Tube, Clutch Master Cylinder To Flexible Hose |
| 31481 | 90947-T2008 | Hose, Clutch, No.1 |
| 31482 | 31482-0K020 | Tube, Clutch Release Cylinder To Flexible Hose |
| 31484 | 31484-0K010 | Bracket, Clutch Tube, No.1 |
| 90468 | 90468-T0004 | CLIP |
| 90949 | 90949-T1012 | Clamp, Brake Tube, No.3 |
| OEM | Part name | Category |
|---|---|---|
| 31481-0K020 | Tube, Clutch Master Cylinder To Flexible Hose | Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )TGN1#,26,36..LHD..5F) |
| 31482-0K020 | Tube, Clutch Release Cylinder To Flexible Hose | Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )TGN1#,26,36..LHD..5F) |
| 31484-0K010 | Bracket, Clutch Tube, No.1 | Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )TGN1#,26,36..LHD..5F) |
| 90468-T0004 | CLIP | Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )TGN1#,26,36..LHD..5F) |
| 90947-T2008 | Hose, Clutch, No.1 | Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )TGN1#,26,36..LHD..5F) |
| 90949-T1012 | Clamp, Brake Tube, No.3 | Clutch Pedal & Flexible Hose ([07.2011 - ] (1107- )TGN1#,26,36..LHD..5F) |
