Search › Model › TE71

TE71

Toyota COROLLA · 1979 · 3,626 parts · 160 categories

3,626 items

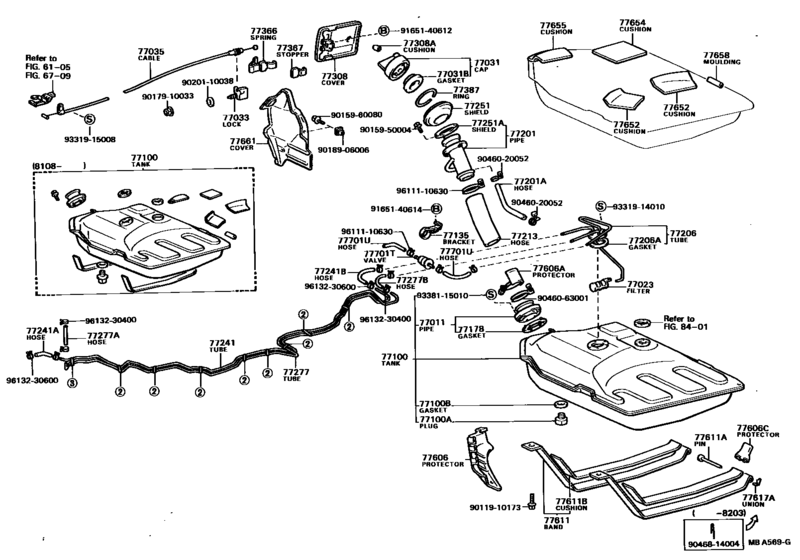

Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA) 66

#	OEM	Part name
77011	77011-10020	Pipe Sub-Assy, Fuel Tank Filler, Lower
77011	77011-12010	Pipe Sub-Assy, Fuel Tank Filler, Lower
77023	77023-12050	Filter Sub-Assy, Fuel Suction Tube
77031	77310-12100	Cap Assy, Fuel Tank
77031	77316-12050	Gasket (For Fuel Tank Cap)
77100	77001-19065	Tank Assy, Fuel
77100	77001-19155	Tank Assy, Fuel
77100	77017-16021	Tube Sub-Assy, Fuel And Evaporation Vent
77100	77001-19195	Tank Assy, Fuel
77100	90341-20004	Plug(For Fuel Tank)
77100	90341-24036	Plug(For Fuel Tank)
77100	90430-20007	Gasket(For Fuel Tank)
77100	90430-24047	Gasket(For Fuel Tank)
77135	77277-12040	Bracket, Check Valve
77178	77178-10010	Gasket, Fuel Pump Bracket
77201	77201-12240	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-12241	Pipe Sub-Assy, Fuel Tank Inlet
77201	90445-18021	Hose(For Return Tube Outlet)
77201	90445-18012	Hose, Fuel, No.1(For Fuel Tank) - FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77201	90445-18046	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77206	77017-12170	Tube Sub-Assy, Fuel Tank Suction
77206	77169-14020	Gasket, Fuel Tank Vent
77213	77213-12110	Hose, Fuel Tank Sub Inlet
77241	77251-12060	Tube, Fuel Main, No.1
77241	95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77241	95337-06020	Hose, Differential Pressure Control
77251	77292-12030	Shield, Fuel Tank, Inlet, No.1
77251	77291-12020	Shield, Fuel Tank, Inlet, No.2
77308	77350-12031	Cover Sub-Assy, Fuel Inlet Box
77308	90541-08003	Cushion(For Inspection Opening)
77367	77358-12021	Stopper, Fuel Filler Opening Lid
77387	77391-16010	Ring, Fuel Inlet Box
77611	77602-12030	Band, Fuel Tank
77611	77602-16040	Band, Fuel Tank
77611	90240-08020	Pin (For Fuel Tank Band)
77611	77654-12021	Cushion, Fuel Tank, No.4
77617	77617-12010	Union, Auxiliary Fuel Band
77652	77651-12041	Cushion, Fuel Tank, No.1
77652	77655-12021	Cushion, Fuel Tank, No.1
77654	77652-12040	Cushion, Fuel Tank, No.2
77654	77652-12041	Cushion, Fuel Tank, No.2
77655	77653-12031	Cushion, Fuel Tank, No.3
77658	77658-12010	Moulding, Fuel Tank Edge
77661	77661-12010	Cover, Fuel Inlet Pipe
77701	90917-10020	Valve, Check (For Main Fuel Tank)
9011910173	90119-10173	New Genuine Part
9015950004	90159-50004	New Genuine Part
9015960080	90159-60080	SCREW
9017910033	90179-10033	Nut (For Front Wiper Arm Setting)
9018906006	90189-06006	Grommet
9020110038	90201-10038	Washer
9046020052	90460-20052	New Genuine Part
9046020052	96112-10200	New Genuine Part
9046063001	90460-63001	New Genuine Part
9046814004	90468-14004	Union, Auxiliary Fuel Band
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165140614	91651-40614	Bolt
9331914010	93319-14010	SCREW
9331915008	93319-15008	SCREW
9338115010	93381-15010	SCREW
9611110630	96111-10630	Clamp, Hose
9613230400	96132-30400	Clip Or Clamp(For Ventilation Hose)
9613230400	96132-51000	Clip Or Clamp(For Ventilation Hose)
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)

OEM	Part name	Category
77001-19065	Tank Assy, Fuel	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77001-19155	Tank Assy, Fuel	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77001-19195	Tank Assy, Fuel	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77011-10020	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77011-12010	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77017-12170	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77017-16021	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77023-12050	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77178-10010	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77201-12240	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77201-12241	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77213-12110	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77251-12060	Tube, Fuel Main, No.1	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77277-12040	Bracket, Check Valve	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77291-12020	Shield, Fuel Tank, Inlet, No.2	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77292-12030	Shield, Fuel Tank, Inlet, No.1	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77310-12100	Cap Assy, Fuel Tank	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77350-12031	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77358-12021	Stopper, Fuel Filler Opening Lid	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77391-16010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77602-12030	Band, Fuel Tank	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77602-16040	Band, Fuel Tank	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77617-12010	Union, Auxiliary Fuel Band	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77651-12041	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77652-12040	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77652-12041	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77653-12031	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77654-12021	Cushion, Fuel Tank, No.4	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77655-12021	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77658-12010	Moulding, Fuel Tank Edge	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
77661-12010	Cover, Fuel Inlet Pipe	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90080-11225	New Genuine Part	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90119-10173	New Genuine Part	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90159-50004	New Genuine Part	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90159-60080	SCREW	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90179-10033	Nut (For Front Wiper Arm Setting)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90189-06006	Grommet	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90201-10038	Washer	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90240-08020	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90341-20004	Plug(For Fuel Tank)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90341-24036	Plug(For Fuel Tank)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90430-20007	Gasket(For Fuel Tank)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90430-24047	Gasket(For Fuel Tank)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90445-18012	Hose, Fuel, No.1(For Fuel Tank) - FUEL, NO.1(FOR FUEL TANK INLET PIPE)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90445-18021	Hose(For Return Tube Outlet)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90445-18046	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90460-20052	New Genuine Part	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90460-63001	New Genuine Part	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90468-14004	Union, Auxiliary Fuel Band	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90541-08003	Cushion(For Inspection Opening)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
90917-10020	Valve, Check (For Main Fuel Tank)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
91651-40612	BOLT	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
91651-40614	Bolt	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
93319-14010	SCREW	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
93319-15008	SCREW	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
93381-15010	SCREW	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
96111-10630	Clamp, Hose	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
96112-10200	New Genuine Part	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([09.1978 - 02.1985] (7809-8502)KE70,TE7#..CP,LB,SED..EUR,GEN,SA,SAA)
