Search › Model › TE71

TE71

Toyota COROLLA · 1979 · 3,626 parts · 160 categories

3,626 items

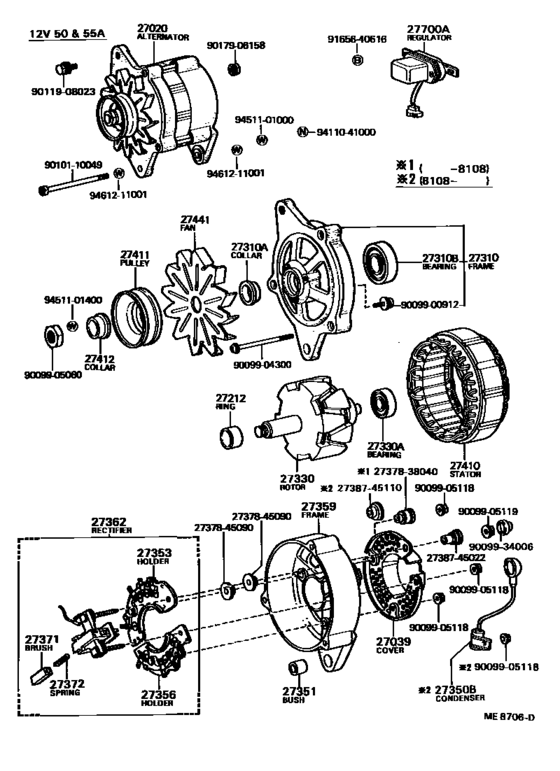

Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC) 47

#	OEM	Part name
27020	27020-18011	Alternator Assy
27020	27020-38120	Alternator Assy
27039	27039-18011	Cover, Alternator Rear End
27212	27212-39050	Ring, Space(For Alternator Rotor)
27310	27310-18010	Frame Assy, Drive End, Alternator
27310	27412-31040	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10126	Bearing(For Alternator Drive End Frame)
27310	90099-10125	Bearing(For Alternator Drive End Frame)
27330	27330-26050	Rotor Assy, Alternator
27330	90099-10111	Bearing(For Alternator Rotor)
27330	90099-10116	Bearing(For Alternator Rotor)
27350	90099-52065	Condenser, Alternator
27350	90099-52034	Condenser, Alternator
27351	27351-38051	Bush(For Alternator Rectifier End Frame)
27359	27359-13050	Frame, Alternator Rectifier End
27362	27362-18011	Rectifier Assy, W/brush
27371	27371-31011	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27410	27410-15030	Stator Assy, Alternator
27410	27410-38120	Stator Assy, Alternator
27411	27411-31042	Pulley, Alternator
27412	27412-44030	Ring, Space(For Alternator Rotor)
27412	27412-44031	Collar, Spacer(For Alternator Pulley)
27441	27441-34030	Fan, Alternator
27700	27700-15011	Regulator Assy, Generator
27700	27700-15040	Regulator Assy, Generator
27700	27700-15030	Regulator Assy, Generator
2737838040	27378-38040	Insulator, Alternator, No.1
2737845090	27378-45090	Insulator, Alternator, No.1
2738745022	27387-45022	Insulator, Terminal
2738745110	27387-45110	Insulator, Terminal
9009900912	90099-00912	New Genuine Part
9009904300	90099-04300	New Genuine Part
9009905060	90099-05060	Collar Or Nut(For Alternator Drive End Frame)
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009934006	90099-34006	Cap, Alternator Terminal
9010110049	90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)
9010110049	90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)
9011908023	90119-08023	BOLT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9411041000	94110-41000	Nut(For Steering Damper)
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9451101400	94511-01400	WASHER
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
27020-18011	Alternator Assy	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27020-38120	Alternator Assy	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27039-18011	Cover, Alternator Rear End	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27212-39050	Ring, Space(For Alternator Rotor)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27310-18010	Frame Assy, Drive End, Alternator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27330-26050	Rotor Assy, Alternator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27351-38051	Bush(For Alternator Rectifier End Frame)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27359-13050	Frame, Alternator Rectifier End	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27362-18011	Rectifier Assy, W/brush	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27371-31011	Brush, Alternator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27372-31011	Spring, Alternator Brush	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27378-38040	Insulator, Alternator, No.1	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27378-45090	Insulator, Alternator, No.1	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27387-45022	Insulator, Terminal	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27387-45110	Insulator, Terminal	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27410-15030	Stator Assy, Alternator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27410-38120	Stator Assy, Alternator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27411-31042	Pulley, Alternator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27412-31040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27412-44030	Ring, Space(For Alternator Rotor)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27412-44031	Collar, Spacer(For Alternator Pulley)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27441-34030	Fan, Alternator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27700-15011	Regulator Assy, Generator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27700-15030	Regulator Assy, Generator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
27700-15040	Regulator Assy, Generator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-00912	New Genuine Part	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-04300	New Genuine Part	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-05060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-05118	New Genuine Part	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-05119	New Genuine Part	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-10111	Bearing(For Alternator Rotor)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-10116	Bearing(For Alternator Rotor)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-10125	Bearing(For Alternator Drive End Frame)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-10126	Bearing(For Alternator Drive End Frame)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-34006	Cap, Alternator Terminal	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-52034	Condenser, Alternator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90099-52065	Condenser, Alternator	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90119-08023	BOLT	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
91651-60614	Bolt	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
91656-40616	Bolt	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
94110-41000	Nut(For Steering Damper)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
94511-01000	Washer(For Rear Drive Shaft)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
94511-01400	WASHER	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Alternator ([08.1979 - 02.1985] (7908-8502)2T,2TB ; (7910-8305)2TG ; (8004-8305) 3TC)
