TE70

Toyota COROLLA · 1979 · 4,082 parts · 162 categories
TE70 ×

← Back to categories

4,082 items

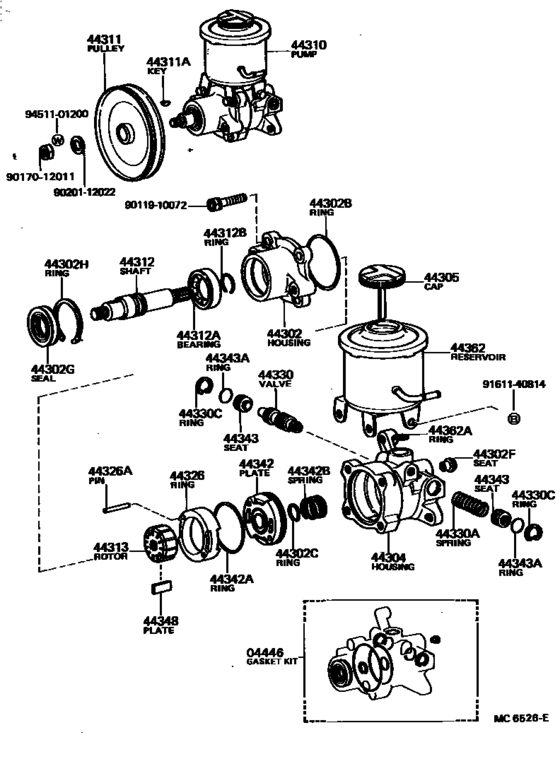

Vane Pump & Reservoir (Power Steering) ([08.1979 - 08.1981] (7908-8108)TE70..GL,SE,SL) 72
#OEMPart name
4446 04446-12011 Gasket Kit, Power Steering Pump
4446 04446-22020 Gasket Kit, Power Steering Pump
44302 44302-12010 Housing Sub-Assy, Vane Pump, Front
44302 90301-60001 Ring, O, No.1(For Vane Pump Housing)
44302 96710-01016 Ring, O, No.2(For Vane Pump Housing)
44302 96711-19016 Ring, O (For 5Th Shift Arm Shaft)
44302 90410-06030 Seat, Union(For Valve Body Housing)
44302 90311-24001 Seal, Oil, No.1(For Vane Pump Housing)
44302 90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)
44304 44304-12010 Housing Sub-Assy, Vane Pump, Rear
44305 44305-30020 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir
44310 44320-12010 Pump Assy, Vane
44310 44320-12011 Pump Assy, Vane
44310 44320-12H00 Pump Assy, Vane
44311 44311-12010 Pulley, Vane Pump
44311 90280-05008 Key, Woodruff(For Distributor Drive Gear)
44312 44312-12010 Shaft, Vane Pump
44312 90363-17004 Bearing(For Vane Pump Shaft)
44312 90520-15001 Ring, Snap, No.1(For Vane Pump Shaft)
44312 90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-12010 Rotor, Vane Pump
44313 44313-22040 Rotor, Vane Pump
44313 44313-12020 Rotor, Vane Pump
44313 44313-22050 Rotor, Vane Pump
44313 44313-12030 Rotor, Vane Pump
44313 44313-22060 Rotor, Vane Pump
44313 44313-12040 Rotor, Vane Pump
44313 44313-22070 Rotor, Vane Pump
44313 44313-12050 Rotor, Vane Pump
44313 44313-22080 Rotor, Vane Pump
44326 44325-12010 Ring, Cam(For Vane Pump)
44326 44325-12020 Ring, Cam(For Vane Pump)
44326 44325-12030 Ring, Cam(For Vane Pump)
44326 44325-12040 Ring, Cam(For Vane Pump)
44326 44325-12050 Ring, Cam(For Vane Pump)
44326 90250-05008 Pin, Straight(For Vane Pump Cam Ring)
44330 44330-12010 Valve Assy, Flow Control
44330 44330-32670 Valve Assy, Flow Control
44330 44330-12020 Valve Assy, Flow Control
44330 44330-32680 Valve Assy, Flow Control
44330 44330-12030 Valve Assy, Flow Control
44330 44330-32690 Valve Assy, Flow Control
44330 44330-12040 Valve Assy, Flow Control
44330 44330-32700 Valve Assy, Flow Control
44330 44330-12050 Valve Assy, Flow Control
44330 44330-32710 Valve Assy, Flow Control
44330 44330-12060 Valve Assy, Flow Control
44330 44330-32720 Valve Assy, Flow Control
44330 90501-12447 Spring, Compression(For Flow Control Valve)
44330 96151-01700 Ring, Snap(For Flow Control Valve)
44342 44341-12010 Plate, Vane Pump Side, Front
44342 90301-53002 Ring, O(For Vane Pump Side Plate Rear)
44342 90501-23014 Spring, Compression(For Vane Pump Side Plate Rear)
44343 44343-12010 Seat, Flow Control Spring
44343 96710-01014 Ring, O, No.3(For Vane Pump Housing)
44343 96711-19014 O-Ring
44348 44345-12010 Plate, Vane Pump
44348 44345-12020 Plate, Vane Pump
44348 44345-12030 Plate, Vane Pump
44348 44345-12040 Plate, Vane Pump
44348 44345-12050 Plate, Vane Pump
44362 44306-12010 Reservoir, Oil(For Vane Pump)
44362 44306-12011 Reservoir, Oil(For Vane Pump)
44362 96710-01013 Ring, O(For Power Steering Suction Port)
44362 96711-19013 Ring, O(For Power Steering Suction Port)
9011910072 90119-10072 New Genuine Part
9017012011 90170-12011 Nut(For Vane Pump Pulley)
9020112022 90201-12022 New Genuine Part
9161140814 91611-40814 Bolt(For Manual Transmission Oil Pan Setting)
9161140814 91611-60814 Bolt
9451101200 94511-01200 WASHER
