Search › Model › TE38

TE38

Toyota COROLLA · 1974 · 4,403 parts · 179 categories

4,403 items

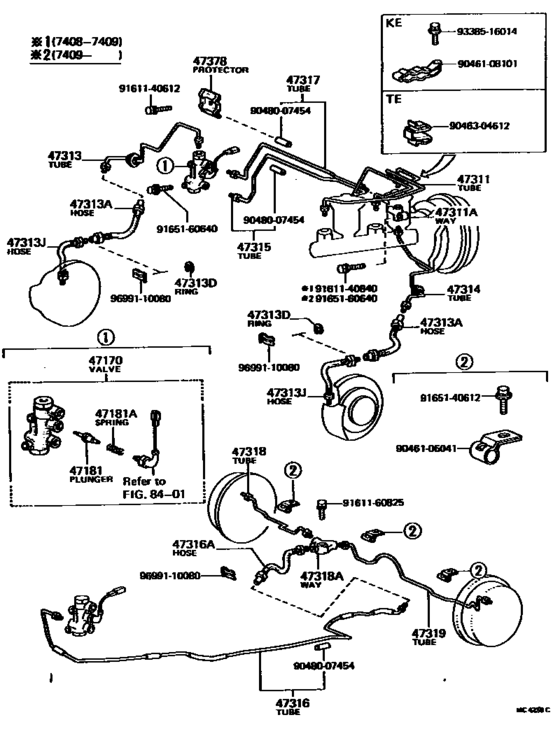

Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA) 42

#	OEM	Part name
47170	47170-12021	Valve Assy, Brake Combination
47170	47170-14030	Valve Assy, Brake Combination
47181	47181-12010	Plunger, Differential Switch
47181	90501-05002	Spring, Compression(For Differential Valve Switch)
47311	47311-12290	Tube, Front Brake, No.1
47311	47311-12310	Tube, Front Brake, No.1
47311	90413-10148	Way(For Front Brake Tube)
47313	47313-12100	Tube, Front Brake, No.3
47313	47313-12101	Tube, Front Brake, No.3
47313	90947-02259	Hose, Flexible, No.1(For Front)
47313	96160-01200	Ring, E(For Clutch Release Cable)
47313	90947-02260	Hose, Flexible, No.2(For Front)
47314	47314-12090	Tube, Front Brake, No.4
47314	47314-12100	Tube, Front Brake, No.4
47315	47315-12210	Tube, Front Brake, No.5
47315	47315-12230	Tube, Front Brake, No.5
47316	47316-13131	Tube, Front Brake, No.6
47316	47316-13141	Tube, Front Brake, No.6
47316	96940-30305	Hose, Clutch, No.1
47316	96940-33005	Hose, Clutch, No.1
47317	47312-12010	Tube, Front Brake, No.7
47317	47312-12020	Tube, Front Brake, No.7
47318	47318-12101	Tube, Front Brake, No.8
47318	90413-10029	Way, No.2(For Rear Brake Tube)
47319	47319-12101	Tube, Front Brake, No.9
47378	47378-12020	Protector, Brake Tube
9046106041	90461-06041	New Genuine Part
9046108101	90461-08101	New Genuine Part
9046304612	90463-04612	New Genuine Part
9048007454	90480-07454	Cover, Tube
9161140612	91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612	91611-G0612	Bolt
9161140840	91611-40840	New Genuine Part
9161140840	91611-60840	BOLT
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165160640	91651-60640	Bolt, Rear Body Mounting
9165160640	91651-B0640	Bolt, Rear Body Mounting
9338516014	93385-16014	New Genuine Part
9699110080	96991-10080	CLIP

OEM	Part name	Category
47170-12021	Valve Assy, Brake Combination	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47170-14030	Valve Assy, Brake Combination	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47181-12010	Plunger, Differential Switch	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47311-12290	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47311-12310	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47312-12010	Tube, Front Brake, No.7	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47312-12020	Tube, Front Brake, No.7	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47313-12100	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47313-12101	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47314-12090	Tube, Front Brake, No.4	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47314-12100	Tube, Front Brake, No.4	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47315-12210	Tube, Front Brake, No.5	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47315-12230	Tube, Front Brake, No.5	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47316-13131	Tube, Front Brake, No.6	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47316-13141	Tube, Front Brake, No.6	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47318-12101	Tube, Front Brake, No.8	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47319-12101	Tube, Front Brake, No.9	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
47378-12020	Protector, Brake Tube	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90080-11225	New Genuine Part	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90413-10029	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90413-10148	Way(For Front Brake Tube)	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90461-06041	New Genuine Part	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90461-08101	New Genuine Part	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90463-04612	New Genuine Part	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90480-07454	Cover, Tube	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90501-05002	Spring, Compression(For Differential Valve Switch)	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90947-02259	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
90947-02260	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
91611-40840	New Genuine Part	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
91611-60840	BOLT	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
91611-G0612	Bolt	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
91651-40612	BOLT	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
91651-60640	Bolt, Rear Body Mounting	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
91651-B0640	Bolt, Rear Body Mounting	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
93385-16014	New Genuine Part	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
96160-01200	Ring, E(For Clutch Release Cable)	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
96940-30305	Hose, Clutch, No.1	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
96940-33005	Hose, Clutch, No.1	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
96991-10080	CLIP	Brake Tube & Clamp ([01.1976 - 08.1979] (7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (770 8-7908)KE30..USA)
