TDB4W

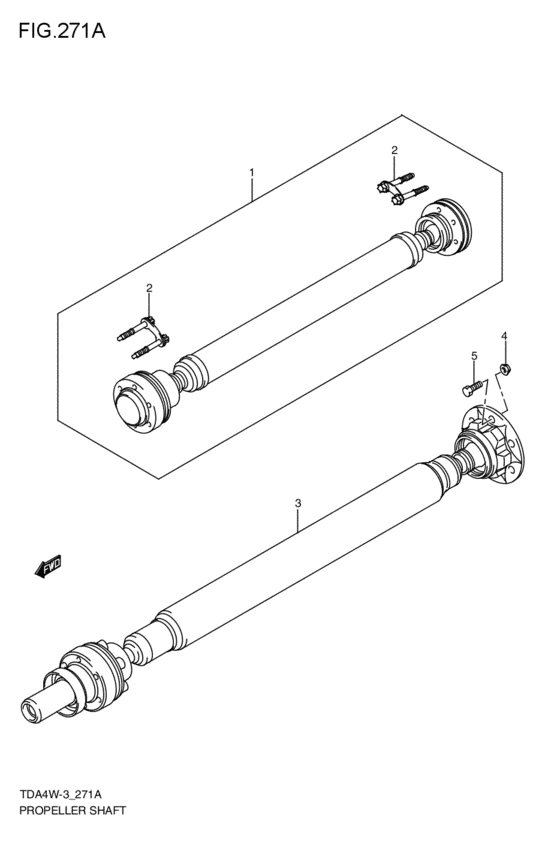

propeller shaft (2008-04-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 27101-67J01-000 | SHAFT ASSY,PROPELLER FRONT |
| 2 | 27250-67J00-000 | BOLT&WASHER ASSY |
| 3 | 27102-80K10-000 | SHAFT ASSY,PROPELLER REAR |
| 3 | 27102-80K30-000 | SHAFT ASSY,PROPELLER REAR |
| 4 | 08316-1010A-000 | NUT - Nut, kick starter |
| 5 | 01500-1035A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01500-1035A-000 | Bolt | propeller shaft (2008-04-01~) |
| 08316-1010A-000 | NUT - Nut, kick starter | propeller shaft (2008-04-01~) |
| 27101-67J01-000 | SHAFT ASSY,PROPELLER FRONT | propeller shaft (2008-04-01~) |
| 27102-80K10-000 | SHAFT ASSY,PROPELLER REAR | propeller shaft (2008-04-01~) |
| 27102-80K30-000 | SHAFT ASSY,PROPELLER REAR | propeller shaft (2008-04-01~) |
| 27250-67J00-000 | BOLT&WASHER ASSY | propeller shaft (2008-04-01~) |
