TDB4W

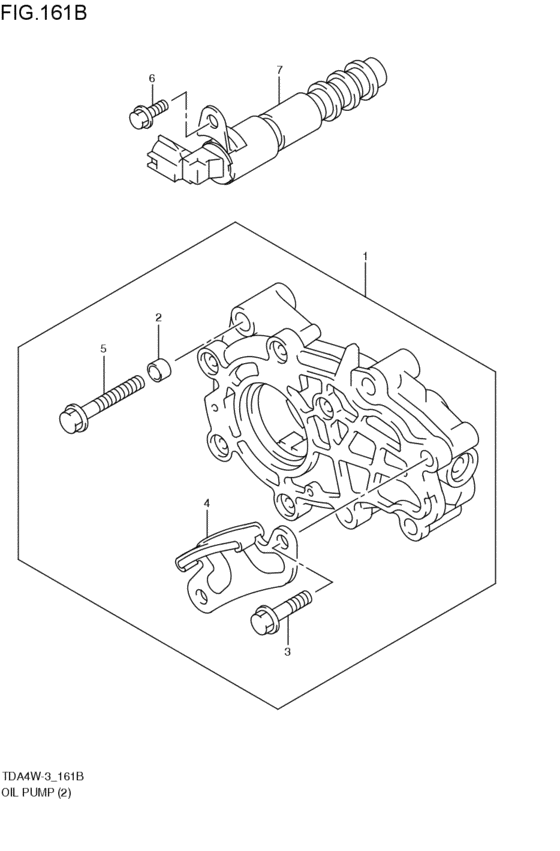

Oil pump (N32Aエンジン; N32A; 2008-04-01~) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 16100-78J00-000 | Pump assy,oil |
| 1 | 16100-78J01-000 | PUMP ASSY,OIL |
| 4 | 12774-78J00-000 | GUIDE,TIMING CHAIN LWR |
| 7 | 16550-78J01-000 | Valve,oil control |
| 7 | 16550-78J02-000 | VALVE,OIL CONTROL |
| OEM | Part name | Category |
|---|---|---|
| 12774-78J00-000 | GUIDE,TIMING CHAIN LWR | Oil pump (N32Aエンジン; N32A; 2008-04-01~) |
| 16100-78J00-000 | Pump assy,oil | Oil pump (N32Aエンジン; N32A; 2008-04-01~) |
| 16100-78J01-000 | PUMP ASSY,OIL | Oil pump (N32Aエンジン; N32A; 2008-04-01~) |
| 16550-78J01-000 | Valve,oil control | Oil pump (N32Aエンジン; N32A; 2008-04-01~) |
| 16550-78J02-000 | VALVE,OIL CONTROL | Oil pump (N32Aエンジン; N32A; 2008-04-01~) |
