Search › Model › TDB4W
TDB4W

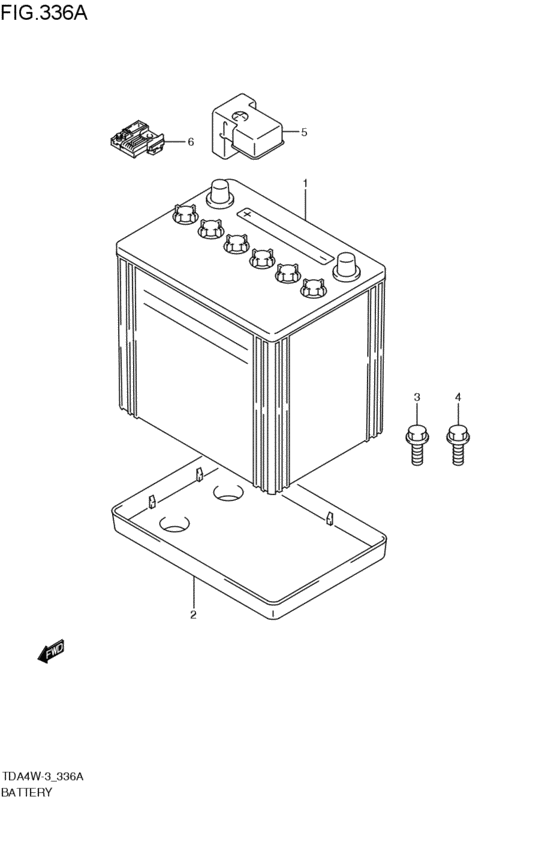

battery (2008-04-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-77E21-000 | Battery assy |
| 1 | 33610-77EV8-000 | BATTERY ASSY,75D23L (Cannot be supplied) |
| 2 | 33660-65J00-000 | TRAY,BATTERY |
| 3 | 09115-06005-000 | BOLT(6X16) |
| 4 | 01550-0816A-000 | Bolt - Bolt, rear |
| 5 | 36694-64J00-000 | COVER,BTRY TERMINAL |
| 6 | 36739-66J00-000 | FUSE,BATTERY CABLE 120A |
| OEM | Part name | Category |
|---|---|---|
| 01550-0816A-000 | Bolt - Bolt, rear | battery (2008-04-01~) |
| 09115-06005-000 | BOLT(6X16) | battery (2008-04-01~) |
| 33610-77E21-000 | Battery assy | battery (2008-04-01~) |
| 33610-77EV8-000 | BATTERY ASSY,75D23L (Cannot be supplied) | battery (2008-04-01~) |
| 33660-65J00-000 | TRAY,BATTERY | battery (2008-04-01~) |
| 36694-64J00-000 | COVER,BTRY TERMINAL | battery (2008-04-01~) |
| 36739-66J00-000 | FUSE,BATTERY CABLE 120A | battery (2008-04-01~) |
