Search › Model › TDA4W

TDA4W

Suzuki ESCUDO · 2008 · 2,428 parts · 129 categories

2,428 items

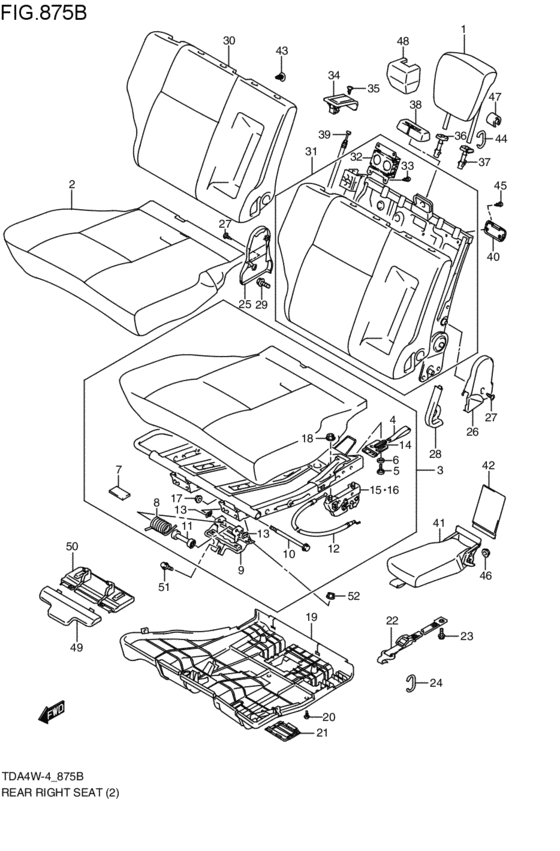

rear light sheet (AT; 2010-01-01~) 59

#	OEM	Part name
1	86401-66J10-ENB	Headrestraint assy,rr(black)
1	86401-66J11-JVD	HEADRESTRAINT ASSY,RR
2	87180-66J01-FCE	Trim comp,rr cush,r
2	87180-66J01-JVC	TRIM,RR CUSHION,R
2	87180-66J02-JVC	TRIM,RR CUSHION,R
3	87105-66J01-000	Cushion s/assy,rr,r
3	87105-66J02-000	CUSHION S/ASSY,RR,R
4	87141-66J00-000	LEVER,RR LOCK
5	87142-66J00-000	BOLT,RR LOCK LEVER
6	87143-66J00-000	WASHER,RR LOCK LEVER
7	87144-66J00-000	SILENCER,RR CUSH
8	87148-79K00-000	SPRING,RR CUSH LEG
9	87150-66J00-000	LEG,RR CUSH
10	87153-63J01-000	BOLT,RR CUSH LEG
11	87149-66J00-000	COLLAR,SPRING
12	87154-66J00-000	CABLE,RR LOCK
13	87157-66J00-000	BUSH,RR CUSH LEG
14	87159-66J02-000	BUSH,RR LOCK LEVER
15	87460-66J00-000	Lock assy,rr cush inside,r
15	87460-66J01-000	LOCK ASSY,RR CUSH INSIDE,R
16	87460-66J10-000	Lock assy,rr cush outside,r
16	87460-66J11-000	LOCK ASSY,RR CUSH OUTSIDE,R
17	08316-1008A-000	NUT - Nut, idle gear shaft
18	08316-1010A-000	NUT - Nut, kick starter
19	87175-66J00-5PK	COVER,RR CUSH BOTTOM,R
20	03241-0510A-000	SCREW
21	87176-66J00-5PK	CAP,RR CUSH BOTTOM,R
22	87270-66J00-000	BAND,RR SEAT
23	03141-0616A-000	SCREW
24	09387-19001-000	RING
25	87221-66J00-5PK	COVER,RR OUTSIDE,R
26	87241-79K00-5PK	COVER,RR RCLNG INSIDE,R
28	87242-79K00-000	PROTECTOR,RR RCLNG INSIDE,R
29	01551-1225A-000	Bolt
30	87380-66J00-FCE	Trim comp,rr back,r
30	87380-66J01-JVC	TRIM,RR BACK,R
30	87380-66J02-JVC	Trim,rr Back,r
31	87305-79K40-000	BACK S/ASSY,RR,R
32	87375-79K00-000	DAMPER,RR SEAT BACK
33	02142-0612A-000	SCREW
34	87290-65J00-5PK	HANDLE,RCLNG
36	85341-63J10-P4Z	GUIDE,HEADRESTRAINT
36	85341-63J11-P4Z	GUIDE,HEADRESTRAINT
36	85341-63J12-P4Z	Guide,headrestraint
37	85840-63J10-P4Z	GUIDE,HEADRESTRAINT
37	85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT
37	85840-63J12-P4Z	Guide Comp,headrestraint
38	87227-66J00-5PK	COVER,SHOULDER ANCHOR
39	87294-66J00-000	CABLE,RCLNG RELEASE
40	87428-65DA0-5PK	STRIKER,TONNEAU COVER
41	87501-66J00-U7S	ARMREST ASSY,RR
41	87501-66J02-U7S	Armrest Assy,rr
42	87541-66J00-5PK	COVER,RR ARMREST HOLE
43	09409-10302-5PK	CLIP(BLACK)
47	87359-66J00-000	CAP
48	87361-79K00-000	COVER,RR ELR
49	87491-66J00-5PK	COVER,RR CUSH HINGE FR
50	87492-66J00-5PK	COVER,RR CUSH HINGE RR
51	01551-1020A-000	Bolt

OEM	Part name	Category
01551-1020A-000	Bolt	rear light sheet (AT; 2010-01-01~)
01551-1225A-000	Bolt	rear light sheet (AT; 2010-01-01~)
02142-0612A-000	SCREW	rear light sheet (AT; 2010-01-01~)
03141-0616A-000	SCREW	rear light sheet (AT; 2010-01-01~)
03241-0510A-000	SCREW	rear light sheet (AT; 2010-01-01~)
08316-1008A-000	NUT - Nut, idle gear shaft	rear light sheet (AT; 2010-01-01~)
08316-1010A-000	NUT - Nut, kick starter	rear light sheet (AT; 2010-01-01~)
09387-19001-000	RING	rear light sheet (AT; 2010-01-01~)
09409-10302-5PK	CLIP(BLACK)	rear light sheet (AT; 2010-01-01~)
85341-63J10-P4Z	GUIDE,HEADRESTRAINT	rear light sheet (AT; 2010-01-01~)
85341-63J11-P4Z	GUIDE,HEADRESTRAINT	rear light sheet (AT; 2010-01-01~)
85341-63J12-P4Z	Guide,headrestraint	rear light sheet (AT; 2010-01-01~)
85840-63J10-P4Z	GUIDE,HEADRESTRAINT	rear light sheet (AT; 2010-01-01~)
85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT	rear light sheet (AT; 2010-01-01~)
85840-63J12-P4Z	Guide Comp,headrestraint	rear light sheet (AT; 2010-01-01~)
86401-66J10-ENB	Headrestraint assy,rr(black)	rear light sheet (AT; 2010-01-01~)
86401-66J11-JVD	HEADRESTRAINT ASSY,RR	rear light sheet (AT; 2010-01-01~)
87105-66J01-000	Cushion s/assy,rr,r	rear light sheet (AT; 2010-01-01~)
87105-66J02-000	CUSHION S/ASSY,RR,R	rear light sheet (AT; 2010-01-01~)
87141-66J00-000	LEVER,RR LOCK	rear light sheet (AT; 2010-01-01~)
87142-66J00-000	BOLT,RR LOCK LEVER	rear light sheet (AT; 2010-01-01~)
87143-66J00-000	WASHER,RR LOCK LEVER	rear light sheet (AT; 2010-01-01~)
87144-66J00-000	SILENCER,RR CUSH	rear light sheet (AT; 2010-01-01~)
87148-79K00-000	SPRING,RR CUSH LEG	rear light sheet (AT; 2010-01-01~)
87149-66J00-000	COLLAR,SPRING	rear light sheet (AT; 2010-01-01~)
87150-66J00-000	LEG,RR CUSH	rear light sheet (AT; 2010-01-01~)
87153-63J01-000	BOLT,RR CUSH LEG	rear light sheet (AT; 2010-01-01~)
87154-66J00-000	CABLE,RR LOCK	rear light sheet (AT; 2010-01-01~)
87157-66J00-000	BUSH,RR CUSH LEG	rear light sheet (AT; 2010-01-01~)
87159-66J02-000	BUSH,RR LOCK LEVER	rear light sheet (AT; 2010-01-01~)
87175-66J00-5PK	COVER,RR CUSH BOTTOM,R	rear light sheet (AT; 2010-01-01~)
87176-66J00-5PK	CAP,RR CUSH BOTTOM,R	rear light sheet (AT; 2010-01-01~)
87180-66J01-FCE	Trim comp,rr cush,r	rear light sheet (AT; 2010-01-01~)
87180-66J01-JVC	TRIM,RR CUSHION,R	rear light sheet (AT; 2010-01-01~)
87180-66J02-JVC	TRIM,RR CUSHION,R	rear light sheet (AT; 2010-01-01~)
87221-66J00-5PK	COVER,RR OUTSIDE,R	rear light sheet (AT; 2010-01-01~)
87227-66J00-5PK	COVER,SHOULDER ANCHOR	rear light sheet (AT; 2010-01-01~)
87241-79K00-5PK	COVER,RR RCLNG INSIDE,R	rear light sheet (AT; 2010-01-01~)
87242-79K00-000	PROTECTOR,RR RCLNG INSIDE,R	rear light sheet (AT; 2010-01-01~)
87270-66J00-000	BAND,RR SEAT	rear light sheet (AT; 2010-01-01~)
87290-65J00-5PK	HANDLE,RCLNG	rear light sheet (AT; 2010-01-01~)
87294-66J00-000	CABLE,RCLNG RELEASE	rear light sheet (AT; 2010-01-01~)
87305-79K40-000	BACK S/ASSY,RR,R	rear light sheet (AT; 2010-01-01~)
87359-66J00-000	CAP	rear light sheet (AT; 2010-01-01~)
87361-79K00-000	COVER,RR ELR	rear light sheet (AT; 2010-01-01~)
87375-79K00-000	DAMPER,RR SEAT BACK	rear light sheet (AT; 2010-01-01~)
87380-66J00-FCE	Trim comp,rr back,r	rear light sheet (AT; 2010-01-01~)
87380-66J01-JVC	TRIM,RR BACK,R	rear light sheet (AT; 2010-01-01~)
87380-66J02-JVC	Trim,rr Back,r	rear light sheet (AT; 2010-01-01~)
87428-65DA0-5PK	STRIKER,TONNEAU COVER	rear light sheet (AT; 2010-01-01~)
87460-66J00-000	Lock assy,rr cush inside,r	rear light sheet (AT; 2010-01-01~)
87460-66J01-000	LOCK ASSY,RR CUSH INSIDE,R	rear light sheet (AT; 2010-01-01~)
87460-66J10-000	Lock assy,rr cush outside,r	rear light sheet (AT; 2010-01-01~)
87460-66J11-000	LOCK ASSY,RR CUSH OUTSIDE,R	rear light sheet (AT; 2010-01-01~)
87491-66J00-5PK	COVER,RR CUSH HINGE FR	rear light sheet (AT; 2010-01-01~)
87492-66J00-5PK	COVER,RR CUSH HINGE RR	rear light sheet (AT; 2010-01-01~)
87501-66J00-U7S	ARMREST ASSY,RR	rear light sheet (AT; 2010-01-01~)
87501-66J02-U7S	Armrest Assy,rr	rear light sheet (AT; 2010-01-01~)
87541-66J00-5PK	COVER,RR ARMREST HOLE	rear light sheet (AT; 2010-01-01~)

Source: Public OEM parts-catalog data
Variants: 2 / 21
Category: 129
Collected: 2026-08-01
