Search › Model › TDA4W

TDA4W

Suzuki ESCUDO · 2008 · 2,428 parts · 129 categories

2,428 items

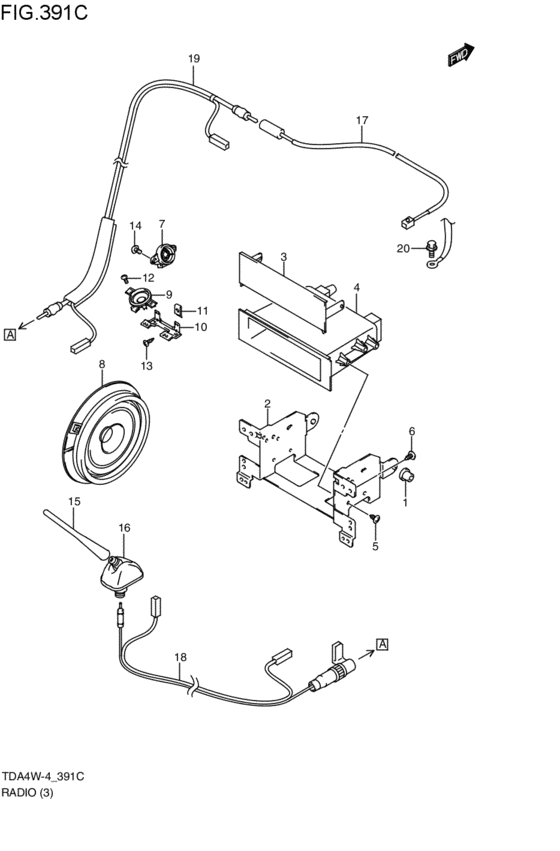

radio (XGV; 2010-01-01~) 21

#	OEM	Part name
1	34955-54G10-000	BUSH,RADIO BRKT
2	39321-65J10-000	BRACKET,TUNER
3	39161-80J00-000	COVER,RADIO HOLE
4	39182-80J00-000	Pocket,tuner
4	39182-80J10-000	POCKET,TUNER
5	03241-0512A-000	SCREW
6	03541-0516A-000	SCREW
7	39102-65J20-000	SPEAKER ASSY,TWEETER
8	39102-65J30-000	SPEAKER ASSY
9	39102-68HA0-000	SPEAKER ASSY,CTR
10	39350-76K00-000	BRACKET,CTR SPKR
11	09148-05045-000	NUT
12	02142-0512A-000	SCREW - Screw, lower
13	03141-0512A-000	SCREW - Screw, belt cooling duct
14	03541-0410A-000	SCREW
15	39251-63J00-000	ROD,ANTENNA
16	39253-65JA0-000	ベース,アンテナ
17	39270-64JA0-000	FEEDER,ANT I/P
18	39271-66JD0-000	FEEDER,ANT BACK
19	39271-76KB0-000	FEEDER,ANT ROOF
20	09115-06005-000	BOLT(6X16)

OEM	Part name	Category
02142-0512A-000	SCREW - Screw, lower	radio (XGV; 2010-01-01~)
03141-0512A-000	SCREW - Screw, belt cooling duct	radio (XGV; 2010-01-01~)
03241-0512A-000	SCREW	radio (XGV; 2010-01-01~)
03541-0410A-000	SCREW	radio (XGV; 2010-01-01~)
03541-0516A-000	SCREW	radio (XGV; 2010-01-01~)
09115-06005-000	BOLT(6X16)	radio (XGV; 2010-01-01~)
09148-05045-000	NUT	radio (XGV; 2010-01-01~)
34955-54G10-000	BUSH,RADIO BRKT	radio (XGV; 2010-01-01~)
39102-65J20-000	SPEAKER ASSY,TWEETER	radio (XGV; 2010-01-01~)
39102-65J30-000	SPEAKER ASSY	radio (XGV; 2010-01-01~)
39102-68HA0-000	SPEAKER ASSY,CTR	radio (XGV; 2010-01-01~)
39161-80J00-000	COVER,RADIO HOLE	radio (XGV; 2010-01-01~)
39182-80J00-000	Pocket,tuner	radio (XGV; 2010-01-01~)
39182-80J10-000	POCKET,TUNER	radio (XGV; 2010-01-01~)
39251-63J00-000	ROD,ANTENNA	radio (XGV; 2010-01-01~)
39253-65JA0-000	ベース,アンテナ	radio (XGV; 2010-01-01~)
39270-64JA0-000	FEEDER,ANT I/P	radio (XGV; 2010-01-01~)
39271-66JD0-000	FEEDER,ANT BACK	radio (XGV; 2010-01-01~)
39271-76KB0-000	FEEDER,ANT ROOF	radio (XGV; 2010-01-01~)
39321-65J10-000	BRACKET,TUNER	radio (XGV; 2010-01-01~)
39350-76K00-000	BRACKET,CTR SPKR	radio (XGV; 2010-01-01~)
