TDA4W

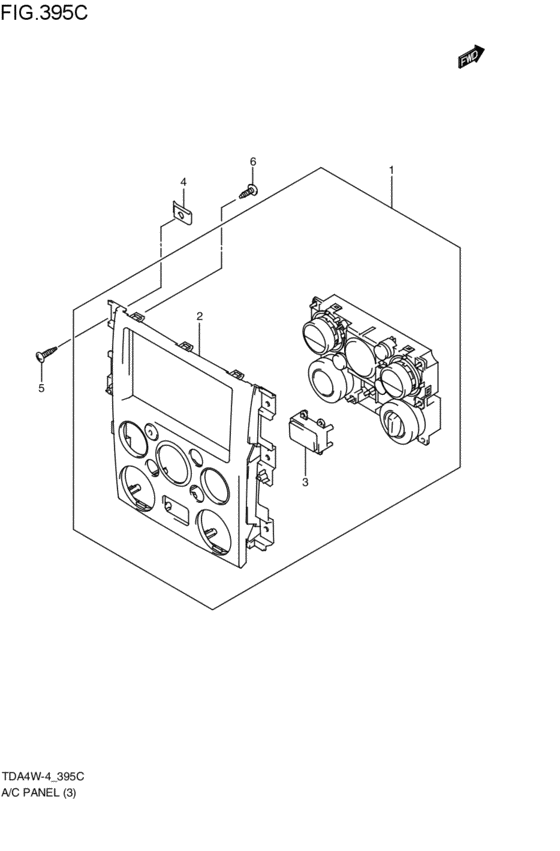

air-conditioner panel (XGV; 2010-01-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 39510-76KB0-CAT | パネルユニット,オートエアコン |
| 2 | 39511-67J10-ZCA | GARNISH,PNL CTR |
| 3 | 39516-76K00-ZCA | CAP,PANEL |
| 4 | 09148-05045-000 | NUT |
| 5 | 03141-0516A-000 | SCREW |
| 6 | 03541-0512A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03141-0516A-000 | SCREW | air-conditioner panel (XGV; 2010-01-01~) |
| 03541-0512A-000 | SCREW | air-conditioner panel (XGV; 2010-01-01~) |
| 09148-05045-000 | NUT | air-conditioner panel (XGV; 2010-01-01~) |
| 39510-76KB0-CAT | パネルユニット,オートエアコン | air-conditioner panel (XGV; 2010-01-01~) |
| 39511-67J10-ZCA | GARNISH,PNL CTR | air-conditioner panel (XGV; 2010-01-01~) |
| 39516-76K00-ZCA | CAP,PANEL | air-conditioner panel (XGV; 2010-01-01~) |
