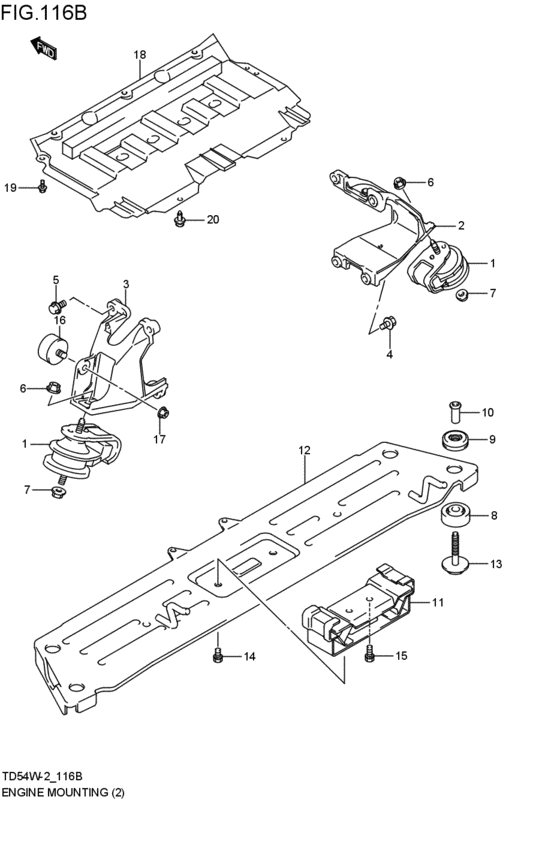

| 01560-1016A-000 |
Bolt |
engine mounting (H27A; 2006-06-01~) |
| 01560-1025A-000 |
Bolt |
engine mounting (H27A; 2006-06-01~) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
engine mounting (H27A; 2006-06-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
engine mounting (H27A; 2006-06-01~) |
| 09111-06094-000 |
BOLT(6X16.5) |
engine mounting (H27A; 2006-06-01~) |
| 09116-10132-000 |
BOLT(10X76) |
engine mounting (H27A; 2006-06-01~) |
| 09116-10140-000 |
BOLT(10X33) |
engine mounting (H27A; 2006-06-01~) |
| 09159-10116-000 |
NUT |
engine mounting (H27A; 2006-06-01~) |
| 09409-07332-000 |
CLIP |
engine mounting (H27A; 2006-06-01~) |
| 11610-66J00-000 |
Mounting,engine front |
engine mounting (H27A; 2006-06-01~) |
| 11610-66J01-000 |
MOUNTING,ENG FR |
engine mounting (H27A; 2006-06-01~) |
| 11641-66J00-000 |
BRACKET,ENG FR MTG,R |
engine mounting (H27A; 2006-06-01~) |
| 11651-66J00-000 |
BRACKET,ENG FR MTG,L |
engine mounting (H27A; 2006-06-01~) |
| 11684-65J00-000 |
CUSHION,MTG MEMBER LOWER |
engine mounting (H27A; 2006-06-01~) |
| 11686-65J00-000 |
CUSHION,MTG MEMBER UPPER |
engine mounting (H27A; 2006-06-01~) |
| 11687-67H00-000 |
COLLAR,MTG MEMBER |
engine mounting (H27A; 2006-06-01~) |
| 11710-65J00-000 |
MOUNTING,ENG RR |
engine mounting (H27A; 2006-06-01~) |
| 11730-65J00-000 |
MEMBER COMPENG REAR MTG |
engine mounting (H27A; 2006-06-01~) |
| 11730-65J01-000 |
MEMBER,ENG RR MTG |
engine mounting (H27A; 2006-06-01~) |
| 13180-65J00-000 |
COVER,ENGINE UNDER |
engine mounting (H27A; 2006-06-01~) |
| 46315-80GA0-000 |
DAMPER,L MTG |
engine mounting (H27A; 2006-06-01~) |
