| 01421-08353-000 |
Bolt, stud - Stud bolt |

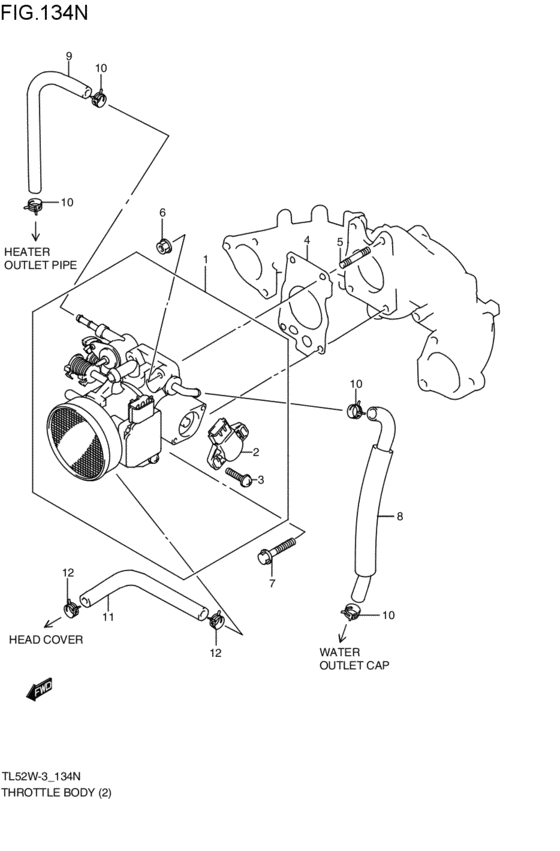

throttle body (H25A; 2002-11-01~2003-05-01) |
| 01421-0835A-000 |
BOLT,STUD - Stud bolt (8x35) |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 01550-08403-000 |
Bolt |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 01550-0840A-000 |
Bolt |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 01550-0840B-000 |
Bolt |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 02112-74203-000 |
SCREW |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 08316-10083-000 |
Nut |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 08316-1008B-000 |
NUT |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 09355-13207-600 |
HOSE(13X20X600) - Hose, breather |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 09356-75141-600 |
HOSE(7.5X14.5X600) |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 09401-12410-000 |
CLIP - Clip, filter outlet |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 09401-18404-000 |
CLIP |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 11190-77810-000 |
HOSE&PIPE SET,PCV H25 |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 13400-67D00-000 |
BODY ASSY,THROTTLE |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 13420-77E00-000 |
SENSOR,THROTTLE POSITION |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 13421-77E00-000 |
GASKET,THROTTLE BODY |
throttle body (H25A; 2002-11-01~2003-05-01) |
| 13428-67D00-000 |
スクリュ,スロットルポジションセンサー,4X20 |
throttle body (H25A; 2002-11-01~2003-05-01) |
