Search › Model › TD62W

TD62W

Suzuki ESCUDO · 1998 · 3,328 parts · 250 categories

3,328 items

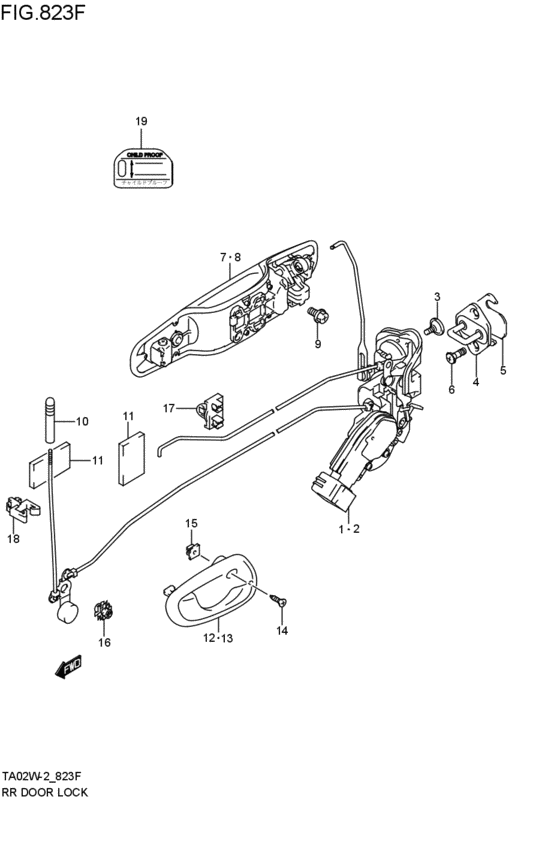

rear door lock (5DR; 2000-04-01~2002-09-01) 31

#	OEM	Part name
1	82301-65D10-000	ラッチアッシ,リヤドア,ライト
1	82301-65D11-000	LATCH ASSY,RR DR,R
2	82302-65D10-000	LATCH ASSY DOOR LH
2	82302-65D11-000	LATCH ASSY,RR DR,L
3	82291-65D00-000	スクリュ,ドアラッチ
3	82291-65D01-000	SCREW
4	82610-60A01-000	STRIKER,FR DOOR LATCH
5	78199-78000-000	SPACER,DOOR LOCK STRIKER
6	09137-08011-000	SCREW(8X18)
7	82810-65D10-ZA5	HANDLE,SIDE DOOR OUT,R
7	82810-65D10-Z2S	HANDLE,SIDE DOOR OUT,R
7	82810-65D10-Z2U	HANDLE,SIDE DOOR OUT,R
8	82820-65D10-ZA5	HANDLE,SIDE DOOR OUT,L
8	82820-65D10-Z2S	HANDLE,SIDE DOOR OUT,L
8	82820-65D10-Z2U	HANDLE,SIDE DOOR OUT,L
9	02162-06123-000	Bolt (6x12)
9	02162-0612B-000	SCREW - Bolt
9	02162-0612A-000	SCREW - Bolt, bracket
10	82982-65D00-T01	KNOB,SIDE DR INS LOCK - Knob, inside lock (gray)
11	77591-75000-000	PAD
12	83110-76G00-T01	HANDLE,SIDE DR INSIDE,R(GRAY)
12	83110-76G01-T01	HANDLE,SIDE DR INSIDE,R
13	83130-76G00-T01	HANDLE,SIDE DR INSIDE,L(GRAY)
13	83130-76G01-T01	HANDLE,SIDE DR INSIDE,L
14	03121-05163-000	Screw
14	03121-0516A-000	SCREW
15	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
16	83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD
17	83271-50E00-000	CLIP,DR HANDLE ROD
18	09403-07324-000	CLAMP
19	86951-78004-000	CAUTION PLATE,CHILD PROOF

OEM	Part name	Category
02162-06123-000	Bolt (6x12)	rear door lock (5DR; 2000-04-01~2002-09-01)
02162-0612A-000	SCREW - Bolt, bracket	rear door lock (5DR; 2000-04-01~2002-09-01)
02162-0612B-000	SCREW - Bolt	rear door lock (5DR; 2000-04-01~2002-09-01)
03121-05163-000	Screw	rear door lock (5DR; 2000-04-01~2002-09-01)
03121-0516A-000	SCREW	rear door lock (5DR; 2000-04-01~2002-09-01)
09137-08011-000	SCREW(8X18)	rear door lock (5DR; 2000-04-01~2002-09-01)
09403-07324-000	CLAMP	rear door lock (5DR; 2000-04-01~2002-09-01)
77591-75000-000	PAD	rear door lock (5DR; 2000-04-01~2002-09-01)
78199-78000-000	SPACER,DOOR LOCK STRIKER	rear door lock (5DR; 2000-04-01~2002-09-01)
82291-65D00-000	スクリュ,ドアラッチ	rear door lock (5DR; 2000-04-01~2002-09-01)
82291-65D01-000	SCREW	rear door lock (5DR; 2000-04-01~2002-09-01)
82301-65D10-000	ラッチアッシ,リヤドア,ライト	rear door lock (5DR; 2000-04-01~2002-09-01)
82301-65D11-000	LATCH ASSY,RR DR,R	rear door lock (5DR; 2000-04-01~2002-09-01)
82302-65D10-000	LATCH ASSY DOOR LH	rear door lock (5DR; 2000-04-01~2002-09-01)
82302-65D11-000	LATCH ASSY,RR DR,L	rear door lock (5DR; 2000-04-01~2002-09-01)
82610-60A01-000	STRIKER,FR DOOR LATCH	rear door lock (5DR; 2000-04-01~2002-09-01)
82810-65D10-Z2S	HANDLE,SIDE DOOR OUT,R	rear door lock (5DR; 2000-04-01~2002-09-01)
82810-65D10-Z2U	HANDLE,SIDE DOOR OUT,R	rear door lock (5DR; 2000-04-01~2002-09-01)
82810-65D10-ZA5	HANDLE,SIDE DOOR OUT,R	rear door lock (5DR; 2000-04-01~2002-09-01)
82820-65D10-Z2S	HANDLE,SIDE DOOR OUT,L	rear door lock (5DR; 2000-04-01~2002-09-01)
82820-65D10-Z2U	HANDLE,SIDE DOOR OUT,L	rear door lock (5DR; 2000-04-01~2002-09-01)
82820-65D10-ZA5	HANDLE,SIDE DOOR OUT,L	rear door lock (5DR; 2000-04-01~2002-09-01)
82982-65D00-T01	KNOB,SIDE DR INS LOCK - Knob, inside lock (gray)	rear door lock (5DR; 2000-04-01~2002-09-01)
83110-76G00-T01	HANDLE,SIDE DR INSIDE,R(GRAY)	rear door lock (5DR; 2000-04-01~2002-09-01)
83110-76G01-T01	HANDLE,SIDE DR INSIDE,R	rear door lock (5DR; 2000-04-01~2002-09-01)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	rear door lock (5DR; 2000-04-01~2002-09-01)
83130-76G00-T01	HANDLE,SIDE DR INSIDE,L(GRAY)	rear door lock (5DR; 2000-04-01~2002-09-01)
83130-76G01-T01	HANDLE,SIDE DR INSIDE,L	rear door lock (5DR; 2000-04-01~2002-09-01)
83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD	rear door lock (5DR; 2000-04-01~2002-09-01)
83271-50E00-000	CLIP,DR HANDLE ROD	rear door lock (5DR; 2000-04-01~2002-09-01)
86951-78004-000	CAUTION PLATE,CHILD PROOF	rear door lock (5DR; 2000-04-01~2002-09-01)
