| 01550-08253-000 |
Bolt, rear |

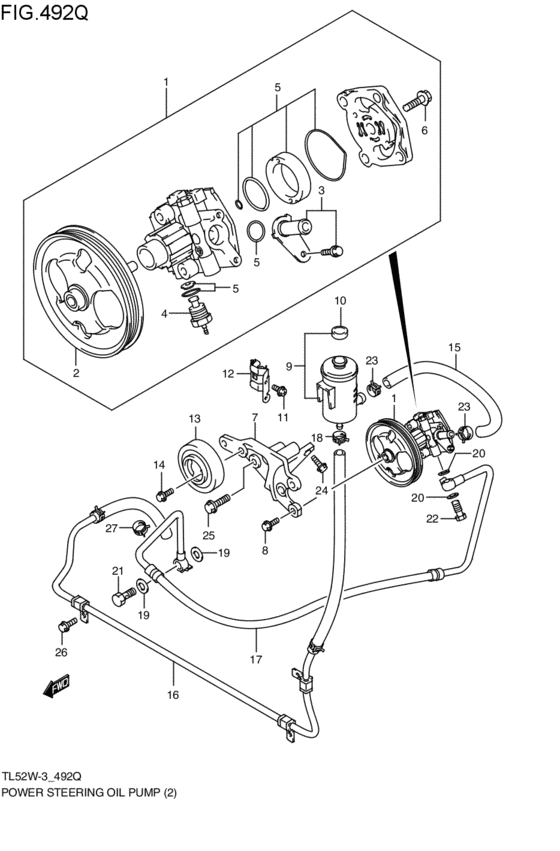

power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 01550-0825A-000 |
Bolt |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 01550-0825B-000 |
Bolt |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 01550-10253-000 |
Bolt - Bolt, rr swgarm bracket |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 01550-1025A-000 |
Bolt - Bolt, drive gear |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 01550-1025B-000 |
Bolt - Bolt, rr swgarm bracket, l |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 01550-10603-000 |
Bolt |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 01550-1060A-000 |
Bolt |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 01550-1060B-000 |
Bolt |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 02162-06123-000 |
Bolt (6x12) |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 02162-0612B-000 |
SCREW - Bolt |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 02162-06163-000 |
Screw - Bolt |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 09103-08071-000 |
BOLT(8X36) |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 09168-14014-000 |
GASKET(14X18X1.5) |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 09168-16002-000 |
GASKET(16X22X2) |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 09360-14011-000 |
UNION |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 09360-16003-000 |
UNION |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 09401-15404-000 |
CLIP |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 09401-20405-000 |
CLIP - Clip, tank |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49100-65D30-000 |
PUMP ASSY,POWER STEERING |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49111-65D30-000 |
PULLEY SET |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49112-65D30-000 |
CONNECTOR SET |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49113-65D00-000 |
TERMINAL SET |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49114-56B30-000 |
SEAL SET |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49115-56B30-000 |
BOLT SET |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49120-65D30-000 |
BRACKET,POWER STRG PUMP |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49140-54J00-000 |
Tank assy,power steering oil |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49140-54J01-000 |
TANK ASSY,POWER STRG OIL |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49142-65D00-000 |
CAP,PS OIL TANK |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49150-65D31-000 |
BRACKET,PS RESERVE TANK |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49160-77E01-000 |
PULLEY,BELT TENSION |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49214-65D30-000 |
HOSE,SUCTION |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49220-65D30-000 |
HOSE ASSY,RETURN |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49225-65D10-000 |
CLAMP,RETURN GEAR SIDE |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
| 49230-65D31-000 |
HOSE,PRESSURE |
power steering oil pump (H25A; 2002-11-01~2003-05-01) |
