| 01550-08203-000 |
Bolt |

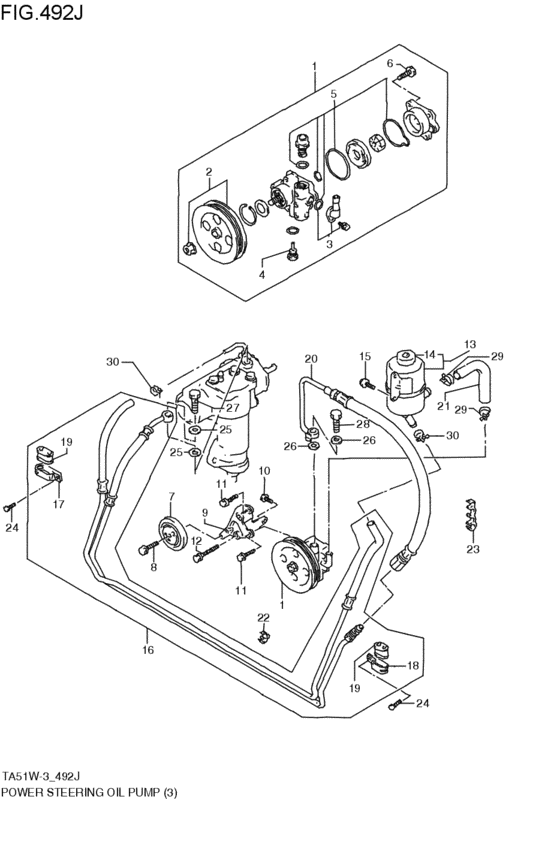

power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 01550-0820A-000 |
Bolt - Bolt, funnel bracket |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 01550-0820B-000 |
Bolt |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 01550-10253-000 |
Bolt - Bolt, rr swgarm bracket |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 01550-1025A-000 |
Bolt - Bolt, drive gear |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 01550-1025B-000 |
Bolt - Bolt, rr swgarm bracket, l |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 01550-10603-000 |
Bolt |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 01550-1060A-000 |
Bolt |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 01550-1060B-000 |
Bolt |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 02162-06123-000 |
Bolt (6x12) |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 02162-0612B-000 |
SCREW - Bolt |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09103-08107-000 |
BOLT(8X33) - Bolt,outer |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09168-14009-000 |
Washer |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09168-14011-000 |
GASKET(14X20X1.5) |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09168-14014-000 |
GASKET(14X18X1.5) |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09168-16002-000 |
GASKET(16X22X2) |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09360-14011-000 |
UNION |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09360-16003-000 |
UNION |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09400-18302-000 |
CLAMP |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09400-24301-000 |
CLAMP |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 09408-00166-000 |
CLAMP |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49100-77E30-000 |
PUMP ASSY,POWER STEERING |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49111-77E00-000 |
PULLEY SET |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49112-77E00-000 |
JOINT SET,INLET |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49113-77E00-000 |
SWITCH,PRESSURE |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49114-77E00-000 |
SEAL SET |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49115-77E00-000 |
BOLT SET |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49120-77E00-000 |
BRACKET,POWER STRG PUMP |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49140-56B00-000 |
TANK ASSY,POWER STEERING OIL |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49141-60A00-000 |
CAP,TANK |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49160-77E00-000 |
PULLEY BELT TENSIONER |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49160-77E01-000 |
PULLEY,BELT TENSION |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49200-77E00-000 |
HOSE ASSY,PRESSURE&RETURN |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49214-77E00-000 |
HOSE,SUCTION |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49223-77E00-000 |
BRACKET,PIPE,R |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49225-56B00-000 |
CLAMP,PIPE |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49226-77E00-000 |
BRACKET,PIPE |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49227-56B00-000 |
BUSH,PIPE |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
| 49230-77E00-000 |
HOSE,PRESSURE |
power steering oil pump (H25A; 1996-10-01~1997-04-01) |
