Search › Model › TD61W
TD61W

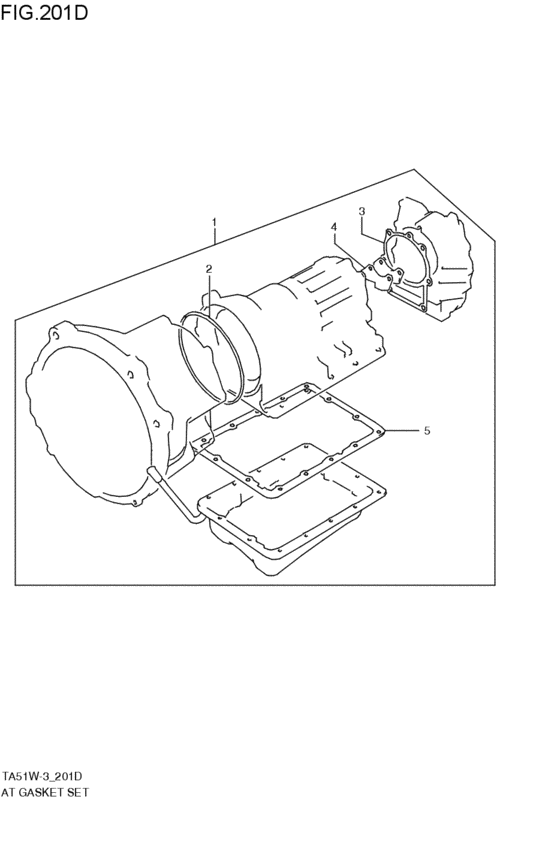

at - gasket set (4AT; 1996-10-01~1997-08-01) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 24780-57BT0-000 | GASKET SET,AT |
| 2 | 29736-57B00-000 | O-RING,HSG T/M CASE |
| 3 | 24784-57B00-000 | GASKET,ADAPTOR T/M CASE |
| 4 | 24783-57B00-000 | GASKET,OIL GALLERY COVER |
| 5 | 24782-57B00-000 | GASKET,T/M OIL PAN |
| OEM | Part name | Category |
|---|---|---|
| 24780-57BT0-000 | GASKET SET,AT | at - gasket set (4AT; 1996-10-01~1997-08-01) |
| 24782-57B00-000 | GASKET,T/M OIL PAN | at - gasket set (4AT; 1996-10-01~1997-08-01) |
| 24783-57B00-000 | GASKET,OIL GALLERY COVER | at - gasket set (4AT; 1996-10-01~1997-08-01) |
| 24784-57B00-000 | GASKET,ADAPTOR T/M CASE | at - gasket set (4AT; 1996-10-01~1997-08-01) |
| 29736-57B00-000 | O-RING,HSG T/M CASE | at - gasket set (4AT; 1996-10-01~1997-08-01) |
