| 09103-06265-000 |
BOLT(6X12) |

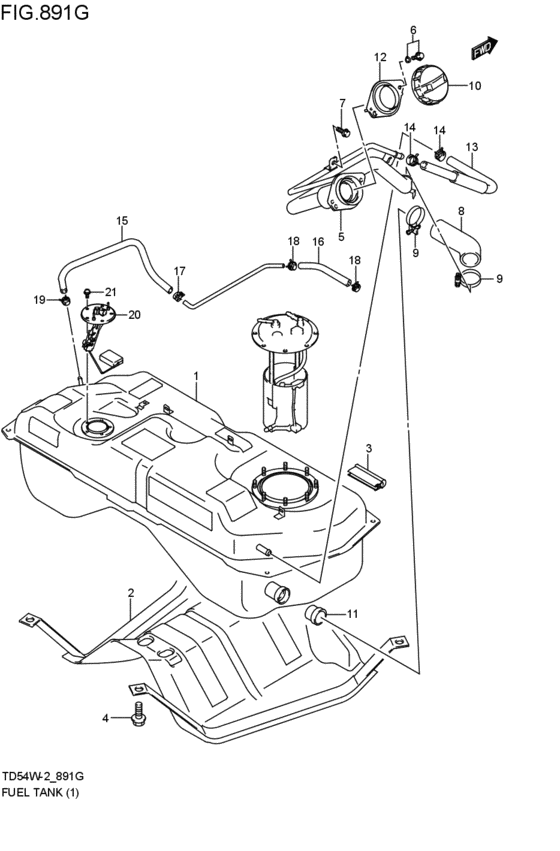

fuel tank (5DR; 2006-06-01~) |
| 09116-05014-000 |
BOLT(5X20) |
fuel tank (5DR; 2006-06-01~) |
| 09118-10073-000 |
BOLT(10X30) |
fuel tank (5DR; 2006-06-01~) |
| 09136-05045-000 |
SCREW(5X10) |
fuel tank (5DR; 2006-06-01~) |
| 09355-54128-600 |
Hose,5.4x12.2x600 |
fuel tank (5DR; 2006-06-01~) |
| 09355-56128-600 |
HOSE(5.6X12.4X600) |
fuel tank (5DR; 2006-06-01~) |
| 09400-45311-000 |
CLAMP |
fuel tank (5DR; 2006-06-01~) |
| 09401-11415-000 |
CLIP |
fuel tank (5DR; 2006-06-01~) |
| 09401-12404-000 |
CLIP |
fuel tank (5DR; 2006-06-01~) |
| 09401-16403-000 |
CLIP - Clip, 2nd air hose no.2 |
fuel tank (5DR; 2006-06-01~) |
| 34810-65J00-000 |
GAUGE ASSY,FUEL LEVEL |
fuel tank (5DR; 2006-06-01~) |
| 89101-65821-000 |
TANK ASSY,FUEL |
fuel tank (5DR; 2006-06-01~) |
| 89190-65J00-000 |
PROTECTOR,FUEL TANK |
fuel tank (5DR; 2006-06-01~) |
| 89201-65J11-000 |
NECK ASSY,FUEL FILLER |
fuel tank (5DR; 2006-06-01~) |
| 89241-65J00-000 |
HOSE,FUEL TANK FILLER |
fuel tank (5DR; 2006-06-01~) |
| 89260-73H00-000 |
CAP ASSY,FUEL FILLER |
fuel tank (5DR; 2006-06-01~) |
| 89270-75F00-000 |
VALVE,FUEL TANK INLET |
fuel tank (5DR; 2006-06-01~) |
| 89285-58J00-000 |
PACKING,FUEL FILLER |
fuel tank (5DR; 2006-06-01~) |
| 89290-65J00-000 |
HOSE,FUEL TANK BREATHER |
fuel tank (5DR; 2006-06-01~) |
| 89442-65J00-000 |
ホース,エバポ |
fuel tank (5DR; 2006-06-01~) |
| 89442-67J00-000 |
HOSE,EVAP |
fuel tank (5DR; 2006-06-01~) |
| 89445-60G00-000 |
PROTECTOR,TANK FLANGE |
fuel tank (5DR; 2006-06-01~) |
| 89445-65J00-000 |
Protector,fuel tank flange |
fuel tank (5DR; 2006-06-01~) |
