Search › Model › TD51W
TD51W

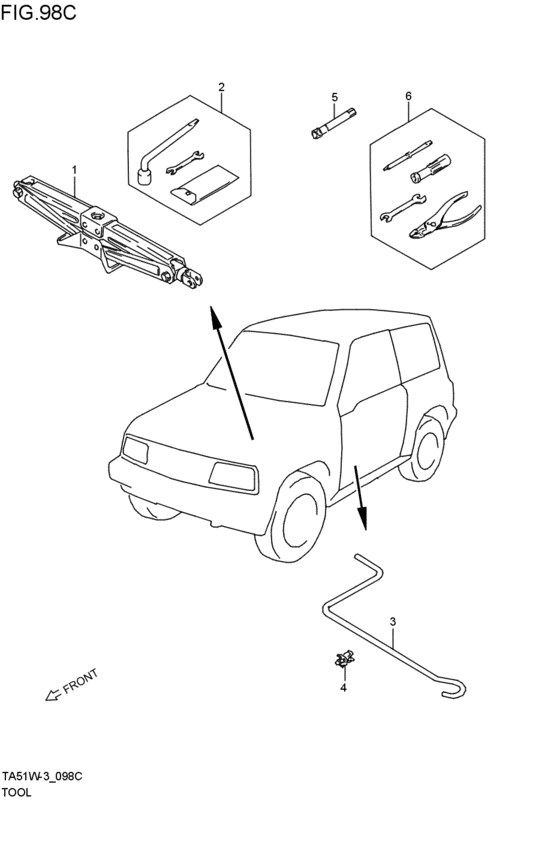

tool (1996-10-01~1997-08-01) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 89913-77E10-000 | ジャッキアッシ |
| 1 | 89913-77EVV-000 | JACK ASSY |
| 1 | 89913-77EV1-000 | JACK COMP |
| 2 | 09800-40029-000 | TOOL ASSY - Wheel wrench: #19, spanner 12x14 |
| 3 | 89931-56B00-000 | HANDLE,JACK |
| 4 | 09403-08323-000 | CLAMP |
| 5 | 09816-00141-000 | BOX,SPANNER(16) |
| 6 | 09800-40030-000 | TOOL ASSY |
| OEM | Part name | Category |
|---|---|---|
| 09403-08323-000 | CLAMP | tool (1996-10-01~1997-08-01) |
| 09800-40029-000 | TOOL ASSY - Wheel wrench: #19, spanner 12x14 | tool (1996-10-01~1997-08-01) |
| 09800-40030-000 | TOOL ASSY | tool (1996-10-01~1997-08-01) |
| 09816-00141-000 | BOX,SPANNER(16) | tool (1996-10-01~1997-08-01) |
| 89913-77E10-000 | ジャッキアッシ | tool (1996-10-01~1997-08-01) |
| 89913-77EV1-000 | JACK COMP | tool (1996-10-01~1997-08-01) |
| 89913-77EVV-000 | JACK ASSY | tool (1996-10-01~1997-08-01) |
| 89931-56B00-000 | HANDLE,JACK | tool (1996-10-01~1997-08-01) |
