Search › Model › TD51W

TD51W

Suzuki ESCUDO · 1996 · 2,695 parts · 116 categories

2,695 items

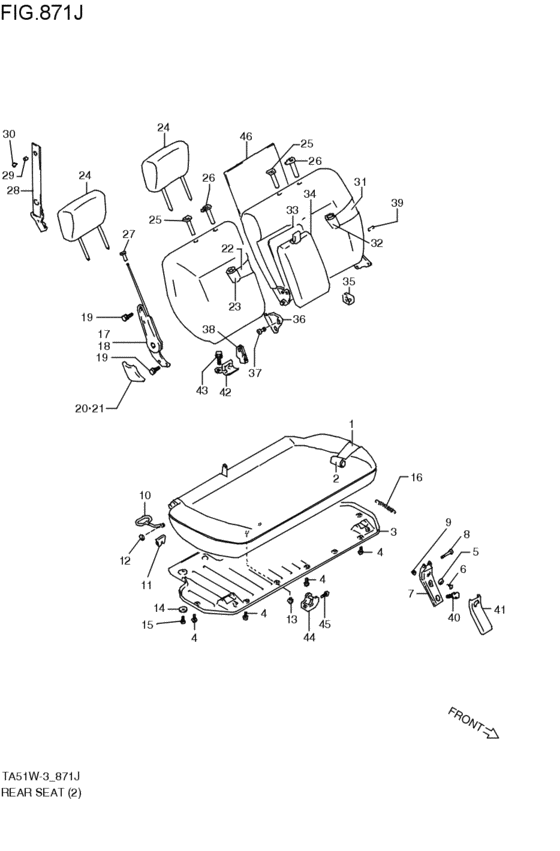

rear seat (5DR; 1996-10-01~1997-08-01) 55

#	OEM	Part name
1	87105-56BB1-000	CUSHION SUB ASSY,REAR SEAT
2	87180-56BB0-J3R	トリム,リヤシートクッション
3	87191-56B11-T61	BOARD,RR SEAT CUSH UND
4	87198-56B10-000	SCREW,REAR SEAT CUSHION BOARD
5	87196-83000-000	CUSHION
6	03241-05103-000	Screw
6	03242-0510B-000	SCREW
7	87250-56B10-000	MALE,RR SEAT HNG
8	87259-56B10-000	PIN,REAR SEAT HINGE
9	09148-06005-000	Nut seat moldin
9	09148-06008-000	NUT - Nut, adjuster knob
10	87281-56B10-000	HANDLE,REAR SEAT LOCK
11	87199-56B10-000	PROTECTOR,RR SEAT LOCK HANDLE
13	87292-65C10-000	CUSHION,REAR SEAT
14	87292-60A30-000	CUSHION,REAR SEAT STOPPER,NO.2
15	02142-06163-000	Screw
15	02142-0616A-000	SCREW
16	09443-14015-000	SPRING
17	87210-56BH0-000	HINGE,RR SEAT BACK,R
18	87610-56BH0-000	HINGE,RR SEAT BACK,L
19	01570-08163-000	Bolt - Bolt, upper
19	01570-0816A-000	Bolt
20	87221-56B11-5PK	COVER,RR SEAT RECLINING LWR,R
21	87621-56B11-5PK	COVER,RR SEAT RECLINING LWR,L
22	87305-56BF0-000	BACK S/ASSY,RR SEAT,R
23	87380-56BG0-J3R	トリム,リヤシートバック,ライト
24	86401-56B52-U26	ヘッドレストレイントアッシ,リヤシート
25	85341-72C10-5PK	GUIDE,HEADRESTRAINT,R
26	85840-72C10-5PK	GUIDE,HEADRESTRAINT,L
27	87211-60A10-T01	KNOB,RR SEAT RECLINING
28	87270-56B20-000	BAND,RR SEAT STOPPER
29	87327-83000-000	COLLAR,SEAT STOPPER BAND
30	03242-05163-000	Screw
30	03241-0516A-000	SCREW
31	87306-56BH0-000	バックサブアッシ,リヤシート,レフト
32	87780-56BH0-J3R	トリム,リヤシートバック,レフト
33	87391-57B10-T02	ボード,リヤシートバックアームレスト(グレー)
34	87401-57B11-U26	アームレストアッシ,リヤシート
35	87499-57B11-5PK	カバー,リヤシートアームレストヒンジ(ブラック)
36	87399-56BF0-5PK	COVER,RR SEAT INNER HINGE
37	87799-56B10-000	BUSH,RR SEAT INNER HINGE
38	87299-56B10-5PK	PROTECTOR,RR CUSH INNER HINGE
39	09387-19001-000	RING
40	01550-08163-000	Bolt, holder
40	01550-0816B-000	Bolt
40	01550-0816A-000	Bolt - Bolt, rear
41	87264-56B10-T01	COVER,RR SEAT HINGE MALE
42	87890-56B10-000	STRIKER,RR SEAT LOCK
43	01550-10203-000	Bolt - Bolt, lower
43	01550-1020A-000	Bolt - Bolt, bal sprocket
44	87831-56B11-000	HANGER,RR SEAT STOPPER BAND
45	02122-06203-000	Screw
45	02122-0620B-000	SCREW
45	02122-0620A-000	SCREW
46	87789-56B11-000	BOARD,RR SEAT BACK UND

OEM	Part name	Category
01550-08163-000	Bolt, holder	rear seat (5DR; 1996-10-01~1997-08-01)
01550-0816A-000	Bolt - Bolt, rear	rear seat (5DR; 1996-10-01~1997-08-01)
01550-0816B-000	Bolt	rear seat (5DR; 1996-10-01~1997-08-01)
01550-10203-000	Bolt - Bolt, lower	rear seat (5DR; 1996-10-01~1997-08-01)
01550-1020A-000	Bolt - Bolt, bal sprocket	rear seat (5DR; 1996-10-01~1997-08-01)
01570-08163-000	Bolt - Bolt, upper	rear seat (5DR; 1996-10-01~1997-08-01)
01570-0816A-000	Bolt	rear seat (5DR; 1996-10-01~1997-08-01)
02122-06203-000	Screw	rear seat (5DR; 1996-10-01~1997-08-01)
02122-0620A-000	SCREW	rear seat (5DR; 1996-10-01~1997-08-01)
02122-0620B-000	SCREW	rear seat (5DR; 1996-10-01~1997-08-01)
02142-06163-000	Screw	rear seat (5DR; 1996-10-01~1997-08-01)
02142-0616A-000	SCREW	rear seat (5DR; 1996-10-01~1997-08-01)
03241-05103-000	Screw	rear seat (5DR; 1996-10-01~1997-08-01)
03241-0516A-000	SCREW	rear seat (5DR; 1996-10-01~1997-08-01)
03242-0510B-000	SCREW	rear seat (5DR; 1996-10-01~1997-08-01)
03242-05163-000	Screw	rear seat (5DR; 1996-10-01~1997-08-01)
09148-06005-000	Nut seat moldin	rear seat (5DR; 1996-10-01~1997-08-01)
09148-06008-000	NUT - Nut, adjuster knob	rear seat (5DR; 1996-10-01~1997-08-01)
09387-19001-000	RING	rear seat (5DR; 1996-10-01~1997-08-01)
09443-14015-000	SPRING	rear seat (5DR; 1996-10-01~1997-08-01)
85341-72C10-5PK	GUIDE,HEADRESTRAINT,R	rear seat (5DR; 1996-10-01~1997-08-01)
85840-72C10-5PK	GUIDE,HEADRESTRAINT,L	rear seat (5DR; 1996-10-01~1997-08-01)
86401-56B52-U26	ヘッドレストレイントアッシ,リヤシート	rear seat (5DR; 1996-10-01~1997-08-01)
87105-56BB1-000	CUSHION SUB ASSY,REAR SEAT	rear seat (5DR; 1996-10-01~1997-08-01)
87180-56BB0-J3R	トリム,リヤシートクッション	rear seat (5DR; 1996-10-01~1997-08-01)
87191-56B11-T61	BOARD,RR SEAT CUSH UND	rear seat (5DR; 1996-10-01~1997-08-01)
87196-83000-000	CUSHION	rear seat (5DR; 1996-10-01~1997-08-01)
87198-56B10-000	SCREW,REAR SEAT CUSHION BOARD	rear seat (5DR; 1996-10-01~1997-08-01)
87199-56B10-000	PROTECTOR,RR SEAT LOCK HANDLE	rear seat (5DR; 1996-10-01~1997-08-01)
87210-56BH0-000	HINGE,RR SEAT BACK,R	rear seat (5DR; 1996-10-01~1997-08-01)
87211-60A10-T01	KNOB,RR SEAT RECLINING	rear seat (5DR; 1996-10-01~1997-08-01)
87221-56B11-5PK	COVER,RR SEAT RECLINING LWR,R	rear seat (5DR; 1996-10-01~1997-08-01)
87250-56B10-000	MALE,RR SEAT HNG	rear seat (5DR; 1996-10-01~1997-08-01)
87259-56B10-000	PIN,REAR SEAT HINGE	rear seat (5DR; 1996-10-01~1997-08-01)
87264-56B10-T01	COVER,RR SEAT HINGE MALE	rear seat (5DR; 1996-10-01~1997-08-01)
87270-56B20-000	BAND,RR SEAT STOPPER	rear seat (5DR; 1996-10-01~1997-08-01)
87281-56B10-000	HANDLE,REAR SEAT LOCK	rear seat (5DR; 1996-10-01~1997-08-01)
87292-60A30-000	CUSHION,REAR SEAT STOPPER,NO.2	rear seat (5DR; 1996-10-01~1997-08-01)
87292-65C10-000	CUSHION,REAR SEAT	rear seat (5DR; 1996-10-01~1997-08-01)
87299-56B10-5PK	PROTECTOR,RR CUSH INNER HINGE	rear seat (5DR; 1996-10-01~1997-08-01)
87305-56BF0-000	BACK S/ASSY,RR SEAT,R	rear seat (5DR; 1996-10-01~1997-08-01)
87306-56BH0-000	バックサブアッシ,リヤシート,レフト	rear seat (5DR; 1996-10-01~1997-08-01)
87327-83000-000	COLLAR,SEAT STOPPER BAND	rear seat (5DR; 1996-10-01~1997-08-01)
87380-56BG0-J3R	トリム,リヤシートバック,ライト	rear seat (5DR; 1996-10-01~1997-08-01)
87391-57B10-T02	ボード,リヤシートバックアームレスト(グレー)	rear seat (5DR; 1996-10-01~1997-08-01)
87399-56BF0-5PK	COVER,RR SEAT INNER HINGE	rear seat (5DR; 1996-10-01~1997-08-01)
87401-57B11-U26	アームレストアッシ,リヤシート	rear seat (5DR; 1996-10-01~1997-08-01)
87499-57B11-5PK	カバー,リヤシートアームレストヒンジ(ブラック)	rear seat (5DR; 1996-10-01~1997-08-01)
87610-56BH0-000	HINGE,RR SEAT BACK,L	rear seat (5DR; 1996-10-01~1997-08-01)
87621-56B11-5PK	COVER,RR SEAT RECLINING LWR,L	rear seat (5DR; 1996-10-01~1997-08-01)
87780-56BH0-J3R	トリム,リヤシートバック,レフト	rear seat (5DR; 1996-10-01~1997-08-01)
87789-56B11-000	BOARD,RR SEAT BACK UND	rear seat (5DR; 1996-10-01~1997-08-01)
87799-56B10-000	BUSH,RR SEAT INNER HINGE	rear seat (5DR; 1996-10-01~1997-08-01)
87831-56B11-000	HANGER,RR SEAT STOPPER BAND	rear seat (5DR; 1996-10-01~1997-08-01)
87890-56B10-000	STRIKER,RR SEAT LOCK	rear seat (5DR; 1996-10-01~1997-08-01)
