TD32W

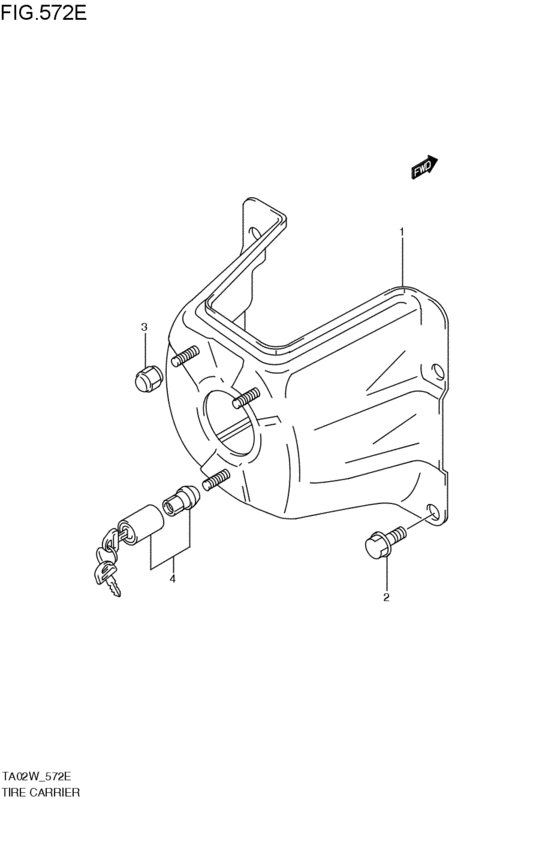

tire carrier (1997-11-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 83961-65D00-000 | CARRIER,SPARE TIRE |
| 2 | 01550-10253-000 | Bolt - Bolt, rr swgarm bracket |
| 2 | 01550-1025B-000 | Bolt - Bolt, rr swgarm bracket, l |
| 2 | 01550-1025A-000 | Bolt - Bolt, drive gear |
| 3 | 09159-12024-000 | NUT |
| 4 | 83900-60820-000 | KEY ASSY,SPARE TIRE NUT LOCK |
| OEM | Part name | Category |
|---|---|---|
| 01550-10253-000 | Bolt - Bolt, rr swgarm bracket | tire carrier (1997-11-01~) |
| 01550-1025A-000 | Bolt - Bolt, drive gear | tire carrier (1997-11-01~) |
| 01550-1025B-000 | Bolt - Bolt, rr swgarm bracket, l | tire carrier (1997-11-01~) |
| 09159-12024-000 | NUT | tire carrier (1997-11-01~) |
| 83900-60820-000 | KEY ASSY,SPARE TIRE NUT LOCK | tire carrier (1997-11-01~) |
| 83961-65D00-000 | CARRIER,SPARE TIRE | tire carrier (1997-11-01~) |
