Search › Model › TD11W
TD11W

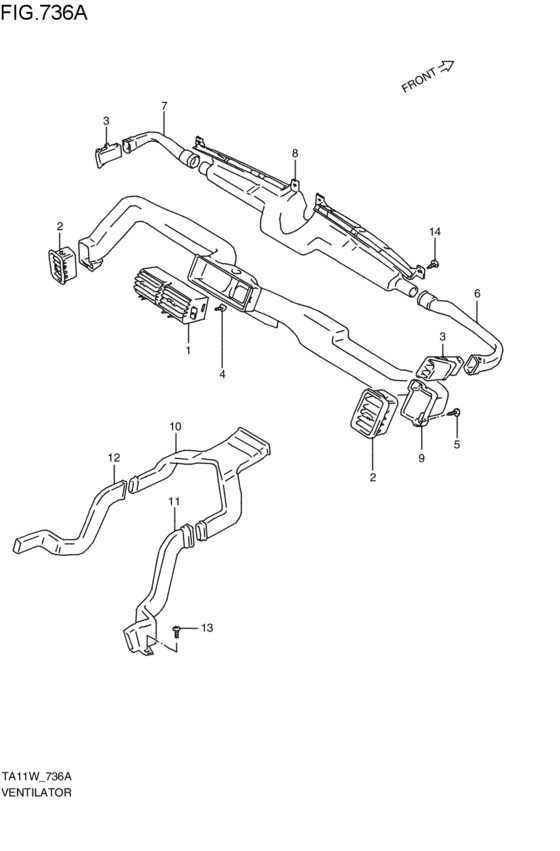

ventilator (1994-11-01~) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-77E00-5PK | LOUVER, CTR VENT (BLACK) |
| 2 | 73620-77E00-5PK | LOUVER,SIDE VENT (BLACK) |
| 3 | 73671-83010-5PK | NOZZLE,SIDE DEFROSTER |
| 4 | 03541-05163-000 | Screw |
| 4 | 03541-0516A-000 | SCREW |
| 6 | 73681-77E00-000 | DUCT,DEMISTER,R |
| 7 | 73691-77E00-000 | DUCT,DEMISTER,L |
| 8 | 74615-60A00-000 | DUCT,DEFROSTER |
| 9 | 74621-77E00-000 | DUCT,VENT |
| 10 | 74631-60A10-000 | DUCT,RR |
| 11 | 74632-60A00-000 | HOSE,RR,R |
| 12 | 74633-60A00-000 | HOSE,RR,L |
| 13 | 03141-05123-000 | Screw 5 x 12 - Tapping screw |
| 13 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| OEM | Part name | Category |
|---|---|---|
| 03141-05123-000 | Screw 5 x 12 - Tapping screw | ventilator (1994-11-01~) |
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | ventilator (1994-11-01~) |
| 03541-05163-000 | Screw | ventilator (1994-11-01~) |
| 03541-0516A-000 | SCREW | ventilator (1994-11-01~) |
| 73610-77E00-5PK | LOUVER, CTR VENT (BLACK) | ventilator (1994-11-01~) |
| 73620-77E00-5PK | LOUVER,SIDE VENT (BLACK) | ventilator (1994-11-01~) |
| 73671-83010-5PK | NOZZLE,SIDE DEFROSTER | ventilator (1994-11-01~) |
| 73681-77E00-000 | DUCT,DEMISTER,R | ventilator (1994-11-01~) |
| 73691-77E00-000 | DUCT,DEMISTER,L | ventilator (1994-11-01~) |
| 74615-60A00-000 | DUCT,DEFROSTER | ventilator (1994-11-01~) |
| 74621-77E00-000 | DUCT,VENT | ventilator (1994-11-01~) |
| 74631-60A10-000 | DUCT,RR | ventilator (1994-11-01~) |
| 74632-60A00-000 | HOSE,RR,R | ventilator (1994-11-01~) |
| 74633-60A00-000 | HOSE,RR,L | ventilator (1994-11-01~) |
