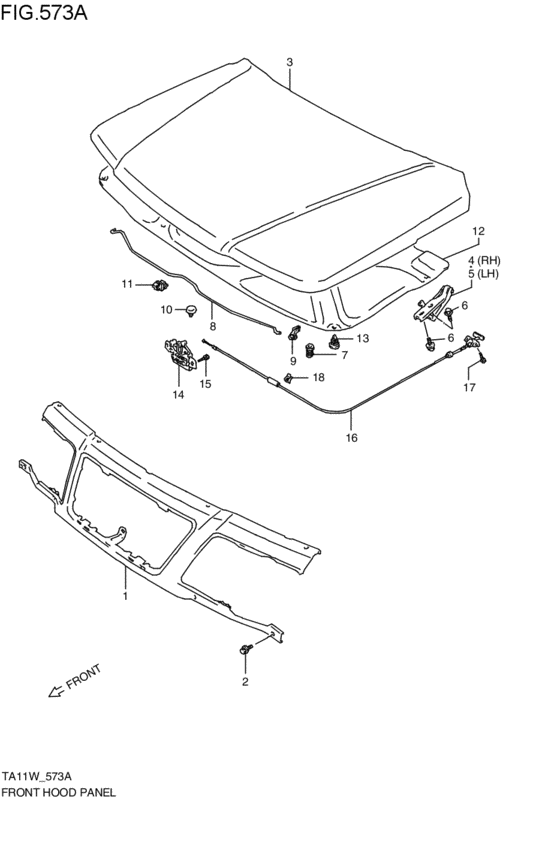

front hood (1994-11-01~)
28
| # | OEM | Part name |
|---|
| 1 |
58110-77E01-000 |
PANEL,FRONT |
| 2 |
02162-06123-000 |
Bolt (6x12) |
| 2 |
02162-0612B-000 |
SCREW - Bolt |
| 2 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 3 |
58300-77810-000 |
PANEL SET FRT HOODR S DOT |
| 3 |
58300-77811-000 |
PANEL SET,FRONT HOOD |
| 4 |
58410-79E00-000 |
HINGE,FR HOOD,R |
| 5 |
58430-60A10-000 |
HINGE SET HOOD LH |
| 5 |
58430-79E00-000 |
HINGE,FR HOOD,L |
| 6 |
01580-06163-000 |
Bolt - Bolt, rear |
| 6 |
01580-0616A-000 |
Bolt |
| 7 |
72372-82000-000 |
CUSHION,BACK DR SIDE |
| 8 |
72431-60A02-000 |
STAY,FRONT HOOD |
| 9 |
09209-14001-000 |
LINKAGE |
| 10 |
09321-10023-000 |
CUSHION |
| 11 |
09403-07311-000 |
CLAMP |
| 12 |
75270-77E00-000 |
SILENCER,FRONT HOOD |
| 13 |
09409-06309-5ES |
CLIP(BLACK) |
| 14 |
82110-77E00-000 |
LATCH |
| 14 |
82110-65D13-000 |
LATCH,HOOD |
| 15 |
01580-06123-000 |
Bolt |
| 15 |
01580-0612B-000 |
Bolt |
| 15 |
01580-0612A-000 |
Bolt |
| 16 |
82160-77E00-000 |
CABLE,HOOD LATCH RELEASE |
| 17 |
02142-05123-000 |
Screw 5x12 |
| 17 |
02142-0512A-000 |
SCREW - Screw, lower |
| 18 |
09408-00026-000 |
CLAMP |
| 18 |
09403-06410-000 |
CLAMP |
| OEM |
Part name |
Category |
| 01580-06123-000 |
Bolt |
front hood (1994-11-01~) |
| 01580-0612A-000 |
Bolt |
front hood (1994-11-01~) |
| 01580-0612B-000 |
Bolt |
front hood (1994-11-01~) |
| 01580-06163-000 |
Bolt - Bolt, rear |
front hood (1994-11-01~) |
| 01580-0616A-000 |
Bolt |
front hood (1994-11-01~) |
| 02142-05123-000 |
Screw 5x12 |
front hood (1994-11-01~) |
| 02142-0512A-000 |
SCREW - Screw, lower |
front hood (1994-11-01~) |
| 02162-06123-000 |
Bolt (6x12) |
front hood (1994-11-01~) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
front hood (1994-11-01~) |
| 02162-0612B-000 |
SCREW - Bolt |
front hood (1994-11-01~) |
| 09209-14001-000 |
LINKAGE |
front hood (1994-11-01~) |
| 09321-10023-000 |
CUSHION |
front hood (1994-11-01~) |
| 09403-06410-000 |
CLAMP |
front hood (1994-11-01~) |
| 09403-07311-000 |
CLAMP |
front hood (1994-11-01~) |
| 09408-00026-000 |
CLAMP |
front hood (1994-11-01~) |
| 09409-06309-5ES |
CLIP(BLACK) |
front hood (1994-11-01~) |
| 58110-77E01-000 |
PANEL,FRONT |
front hood (1994-11-01~) |
| 58300-77810-000 |
PANEL SET FRT HOODR S DOT |
front hood (1994-11-01~) |
| 58300-77811-000 |
PANEL SET,FRONT HOOD |
front hood (1994-11-01~) |
| 58410-79E00-000 |
HINGE,FR HOOD,R |
front hood (1994-11-01~) |
| 58430-60A10-000 |
HINGE SET HOOD LH |
front hood (1994-11-01~) |
| 58430-79E00-000 |
HINGE,FR HOOD,L |
front hood (1994-11-01~) |
| 72372-82000-000 |
CUSHION,BACK DR SIDE |
front hood (1994-11-01~) |
| 72431-60A02-000 |
STAY,FRONT HOOD |
front hood (1994-11-01~) |
| 75270-77E00-000 |
SILENCER,FRONT HOOD |
front hood (1994-11-01~) |
| 82110-65D13-000 |
LATCH,HOOD |
front hood (1994-11-01~) |
| 82110-77E00-000 |
LATCH |
front hood (1994-11-01~) |
| 82160-77E00-000 |
CABLE,HOOD LATCH RELEASE |
front hood (1994-11-01~) |
