| 01421-08503-000 |
Bolt, stud - Stud bolt |

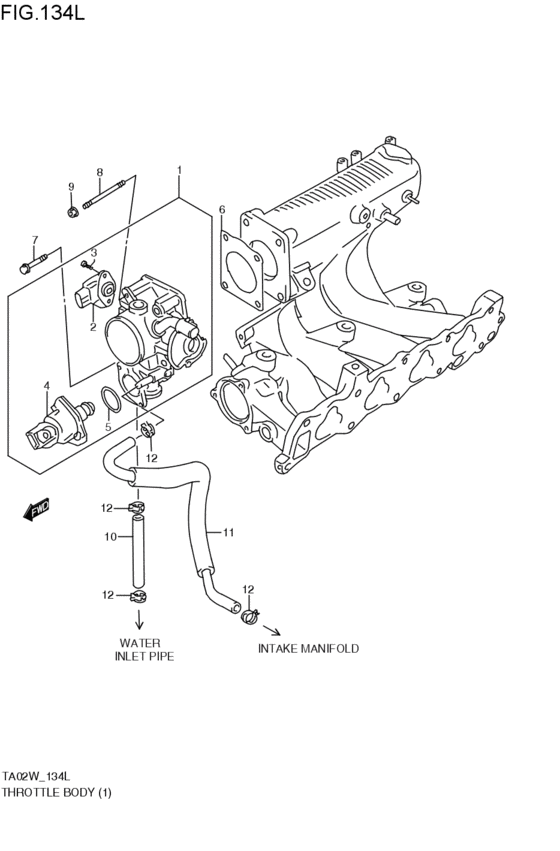

throttle body (G16A; 1997-11-01~2000-03-01) |
| 01421-0850A-000 |
BOLT,STUD |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 01550-08503-000 |
Bolt |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 01550-0850B-000 |
Bolt |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 08316-10083-000 |
Nut |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 08316-1008B-000 |
NUT |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 09352-70131-600 |
HOSE(7X13X600) |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 09356-75141-600 |
HOSE(7.5X14.5X600) |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 09401-12404-000 |
CLIP |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 09401-12410-000 |
CLIP - Clip, filter outlet |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 13400-66D00-000 |
BODY ASSY,THROTTLE |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 13411-65D00-000 |
O-RING,IAC VALVE |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 13420-65D00-000 |
SENSORTHRTL POSITION |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 13420-65D01-000 |
SENSOR,THROTTLE POSITION |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 13421-65D00-000 |
GASKET,THROTTLE BODY |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 13428-65D00-000 |
SCREW,TP-SENSOR |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 13494-66D00-000 |
ホース,ウォータスロットルボディ,アウトレット |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 13494-66D01-000 |
HOSE,WTR THROTTLE BODY OUTLET |
throttle body (G16A; 1997-11-01~2000-03-01) |
| 18137-65D00-000 |
VALVE,IAC |
throttle body (G16A; 1997-11-01~2000-03-01) |
